5-1

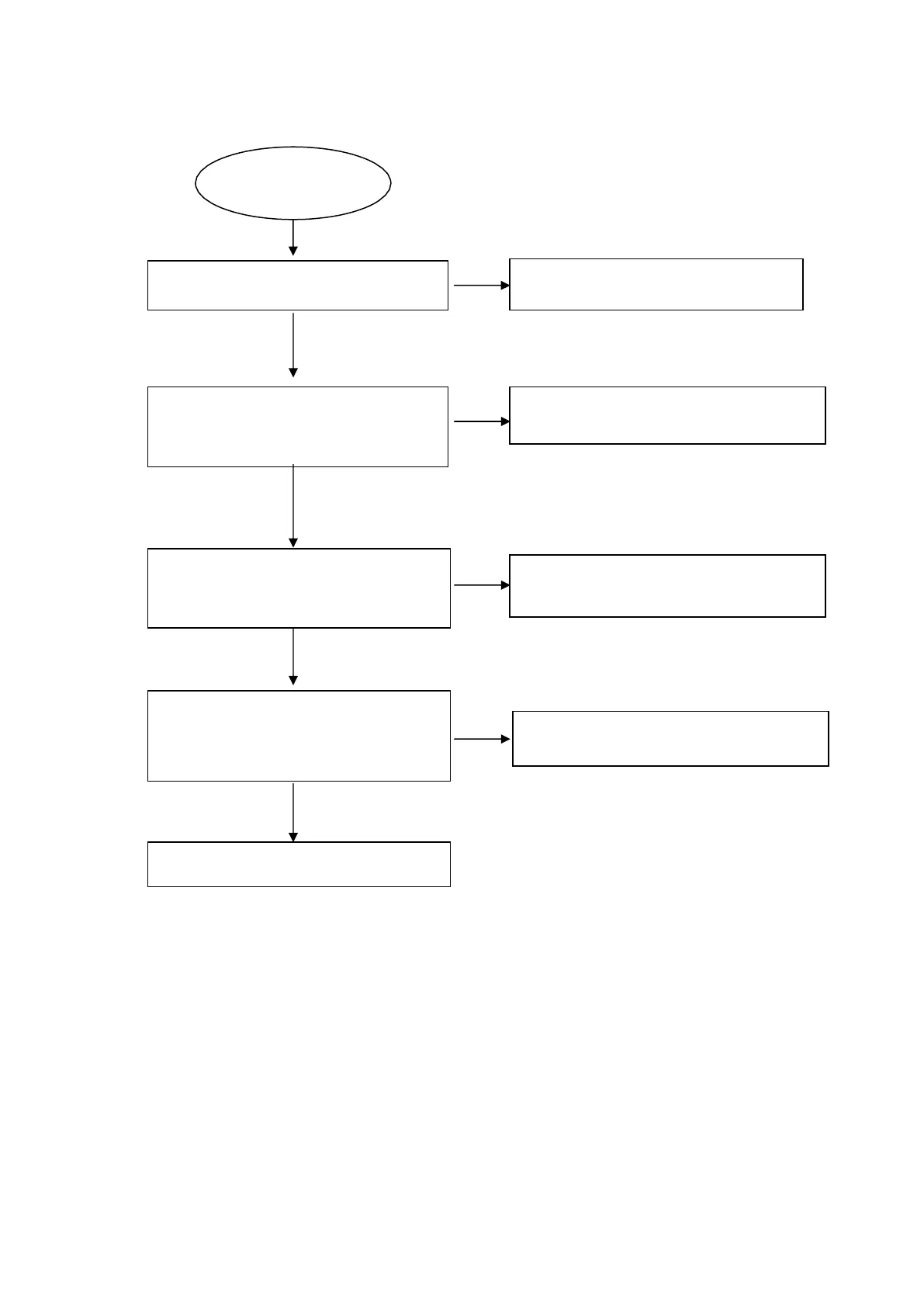

keys do not work
Go
Replace PCBA for main board.
Keys do not work
No
Yes
Yes
No
Yes
No
Yes
No
Replace the BT part or other load parts
Check the main board the BT module
(U9) other supply network load parts
(for example: BT_1.8V).
Check KEY signal from BT module (U9)
in main board.
Check from main board the BAT_3V7
and VCC_3V3 power supply is
normal?
Replace the key board.
Replace the old with the new KEY
board to the EUT working.
Instead of new 15pin line
Check 15pin FFC cable (XP701) to main
board of connect yes or not.?

Other manuals for Harman Kardon ONYX STUDIO 4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harman Kardon ONYX STUDIO 4 and is the answer not in the manual?

Harman Kardon ONYX STUDIO 4 Specifications

General IconGeneral
Bluetooth version4.2
Output power4 x 15W (AC mode); 4 x 7.5W (Battery mode)
Battery type3.7V/3000mAh Lithium-ion
Battery charge time5 hours
Music playing timeUp to 8 hours
Frequency response50Hz – 20kHz (-6dB)
Signal-to-noise ratio80dB A-weighted
Weight2061g
Supported profilesA2DP 1.3, AVRCP 1.6, HFP 1.6
Power supply19V/2A
BrandHarman Kardon
ModelONYX STUDIO 4
Product TypePortable Bluetooth Speaker
Wireless ConnectivityBluetooth
Water ResistanceNo
Built-in MicrophoneYes
Auxiliary InputYes (3.5mm)
Color OptionsBlack, Blue, White
Transducers2 x Woofer 75mm, 2 x Tweeter 20mm
Driver SizeWoofer 75mm, Tweeter 20mm
