Service Parts
Absolute 43
Beginning Manufacturing Date: March 2015
Ending Manufacturing Date: Active
IMPORTANT:THISISDATEDINFORMATION.Partsmustbeorderedfromadealer
or distributor. Hearth and Home Technologies does not sell directly to consum-
ers.Providemodelnumberandserialnumberwhenrequestingservicepartsfromyour
dealer or distributor.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
26 ESPProbe-Red/Red 3-20-00844 Y
27 Blower,100CFMTransow120V Qty2req 3-21-07775 Y
28 RearCover,Left 1-00-777615 Y
29 DifferentialSwitch 3-20-6866 Y
Tubing,1/8Silicone 5Feet 1-00-5113574 Y
30 RearCover,Right 1-00-777613 Y
31 FeederAssembly
31.1 FeederBody 1-10-777513A Y
31.2 SlidePlateAssembly 1-10-777690A Y
31.3 FeedCover&Gasket 2Sets 1-00-677122 Y
31.4 PusherArm 1-10-677187W Y
PillowBlock Pkgof4 3-31-3614087-4 Y
31.5 Auger 3-50-00565 Y
31.6 BearingRetainerw/Hardware 1-00-04035 Y
Cam Bearing 3-31-3014 Y
31.7 CamBlockAssembly 1-10-777620A Y
31.8 4RPMCWOutboardMotor,120V 3-20-00677 Y
31.9 MotorMountw/Hardware
1-00-777598 Y
31.10 FeederCrossoverTubeKit 1-00-67900 Y
31.11 Gasket,Snout Pkgof10 3-44-677160-10 Y
31.12 AirIntake 1-10-06810A
31.13 Gasket,AirIntake Pgkof6 3-44-72224-6 Y
Additional service parts on following page.

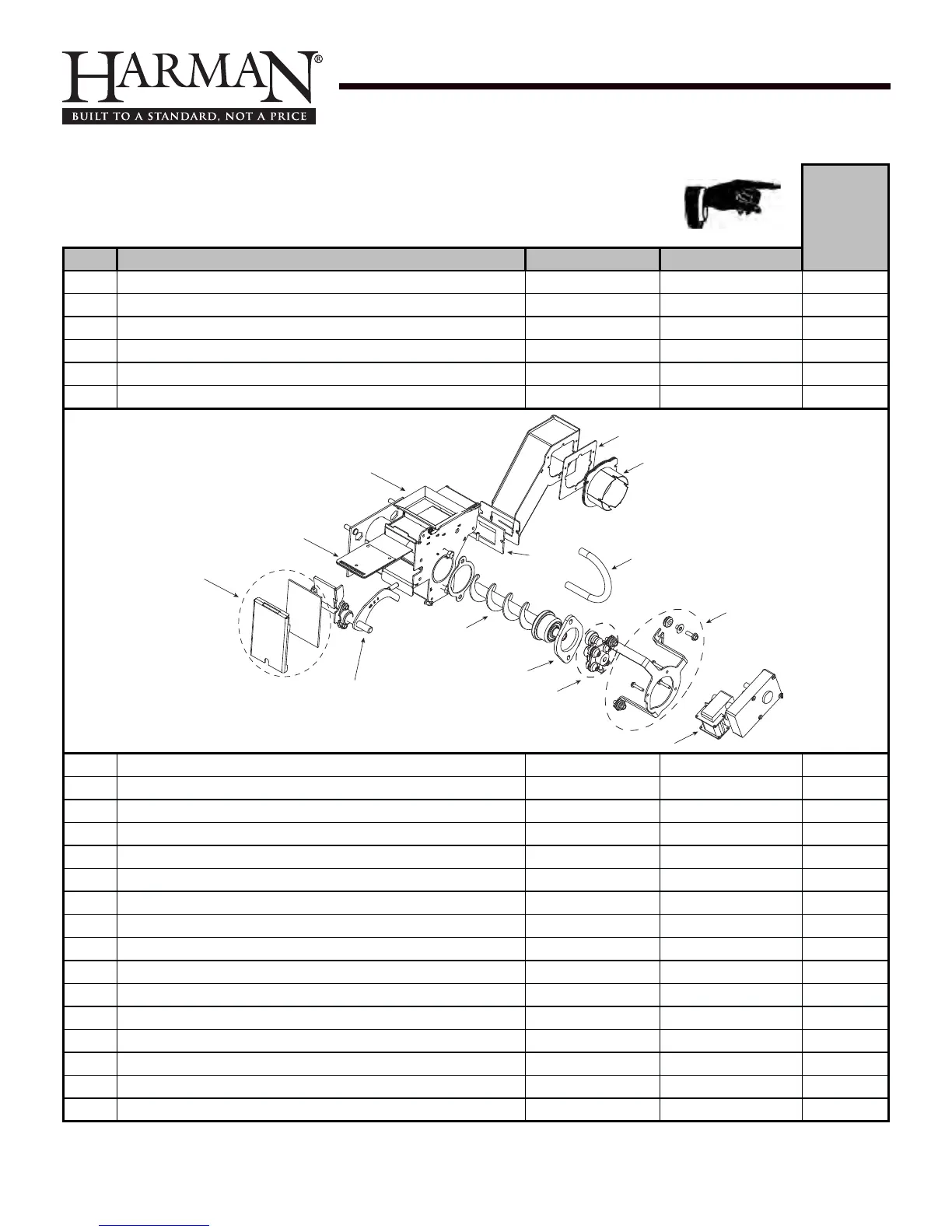

#31 Feeder Assembly
31.1
31.2
31.3
31.4
31.5
31.6
31.7
31.8
31.9
31.10
31.11
31.12
31.13
