13
ZonePRO
TM
VOLUME
ZC-6

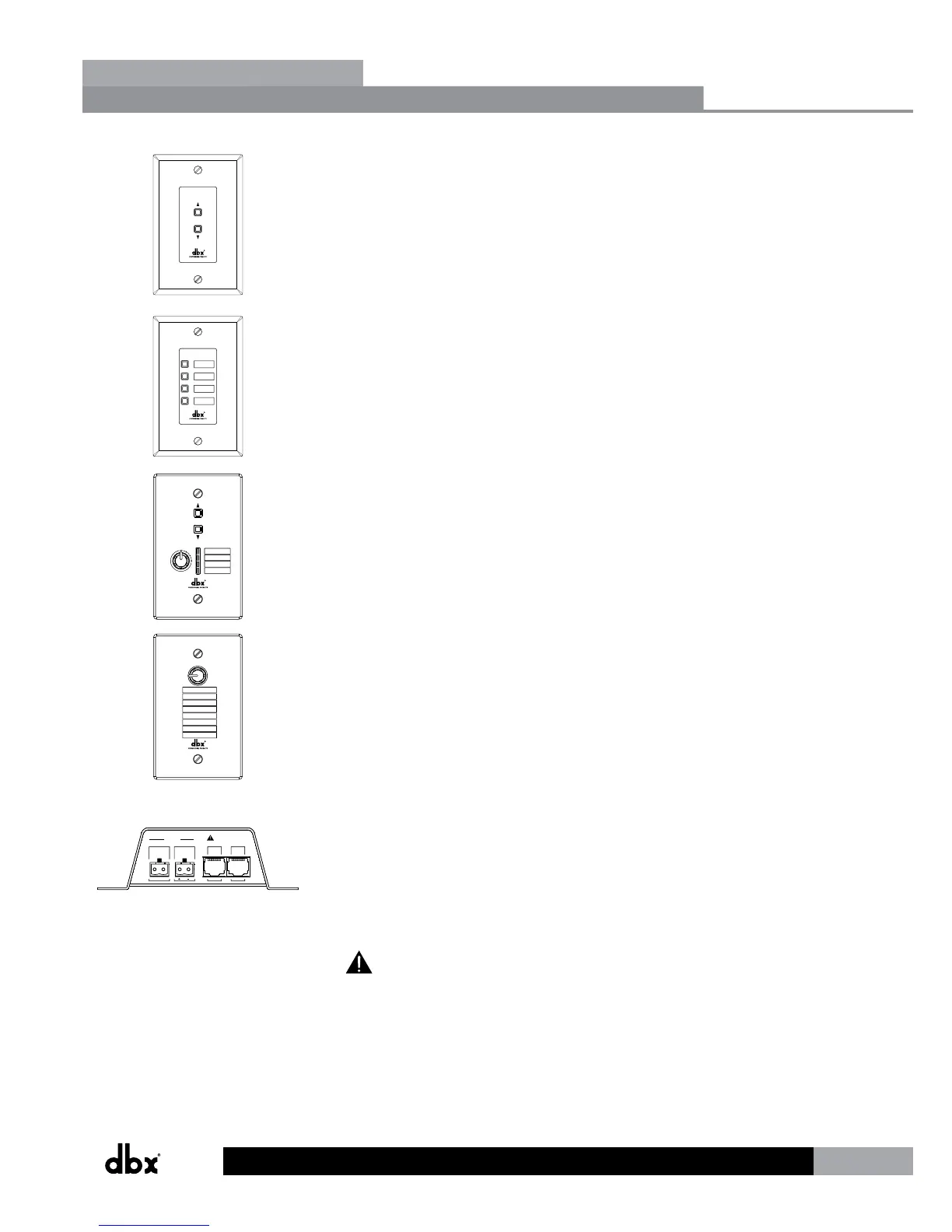

ZC-6 – The ZC-6 is a push-button up/down input or output volume controller.
ZC-7
A
B
C
D
ZC-7 – The ZC-7 is a programmable zone controller that allows control of page steering via
four momentary push buttons. The ZC-7 has 5 states: button A pressed, button B pressed,
button C pressed, button D pressed, and “no button pressed” being the 5th state.
ZC-8
A
B
C
D
A
B
C
D
SELECT
VOLUME
ZC-8 – The ZC-8 is used for combination up/down output volume control and four position
source selection control.
ZC-9
A
B
C
D
E
F
G
H
A
B
C
D E
F
G
H
ZC-9 – The ZC-9 provides source selection control via an eight position rotary selector.
IN
OUT
INPUTS
RJ45 - CONNECT ONLY TO
ZONE CONTROLLER INPUT
RELAY/
SWITCH
CLOSURE
CONTROL
VOLTAGE
5-24 VDC
ZC-FIRE – The ZC-FIRE is the interface to generic fire alarm relays. When the fire alarm
activates, the general purpose relay can typically be programmed to close if normally
open or vices-versa. The ZC-FIRE interface unit monitors the state of the relay (n.o. or
n.c.) and upon the state of change, notifies the ZonePRO to mute the outputs or load a
pre-programmed “Fire” scene. Control Voltage (5-24 VDC) can also be used for triggering the
ZC-FIRE.
The ZC-FIRE must be assigned as ID#2 and connected to the ZonePRO’s top ZC
Input connector for fire control.
Section 4
Zone Controllers
