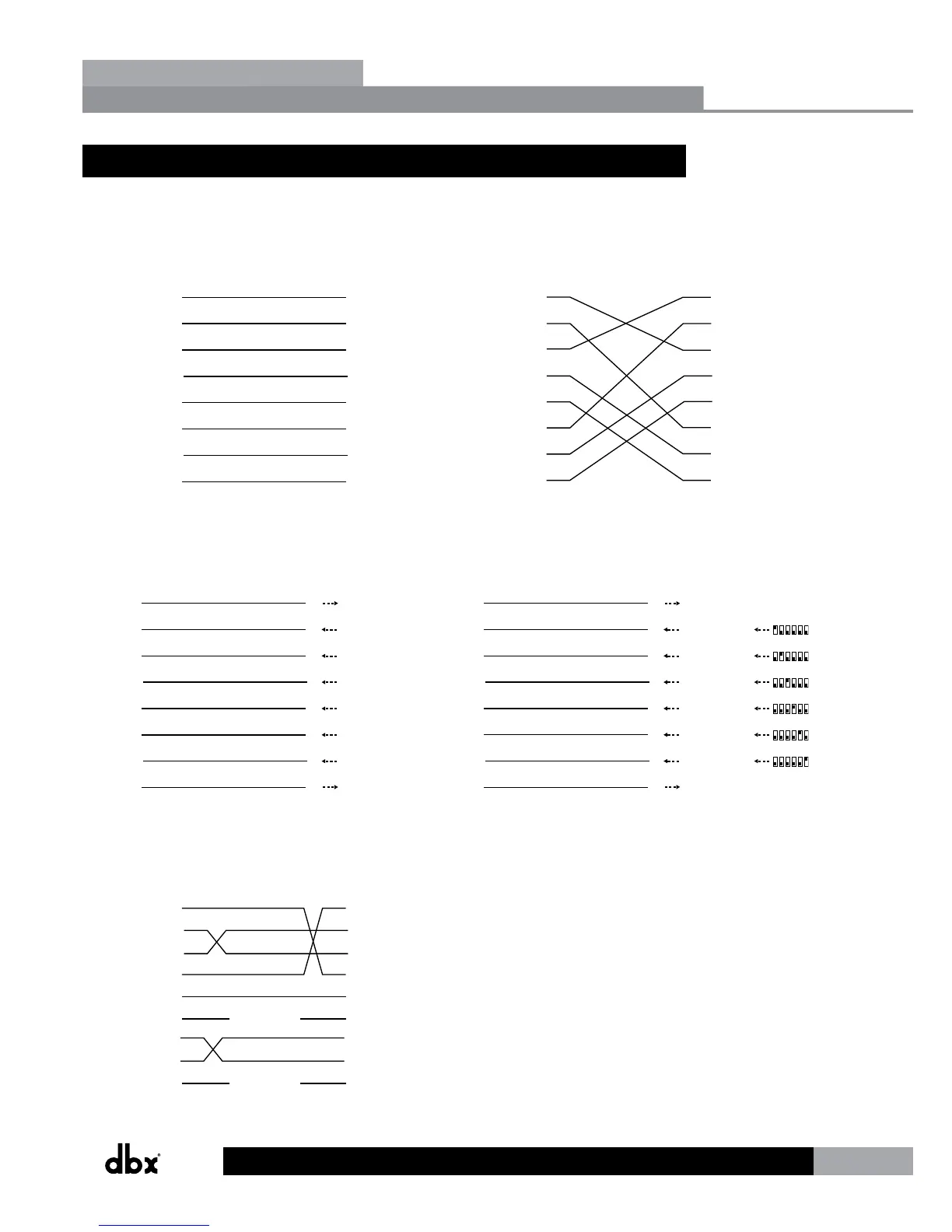

8.8 Wiring Diagrams
RJ-45
(8-Position)
RJ-45
(8-Position)
8 8
Brown
1 1
White / Orange
2 2
Orange
3 3
White / Green
4 4
Blue
5 5
White / Blue
6 6
Green
7 7
White / Brown
TIA/EIA 568B Straight-Through
Cat 5 Ethernet Cable
TIA/EIA 568B Crossover
Cat 5 Ethernet Cable
RJ-45
(8-Position)
RJ-45
(8-Position)
8 8
Br
Br
1 1
Wh/Or
Wh/Or
2 2
Or
Or
3 3
Wh/Gr
Wh/Gr
4 4
Bl
Bl
5 5
Wh/Bl
Wh/Bl
6 6
Gr
Gr
7 7
Wh/Br
Wh/Br
Link I/O Cable Specications:
Cat 5 Cable / 4-Twisted Pairs of 24 AWG Wire / 568B Standard
RJ-45
(8-Position)
RJ-45
(8-Position)
8 8
Brown
Ground
1 1
White / Orange
Voltage Reference
2 2
Orange
ML1 Input
3 3
White / Green
ML2 Input
4 4
Blue
S1 Input
5 5
White / Blue
S2 Input
6 6
Green
S3 Input
7 7
White / Brown
S4 Input
Zone Controller Cable Specications:
Cat 5 Cable / 4-Twisted Pairs of 24 AWG Wire / 568B Standard
RJ-45
(8-Position)
RJ-45
(8-Position)
ON
1 2 3 4 5
6
ON
1 2 3 4 5
6
ON
1 2 3 4 5
6
ON
1 2 3 4 5
6
ON
1 2 3 4 5
6
ON
1 2 3 4 5
6
8 8
Brown
Ground
1 1
White / Orange
Voltage Reference
2 2
Orange
Controller 1/7
3 3
White / Green
Controller 2/8
4 4
Blue
Controller 3/9
5 5
White / Blue
Controller 4/10
6 6
Green
Controller 5/11
7 7
White / Brown
Controller 6/12
Null Modem Cable
DB9
(Female)
DB9
(Female)
8 8
9 9
1 1
2 2
3 3
4 4
5 5
6 6
7 7
