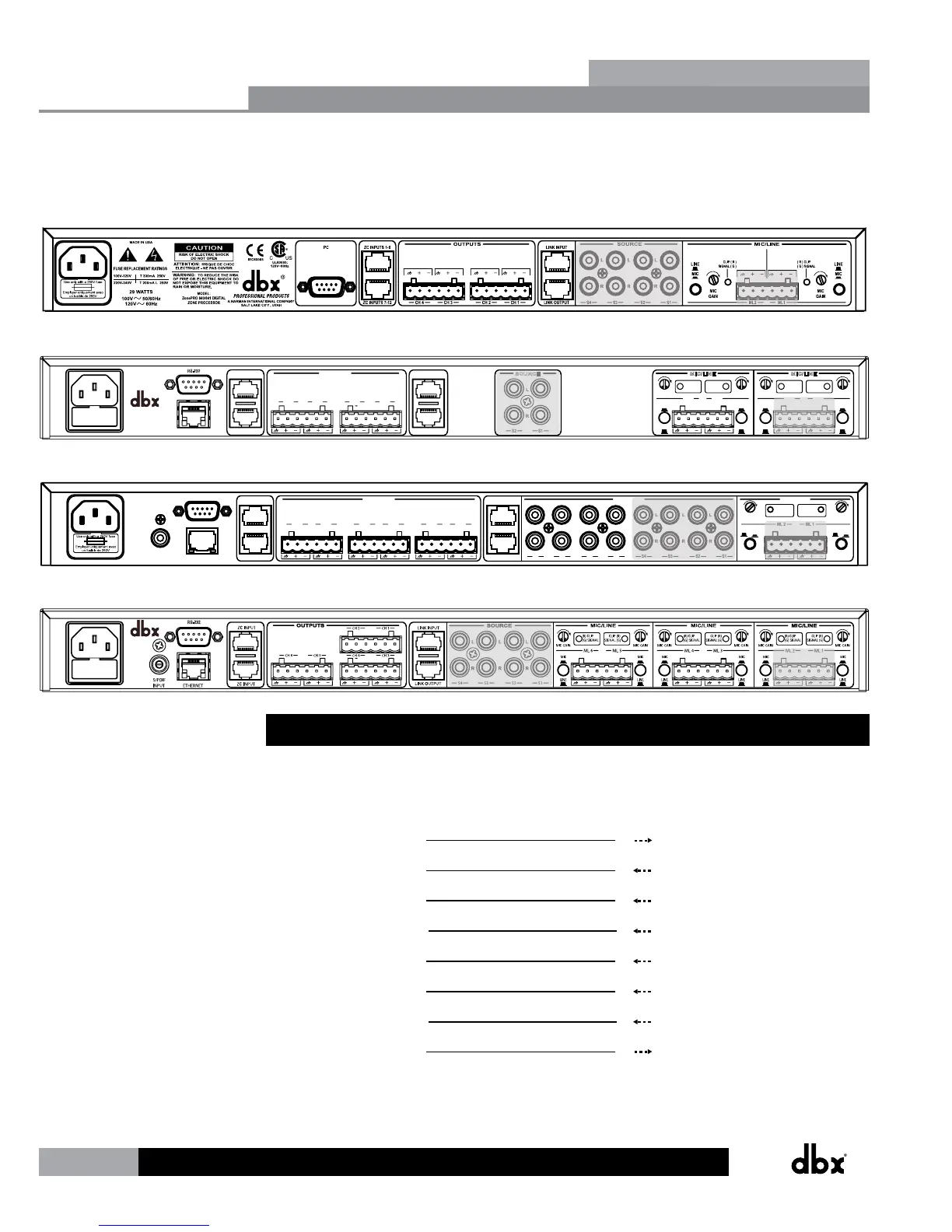

The below illustrations highlight which inputs can be sent and received through the Link Bus
for each ZonePRO model.
640/641(Link Bus Send/Receive = ML1, ML2, S1, S2, S3, S4)
640m/641m (Link Bus Send/Receive = ML1, ML2, S1, S2)
OUTPUTS
LINK INPUTZC INPUT
ZC INPUT
LINK OUTPUT
RS-232
ETHERNET
CH 3CH 4 CH 1CH 2
SOURCE
R
L
S2 S1
ML 2 ML 1
MIC/LINE
MIC GAIN MIC GAIN
MIC
LINE
MIC
LINE
(R) CLIP
(G) SIGNAL
CLIP (R)
SIGNAL (G)
ML 4 ML 3
MIC/LINE
MIC GAIN MIC GAIN
MIC
LINE
MIC
LINE
(R) CLIP
(G) SIGNAL
CLIP (R)
SIGNAL (G)
1260/1261 (Link Bus Send/Receive = ML1, ML2, S1, S2, S3, S4)
ZC INPUT
ZC INPUT
OUTPUTS
SOURCE MIC/LINE
MIC GAIN MIC GAIN
MIC
LINE
MIC
LINE
PC
10/100 BaseT
S/PDIF
INPUT
LINK INPUT
LINK OUTPUT
(R) CLIP
(G) SIGNAL
CLIP (R)
SIGNAL (G)
RR R RR R R
LL L LL L L
S8 S7 S6 S4 S2S5 S3 S1
CH 6 CH 5 CH 3 CH 2 CH 1 ML 2 ML 1CH 4
1260m/1261m (Link Bus Send/Receive = ML1, ML2, S1, S2, S3, S4)
RS-232
5.3 Link I/O Wiring
Link I/O Cable Specications:
Cat 5 Cable / 4-Twisted Pairs of 24 AWG Wire / 568B Standard
RJ-45
(8-Position)
RJ-45
(8-Position)
8 8
Brown
Ground
1 1
White / Orange
Voltage Reference
2 2
Orange
ML1 Input
3 3
White / Green
ML2 Input
4 4
Blue
S1 Input
5 5
White / Blue
S2 Input
6 6
Green
S3 Input
7 7
White / Brown
S4 Input
