CAUTION: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you
are qualified to do so. Refer all servicing to qualified service personnel.
Disconnect mains power before servicing.

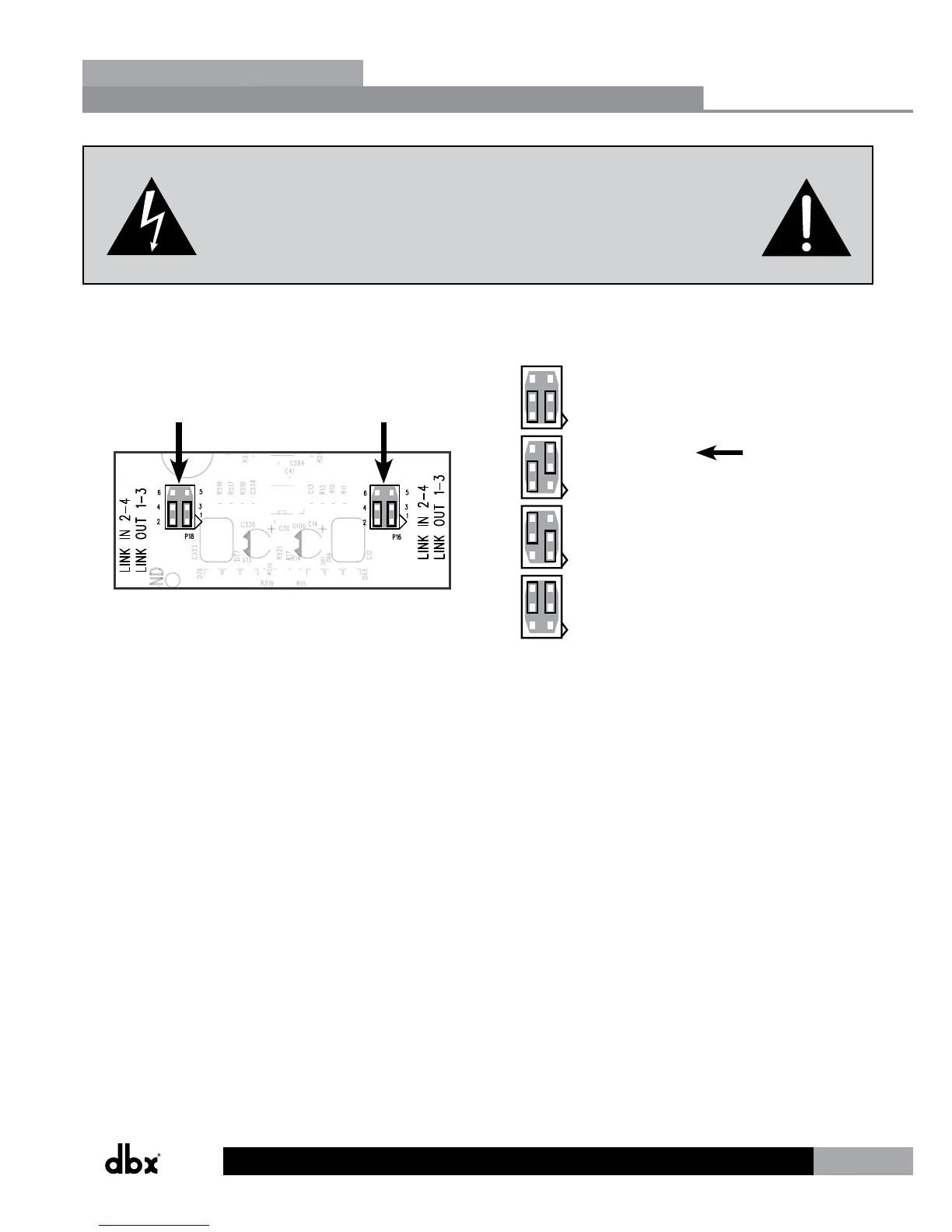

To Enable or Disable the Link Input or Link Output for the ML1 and/or ML2 inputs, match the
jumpers to the desired positions.
P13 = ML2
(P16 = ML2 in 640/641)
P12 = ML1
(P18 = ML1 in 640/641)
Link Out Enabled
Link In Enabled
Link Out Enabled
Link In Disabled
Link Out Disabled
Link In Enabled
Link Out Disabled
Link In Disabled
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
Jumper Positions
Section 5
Link I/O
