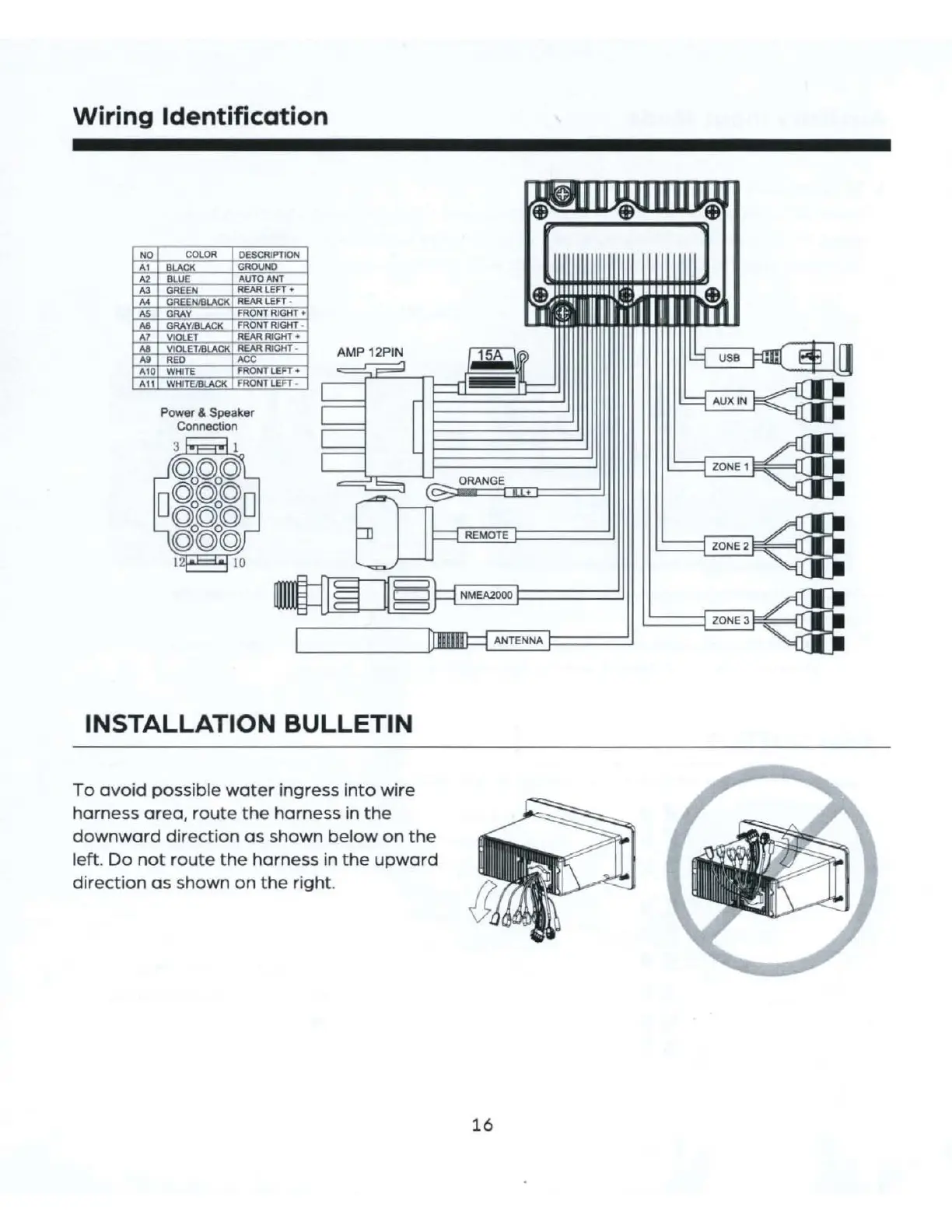

Wiring Identification
NO
Al
A2
A3
M
A5
A6
A7
NJ
M
A1 0
A11
C OlOR DESCRI PTION
BlACK
GROUND
BLUE
AUTO ANT
G RE EN
REAR LEFT •
GREEN/BlACK
REAR LEFT ·
GRAY
FRON T RI GHT•
G RAY/BlA CK
FRONT RI GHT ·
VI OLET REAR RIGHT•
VI OLET/BlACK REAR RIGHT -
RED
AC C
WHITE
FRONT LEFT +
WHITE/BlACK
FRONT LEFT •
Pow er & Speaker
Connection
AMP 12PIN
INSTALLATION BULLETIN
To avoid possible water ingress into wire
harness area , route the harness in the
downward direction as shown below on the
left . Do not route the harness in the upward
direction as shown on the right.
AUXIN
Z ONE 1
