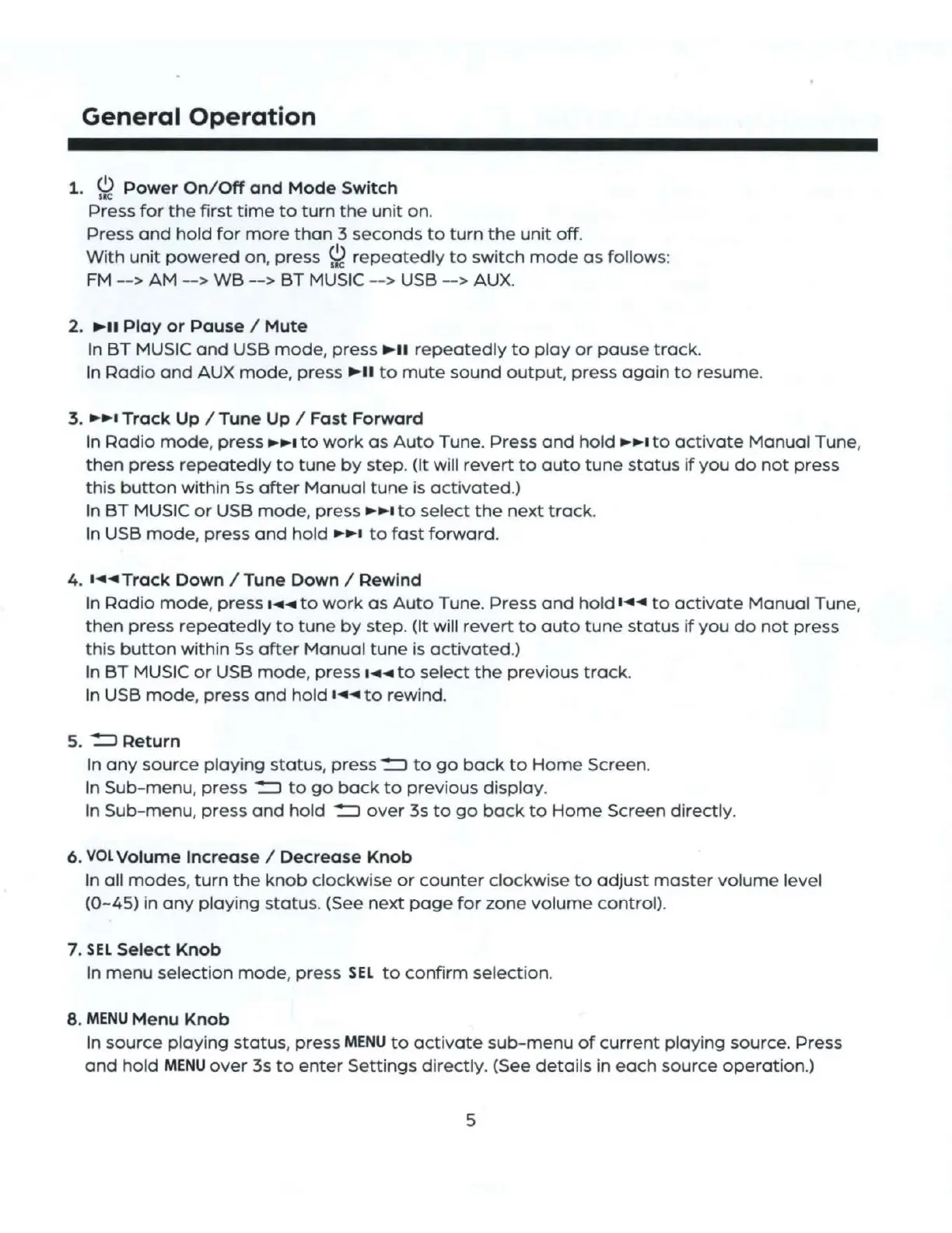

General Operation
1. ~ Power On / Off and Mode Switch
Press for the first time to turn the unit on .
Press and hold for more than 3 seconds to turn the unit off .
With unit powered on, press ~ repeatedly to switch mode as follows:
FM - > AM --> WB --> BT MUSIC --> USB -- > AUX.
2. ► II Play or Pause / Mute
In BT MUSIC and USB mode , press ► II repeatedly to play or pause track .
In Radio and AUX mode, press ► II to mute sound output , press again to resume .
3. ►►• Track Up / Tune Up / Fast Forward
In Radio mode , press ►►• to work as Auto Tune. Press and hold ►►• to acti v ate Manual Tune ,
then press repeatedly to tune by step . (It will revert to auto tune status if you do not press
this button within Ss after Manual tune is act i vated .)
In BT MUSIC or USB mode, press ►►• to select the next track .
In USB mode , press and hold ►►• to fast forward .
4. • ◄◄ Track Down /Tu ne Down / Rewind
In Radio mode, press 1 ◄◄ to work as Auto Tune. Press and hold • ◄◄ to activate Manua l Tune,
then press repeatedly to tune by step. (It will revert to auto tune status if you do not press
this button within Ss after Manual tune is activated .)
In BT MUSIC or USB mode , press • ◄◄ to select the previous track .
In USB mode , press and hold • ◄◄ to rewind.
5. -=::l Aeturn
In any source play i ng status , press -=::J to go back to Home Screen.
In Sub-menu, press -=::J to go back to previous display .
In Sub-menu , press and hold -=::J over 3s to go back to Home Screen directly .
6. VOL Volume Increase / Decrease Knob
In all modes , turn the knob clockwise or counter clockwise to adjust master volume level
(0-45) in any playing status . (See next page for zone volume contro l).
7. SEL Select Knob
In menu selection mode , press SEL to confirm sel ection .
8. MENU Menu Knob
In source playing status , press MENU to activate sub-menu of current play i ng source. Press
and hold MENU over 3s to enter Settings directly . (See detai ls in each source operation .)
