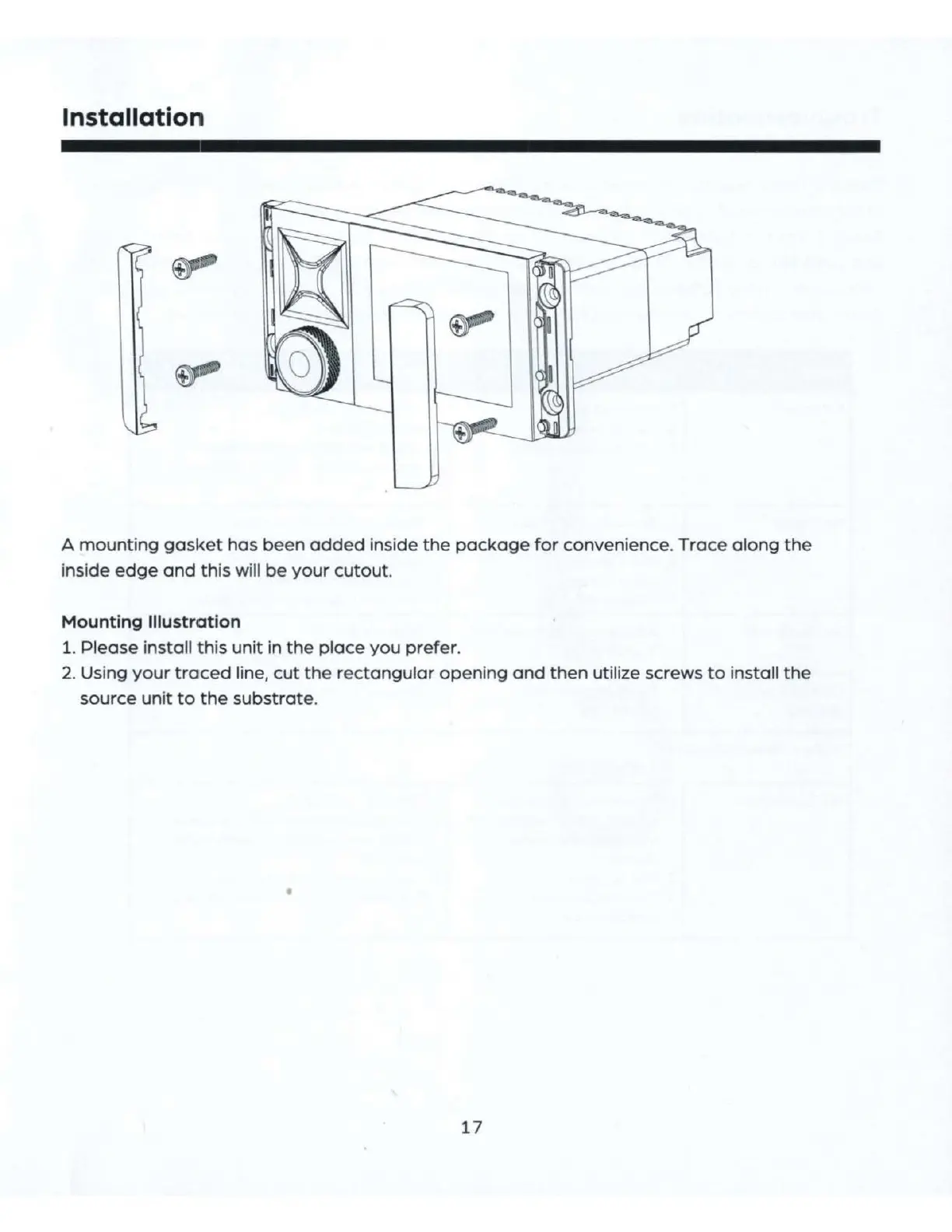

Installation
A
mounting
gasket
has
been
added
inside
the
package
for
convenience.
Trace
along
the
inside
edge
and
this will
be
your
cutout.
Mounting Illustration
1. Please install
this
unit
in
the
place
you
prefer
.
2. Using
your
traced
line,
cut
the
rectangular
opening
and
then
utilize screws
to
install
the
source
unit
to
the
substrate
.
•
17
