Harman JBL-R4500 User Manual

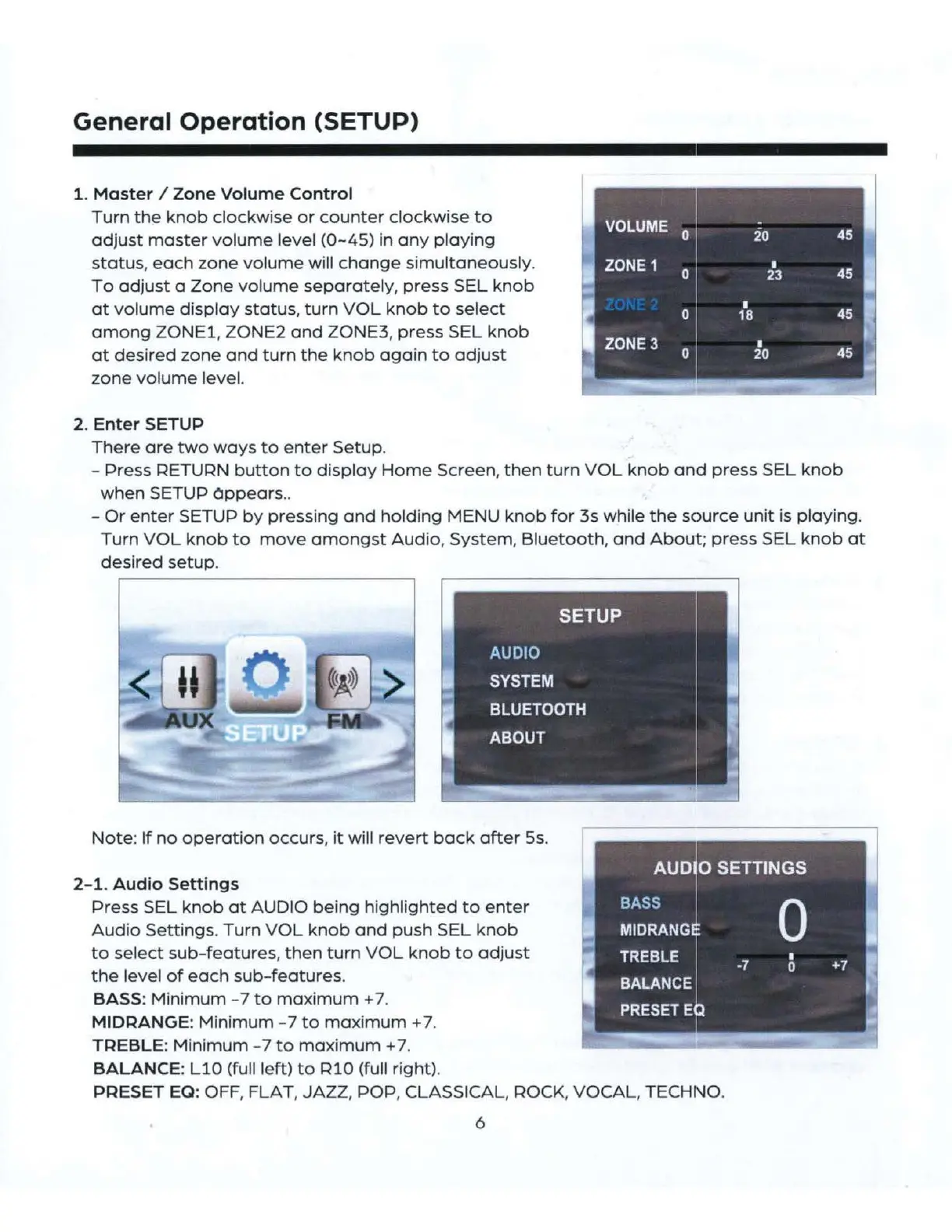

General Operation (SETUP)
1. Master / Zone Volume Control
Turn the knob clockwise or cou nter clockwise to
adjust master volume level (0-45) in any playing
status, each zone volume will change simultaneously.
To adjust a Zone vo lume separately , press SEL knob
at volume display status, turn VOL knob to select
among ZONE1, ZONE2 and ZONE3, press SEL knob
at desired zone and turn the knob again to adjust
zo ne volume level.
2. Enter SETUP
There are two ways to enter Setup.
VOLUME
0 1
ZONE 1
0
0
ZONE3
o,
I
-
20
45
I
45
23
I
45
18
I
45
20
- Press RETURN button to displa y Home Screen, then turn VO L knob and press SEL knob
when SETUP 0ppears ..
- Or enter SETUP by pressing and holding MENU knob for 3s while the source unit is playing.
Turn VOL knob to move amongst Audio , System, Bluetooth, and About; pre ss SEL knob at
desired setup .
Not e: If no operation occurs , it will revert back after Ss.
2-1 . Audio Settings
Press SEL knob at AUDIO being highlighted to enter
Audio Settings . Turn VOL knob and push SEL knob
to select sub- features, then turn VOL knob to adjust
the level of each sub-features.
BASS: Minimum - 7 to ma x imum + 7.
MIDQANGE : Minimum -7 to maximum +7 .
TQEBLE: Minimum-7 to maximum +7 .
BALANCE: L10 (full l eft) to R10 (full right).
AUD~O SETTINGS
BASS 0
MIDRANGE
TREBLE
BALANCE '
PRESET EQ
I
-7
I
0
PQESET EQ : OFF, FLAT, JAZZ, POP, CLASSICAL, ROCK, VOCAL , TECHNO.
6
+7
