Harman P43 - Page 39

Harman® • P-Series Owner’s Manual_R1 • 03/1439 3-90-436168c

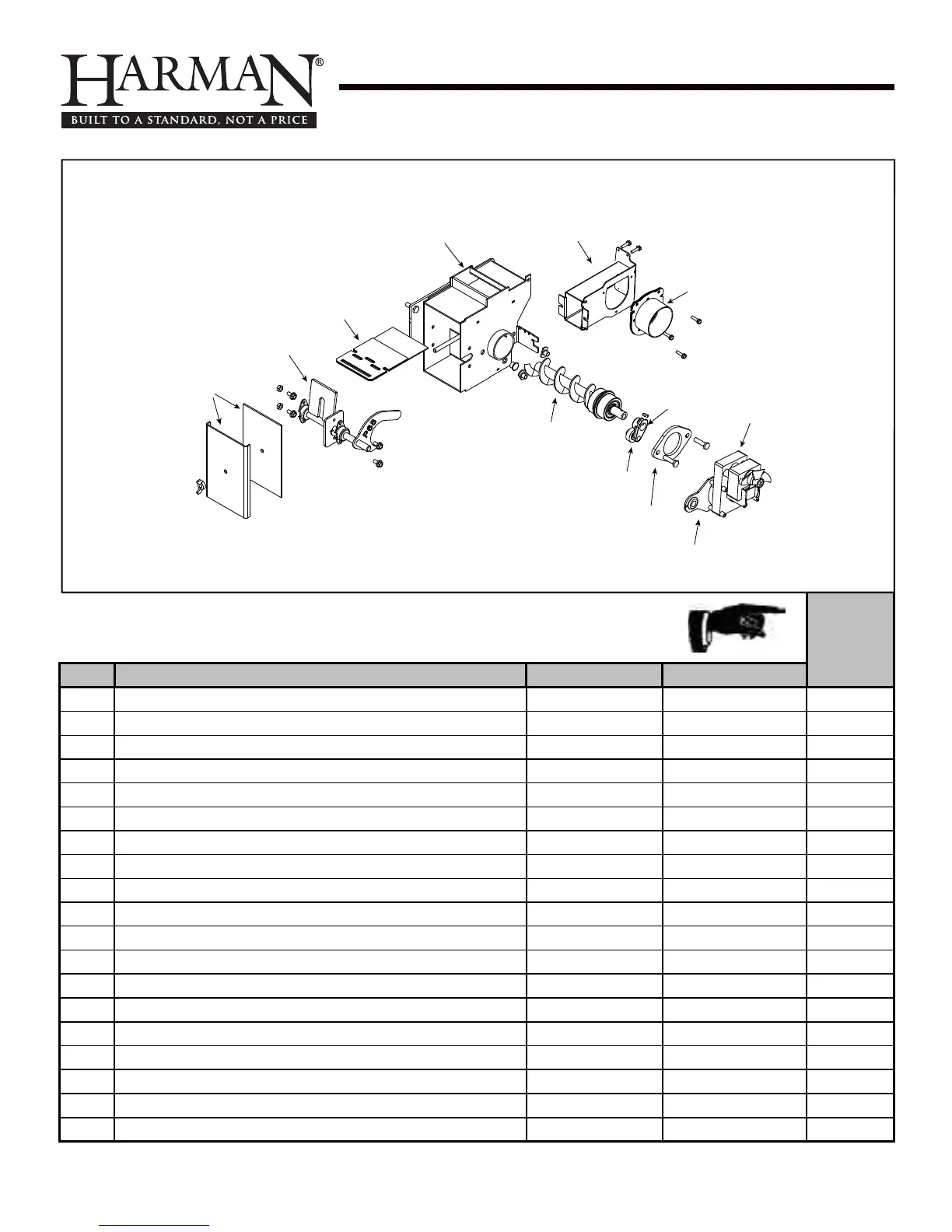

Service Parts
P68 Pellet
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
#2 Pre Serial Number 008280309 Feeder Assembly
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
2.1
2.2
IMPORTANT:THISISDATEDINFORMATION.Partsmustbeorderedfromadealerordistributor.
Hearth and Home Technologies does not sell directly to consumers.Providemodelnumber
andserialnumberwhenrequestingservicepartsfromyourdealerordistributor.
Stocked
at Depot
ITEM Description COMMENTS PART NUMBER
2 FeederAssembly Pre008280309 1-10-07806
2.1
AirIntakeDamperAssembly 1-10-06466W
2.2
AirIntakeWeldment 1-10-06461
2.3
FeederWeldment 1-10-677150 Y
2.4
SlidePlateAssembly 1-10-08037 Y
2.5
PusherArmAssembly 1-10-06719 Y
2.6
FeedCoverandGasket 2Sets 1-00-677152 Y
2.7
AugerAssembly 3-50-00465 Y
2.8
CamBearing 3-31-3014 Y
2.9
BearingFlangew/Hardware 1-00-04035
Y
2.10
Bracket,GearMotor Pkgof2 1-00-01534 Y
2.11
GearMotor,4RPM 3-20-60906 Y
FanBlade,FeedMotor
Pkgof3 3-20-2046399-3 Y
2.12
CastCamBlock 3-00-00153 Y
FeederAirCrossoverKit 1-00-67900 Y
FeederRepairKit 1-00-677150 Y
Gasket,Feeder,AirIntake Pkgof6 3-44-72224-6 Y
MotorBracketGrommet Pkgof12 3-31-2761-12
PillowBlock Pkgof4 3-31-3614087-4 Y
Additionalservicepartsonfollowingpage.
