Vi3000 USER MANUAL
4.1 4.1: Hardware > Local I/O
4.1: Hardware > Local I/O

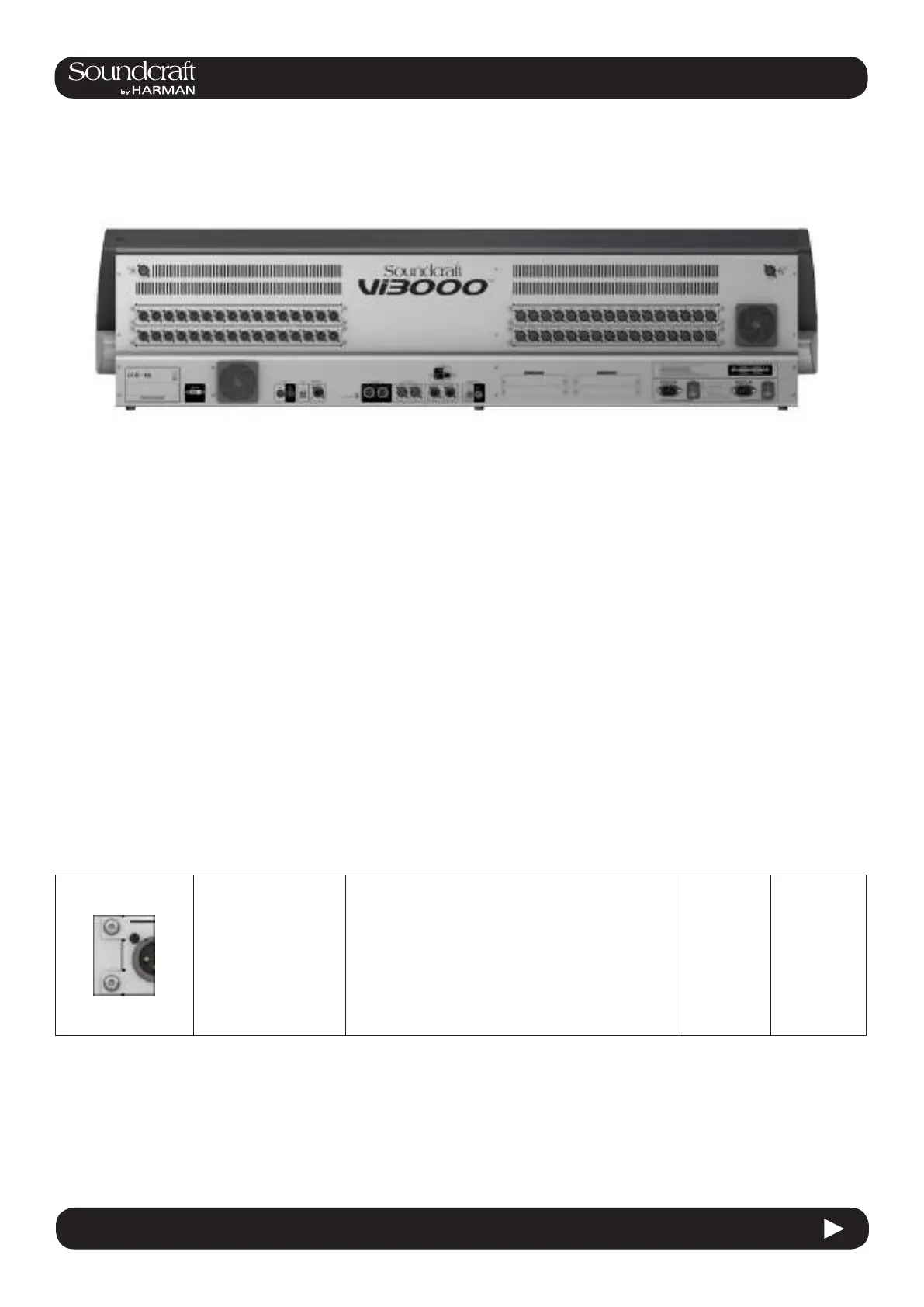

Most of the Vi3000 local I/O is located on the rear panel of the console. The main I/O slots have a variety of possible
congurations, inlcuding digital (AES) and analogue input and output cards. However, the monitor / masters output
section cannot be changed - this contains the xed-routing Monitor A and Monitor B outputs, plus the master LCR
analogue outputs.
There are also user-congurable D21m I/O expansion slots that can accept any of the available Soundcraft D21m
compatible I/O cards. Options for these include MADI (Optical or CAT 5), ADAT, Blu Link, Aviom, Ethersound, Co-
branet, Line in, line out, AES/EBU, and mic in. The D21m IO Expansion slots are also used for connecting a Sound-
craft Stagebox.
Fixed I/O on the rear panel includes all data/digital connections such as MIDI, USB, HiQnet, AES I/O, DANTE, MADI,
Word Clock, and DVI Out, plus the dual redundant power supply connections.
There are also two 12v lamp connections.
The control surface of the console features two additional USB sockets and a talkback microphone XLR connection.
Hardware - Local I/O
Main I/O Slots
The main local I/O slots.
The monitor / masters output section cannot be changed
(bottom left of the main picture) as this contains the
xed-routing Monitor A and Monitor B outputs, plus the
master LCR analogue outputs.
Conguration options for the other slots are: 32 mic in/32
line outs, 48 mic in / 16 line out (the upper line out card
is replaced by a mic in 33-48 card), 16 mic in / 16 in 16
out AES / 16 line out (the mic in 1-16 card is replaced by
a blank, the upper line out module 1-16 is replaced by a
16 in 16 out AES module).
