Vi3000 USER MANUAL
4.1 4.1: Hardware > Local I/O
4.1: Hardware > Local I/O

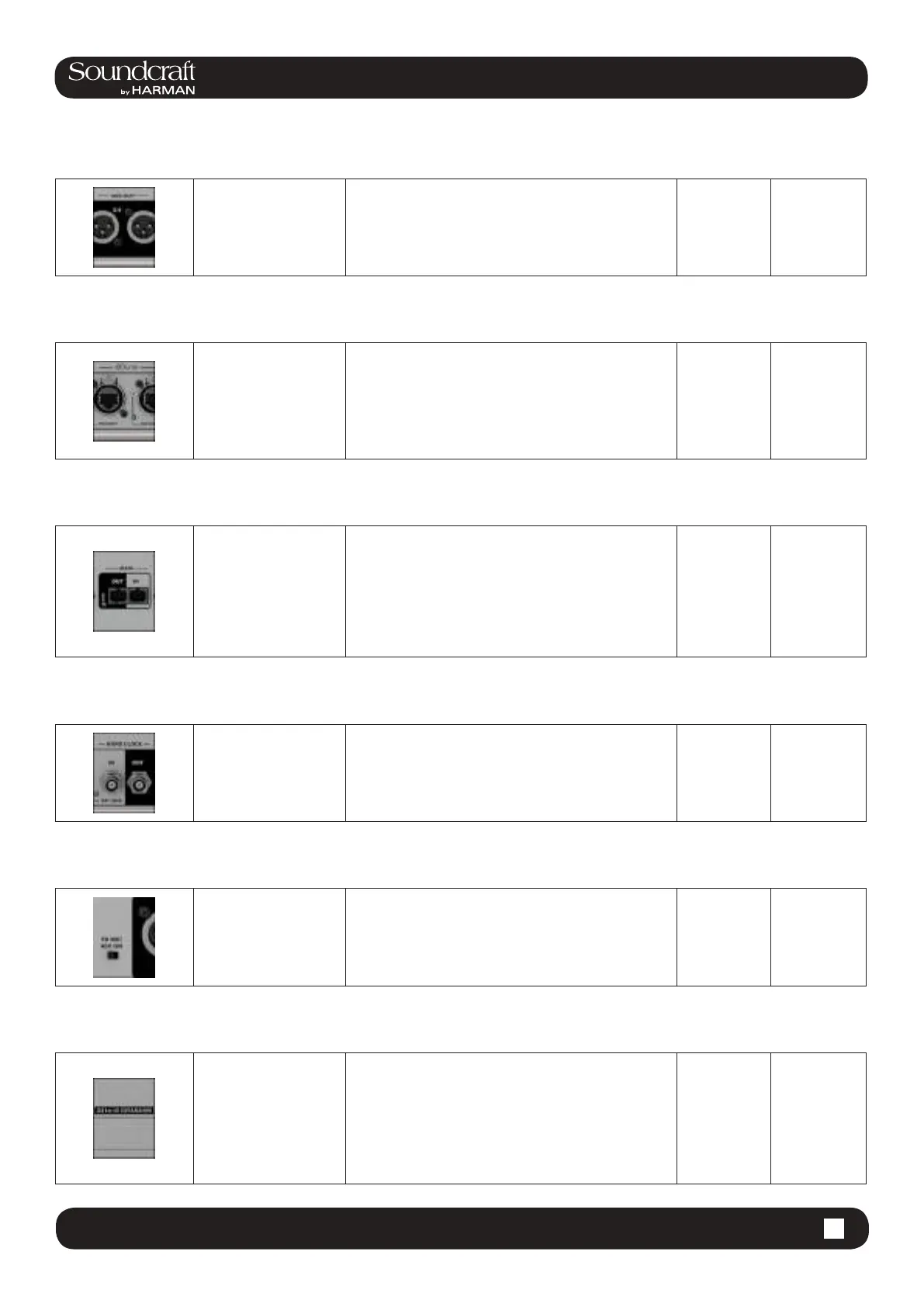

AES I/O
2 x 3-pin XLR AES (two-
chanel) digital audio
input and output.
4 channels of AES/EBU format outputs and 4 channels
of inputs.
AES 1-2 and 3-4 Input sockets have associated green
condence LEDs that indicate a valid sync signal is
present.
DANTE
Input and output
Interface ports for a
a DANTE (Audinate)
digital audio network.
Please note, the Vi 3000 MADI local MADI and DANTE
ports share an input and so are exclusive. That is, you
can choose either a local MADI or DANTE input. The
outputs are 'parallel' and a work concurrently. The choice
between the MADI and DANTE inputs is determined by
the DANTE/MADI global switch in the Setting tab of the
main menu - accessed with the [MENU] button.
MADI I/O
Input and output Inter-
face ports for connec-
tion to/from MADI-com-
patible equipment.
Please note, the Vi 3000 MADI local MADI and DANTE
ports share an input and so are exclusive. That is, you
can choose either a local MADI or DANTE input. The
outputs are 'parallel' and a work concurrently. The choice
between the MADI and DANTE inputs is determined by
the DANTE/MADI global switch in the Setting tab of the
main menu - accessed with the [MENU] button.
Connections are via multimode SC connectors.
Wordclock I/O
Outputs console
wordclock or syncs to
external wordclock at
48kHz.
Talkback Mic
48V Inactive Active
Switch to apply 48V
phantom power to the
talkback mix input on
the top panel of the
console.
No Power
phantom
powered
D21m Slots
D21m Slots, labelled
slots I, J, K, and L.
These card slots can be used for any available D21m
option cards of which there is a large range including
MADI (Cat 5 or Optical) Stagebox connection, ADAT
(16ch single slot), Blu Link (32ch single slot), Aviom (16
ch single slot), Ethersound (64ch double slot), Cobranet
(32ch single slot), Line in (8ch single slot), line out (8ch
single slot), AES/EBU (16ch double slot), and mic in (4ch
single slot).
