D21m System

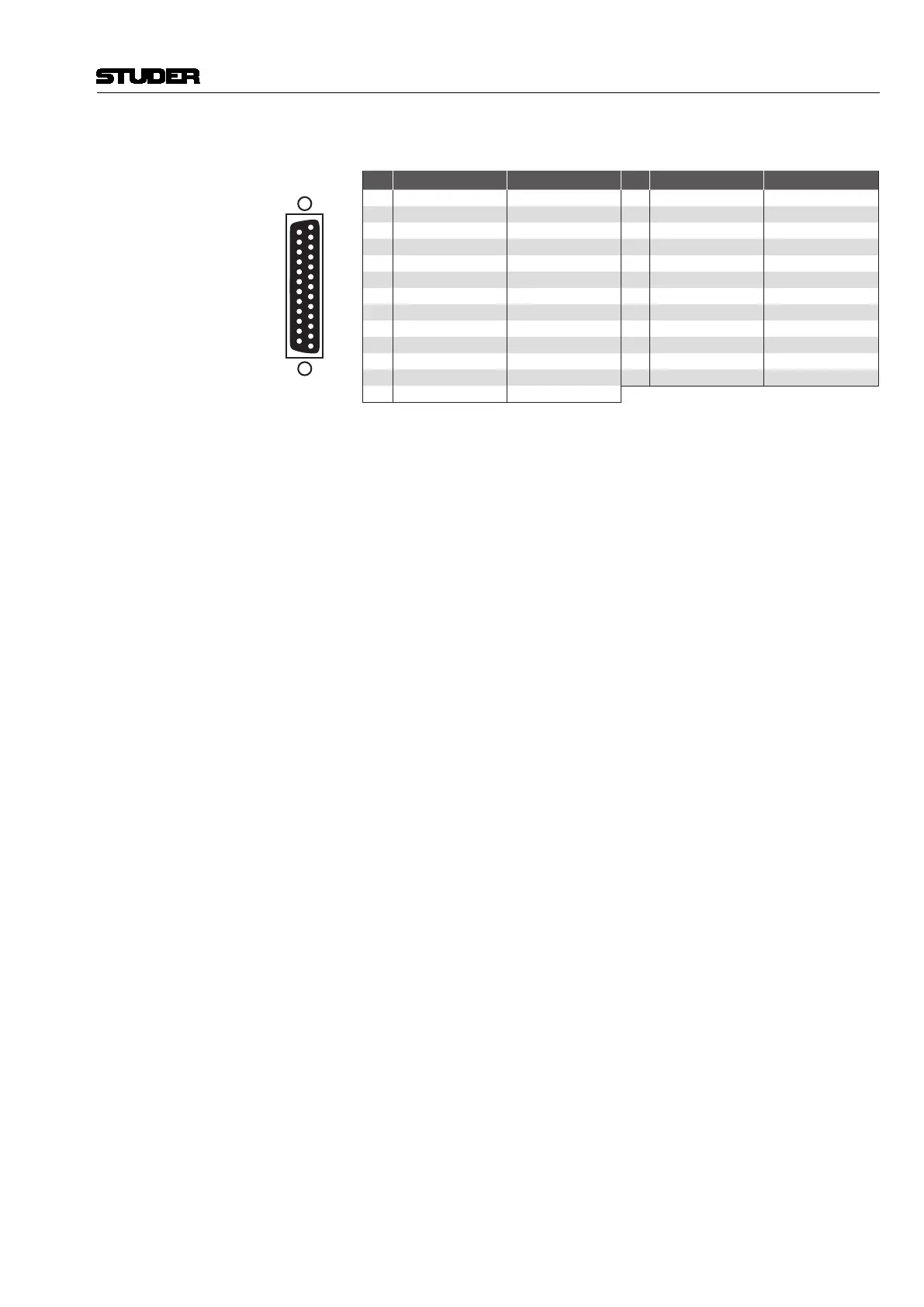

Connector Pin Assignment AES IN/OUT (2 × 25pin D-type, female, UNC 4-40 thread)
1
Solder/Crimp View
(or Socket View)
13
25
14
Pin Signal ‘CH 1-8’ Signal ‘CH 9-16’ Pin Signal ‘CH 1-8’ Signal ‘CH 9-16’
1 CH 7/8 out + CH 15/16 out + 14 CH 7/8 out – CH 15/16 out –
2 CH 7/8 out screen CH 15/16 out screen 15 CH 5/6 out + CH 13/14 out +
3 CH 5/6 out – CH 13/14 out – 16 CH 5/6 out screen CH 13/14 out screen
4 CH 3/4 out + CH 11/12 out + 17 CH 3/4 out – CH 11/12 out –
5 CH 3/4 out screen CH 11/12 out screen 18 CH 1/2 out + CH 9/10 out +
6 CH 1/2 out – CH 9/10 out – 19 CH 1/2 out screen CH 9/10 out screen
7 CH 7/8 in + CH 15/16 in + 20 CH 7/8 in – CH 15/16 in –
8 CH 7/8 in screen CH 15/16 in screen 21 CH 5/6 in + CH 13/14 in +
9 CH 5/6 in – CH 13/14 in – 22 CH 5/6 in screen CH 13/14 in screen
10 CH 3/4 in + CH 11/12 in + 23 CH 3/4 in – CH 11/12 in –
11 CH 3/4 in screen CH 11/12 in screen 24 CH 1/2 in + CH 9/10 in +
12 CH 1/2 in – CH 9/10 in – 25 CH 1/2 in screen CH 9/10 in screen
13 n.c. n.c.
