101

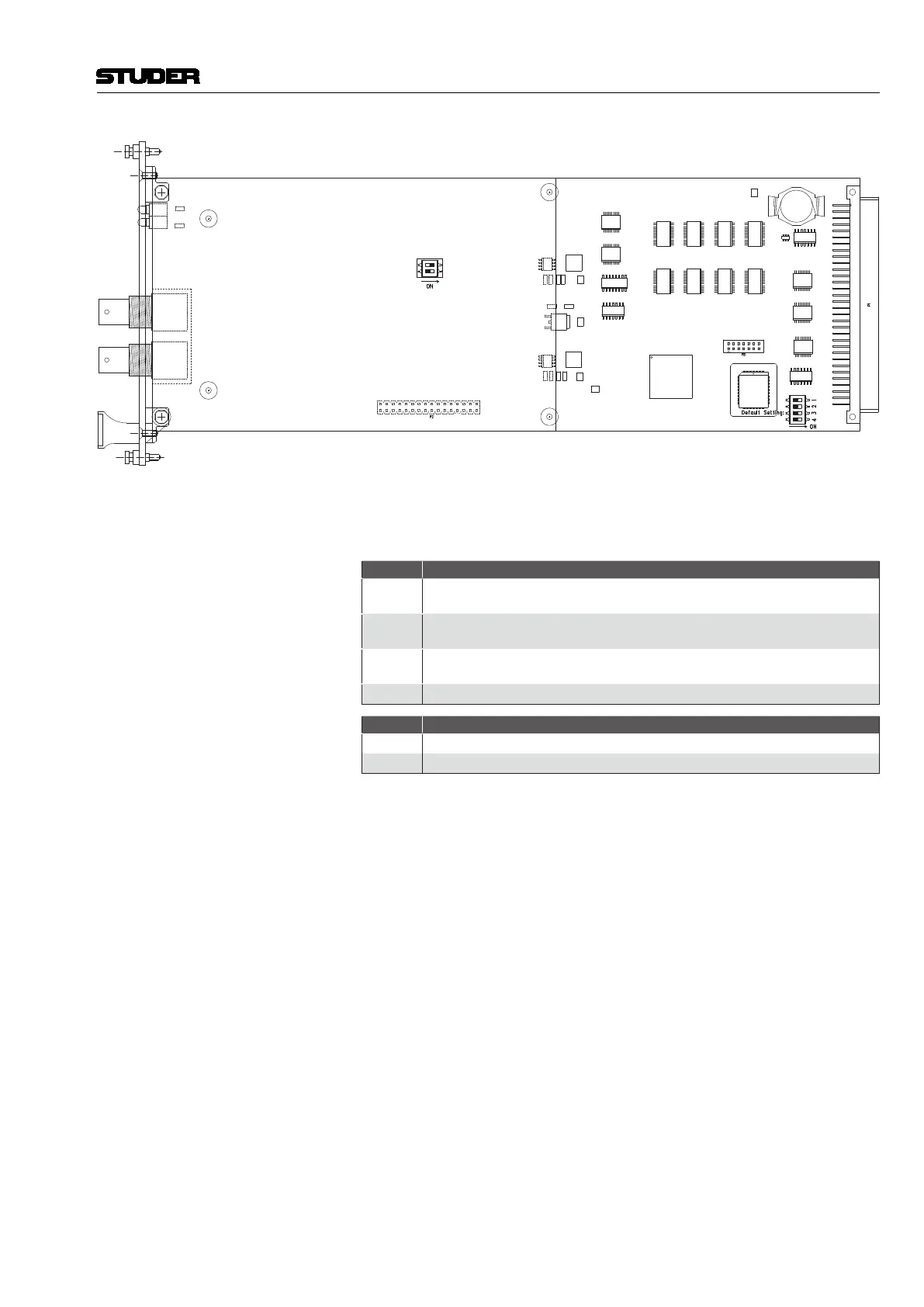

D21m System
A: Default ON
B: Default OFF
LEDs SDI LOCK Indicates a valid (HD or SD) SDI signal at the input.
HD Indicates a valid HD SDI signal at the input.
DIP Switches S1
Switch Setting
1
OFF: 16-channel mode (factory default)
ON: 8-channel mode
2
OFF: Group 1/2 used in 8-channel mode (factory default)
ON: Group 3/4 used in 8-channel mode
3
OFF: SRC disabled (factory default)
ON: SRC enabled
4 reserved (must always be OFF; factory default)
DIP Switch on SDI Module
Switch Setting
A reserved (default: ON)
B reserved (default: OFF)
