Harman TL300 User Manual

Save These Instructions Harman® • TL300 Owner's Manual_R25 • 2007 -___ • 08/15 3-90-06901
Service Parts
TL300
Beginning Manufacturing Date: Aug. 2007
Ending Manufacturing Date: Active

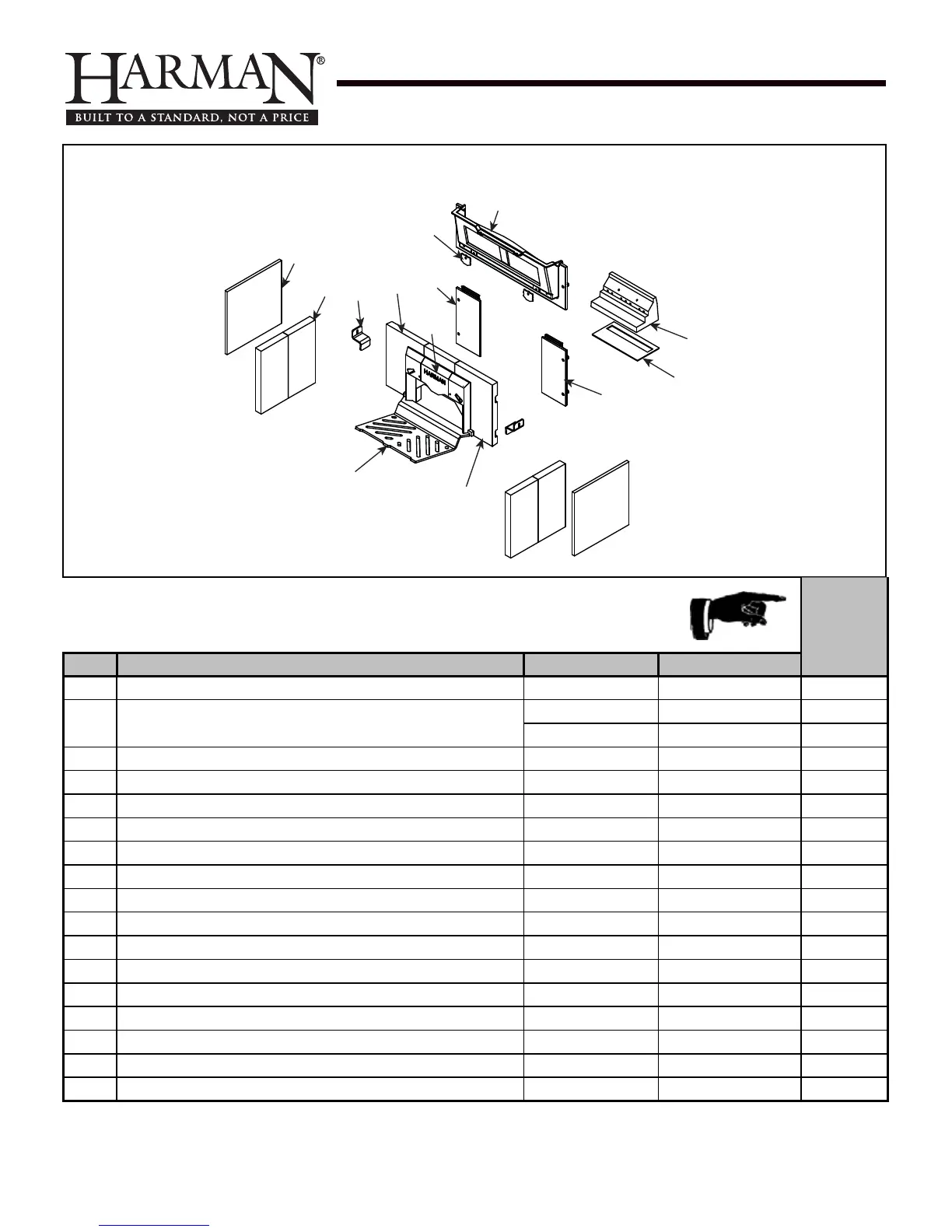

#19 Firebox Assembly
19.1
19.2
19.3
19.4
19.5
19.6
19.7
19.8
19.9
19.10
19.11
19.12
19.13
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
19.1 Damper Frame Assembly (Includes Damper) 1-10-249106
Y
Adjuster w/Hardware
Pre 008323034 1-00-249142
Y
Post 008323034 1-00-250153
Damper w/Adjuster 1-10-249107
Damper Shaft Retainers and Hardware 1 Set 1-00-249145
Y
Gasket, 3/8" Round White for Damper Frame & Plate 30 Ft 1-00-00888
Y
19.2 Rear Brick Clip Pkg of 2 1-00-249153
Y
19.3 Left Inside Plate Assembly w/Gasket 1-10-249117A
Y
19.4 Logo Brick 3-40-00101
Y
19.5 Inlet Brick Left 3-40-00103
Y
19.6 Side Brick Bracket Pkg of 2 1-00-06945
Y
19.7 Fire Brick 6" x 12" (Qty 4 req) 3-40-86125
Y
19.8 Brick Insulation Qty 2 req 3-40-06944
Y
19.9 Grate 2-00-06925B
Y
19.10 Inlet Brick Right 3-40-00104
Y
19.11 Right Inside Plate Assembly w/Gasket 1-10-249118A
Y
19.12 Shoe Brick Gasket 3-44-06951
Y
19.13 Shoe Brick 3-40-00100
Y
Additional service part numbers appear on following page.
