Harman TL300 User Manual

Save These Instructions Harman® • TL300 Owner's Manual_R25 • 2007 -___ • 08/15 3-90-06901
Service Parts
TL300
Beginning Manufacturing Date: Aug. 2007
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
13 Ash Pan 1-10-06938
Y
14 Right Side Shield 2-00-06927P
Y
15 Kit A (Includes Screws, Steel Sleeve Bushing) 1-00-06902
16
Kit B (Includes Screws, Steel Sleeve Bushing, Latch
Adjuster Plate, Reverse Lock Nut).
1-00-06903
17.1 Rod Bracket 2-00-06963B
17.2 Air Slide Adjuster 1-10-06964W
17.3 Air Slide Weldment 1-10-06950W
18.1 Push-On Cap Lift Arm Pre 008323415 3-31-500015
18.2 Wooden Knob 3-40-06956 Y
18.3 Damper Linkage Arm Weldment w/Hardware 1-10-06937W Y
18.4 Damper Pivot Gear Pkg of 2 2-00-06924-2
18.5 Damper Idler Gear 2-00-06923L
18.6 Damper Arm Gear Weldment 1-10-06916W Y
18.7 Damper Shaft Cover Weldment 1-10-06918W
18.8 Damper Linkage Weldment 1-10-249146 Y
18.9 Top Lift Arm weldment 1-10-08127 Y
18.10 1/4-20 Reversible Lock Nut Pkg of 100 3-30-8020-100 Y
18.11 1/4-20 x 5/8 BHSCS Pkg of 100 3-30-3016-100 Y
18.12
Hardware Package (Includes Drive Arm Washer, Pusher
Block Bushing, Wave Washer, Screws)
1-00-06901 Y
Additional service part numbers appear on following page.

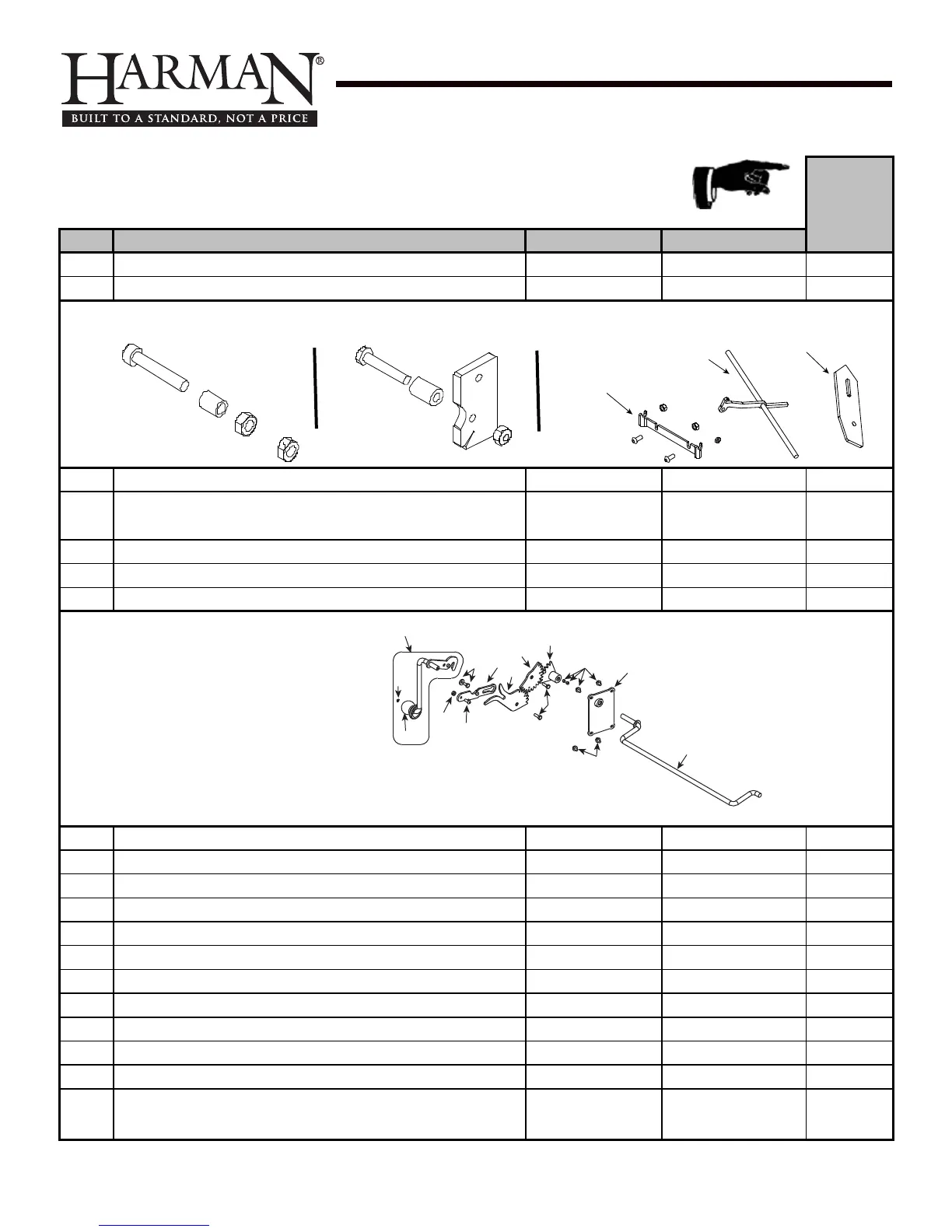

#18 Damper Arm Assembly
17.1
17.2
17.3
#17 Air Slide Assembly
#15 Kit A
#16 Kit B
18.8
18.12
18.7
18.12
18.12
18.6
18.5
18.4
18.9
18.12
18.3
18.2
18.10
18.11
18.1
