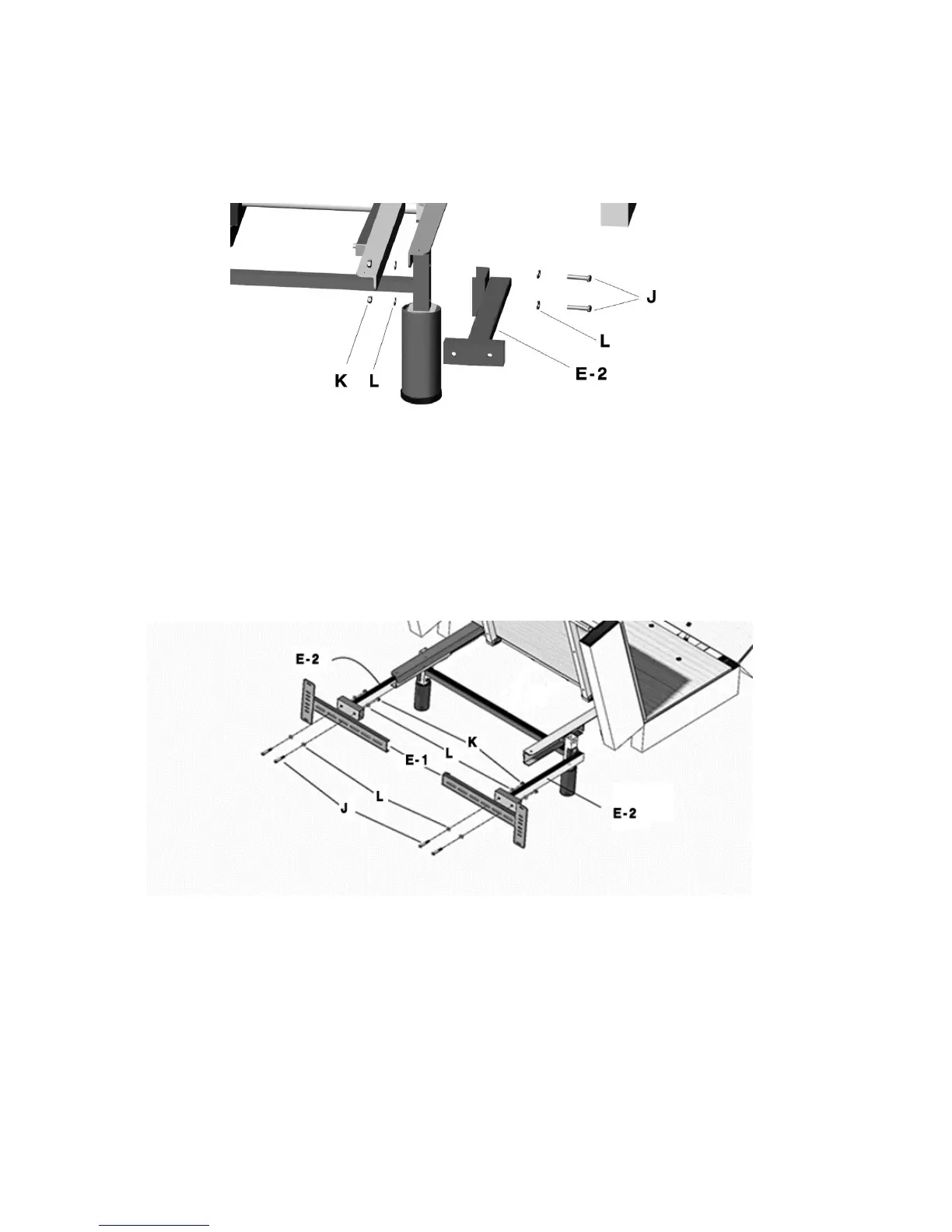

Refer to the following picture. Place the Headboard Bracket (E-2) on the tube of the right hand
side of your Adjustable Base. Insert the Bolt (J) with the Washer (L) through the pre-drilled
holes on the Bracket (E-2) and the vertical tube on your Adjustable Base. Fasten the Bolt (J)
with the Washer (G) and the Nut (K) with the Washer (L) by using the Wrench (G)
Redo this step on the left hand side of your Adjustable Base.
STEP 9 (Installing Headboard)
The Bracket (E-1) allows adjustment to meet the dimension of user’s Headboard. After choosing
desired pre-drilled holes on the Bracket (E-1), pass the Bolts (J) with the Washer (L) through
the holes on E-1 and E-2 Brackets. Fasten these Bolts (J), Washers (L) and Nuts (K) by using the
Wrench (G).
Step 10
Now place your mattress on your Adjustable Base. All the installation procedures have been
completed.
