Ethernet capacity (bandwidth) is assigned in 2.048 Mbps or 1.544 Mbps
steps to align with the capacity needed for E1 or DS1 waysides. Eclipse
incorporates a universal modem design that does not distinguish
between the type of data to be transported, Ethernet or TDM; data is
simply mapped into byte-wide frames to provide a particularly efficient
and flexible wireless transport mechanism, with the result that when
configured for Ethernet data, or Ethernet and TDM data, the full
configured, native capacity is available for user throughput.

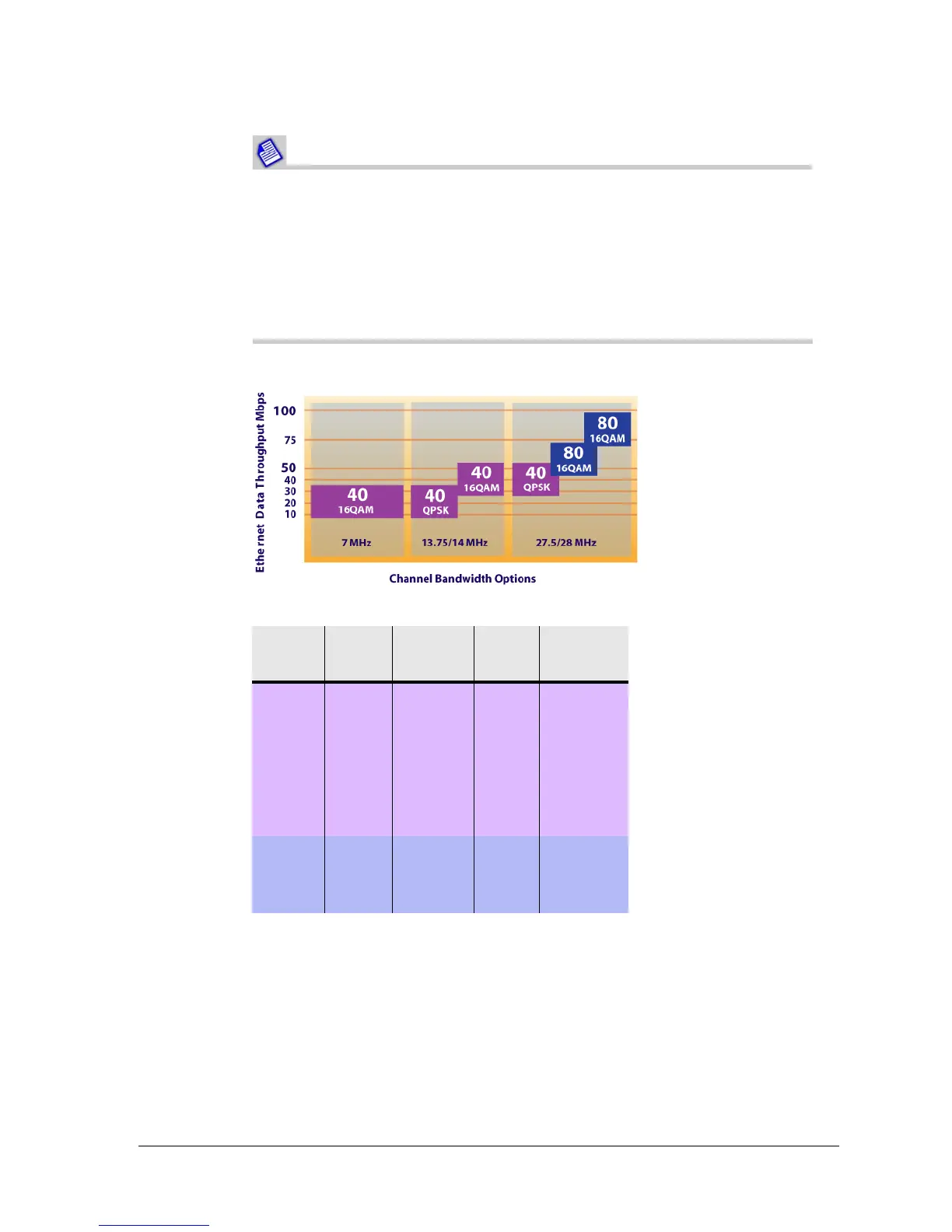

Figure 2-4. Connect ES Options with ODU 300sp: ETSI
Table 2-6. Connect ES Options with ODU 300sp: ETSI
Ethernet
BW,
Mbps
Channe
l BW,
MHz
Modulatio
n
License Connect
ES Option
20 7 16 QAM Base Connect ES
40
20 14 QPSK Base Connect ES
40
40 14 16QAM Base Connect ES
40
40 28 QPSK Base Connect ES
40
64 28 16 QAM Upgrade Connect ES
80
82 28 16 QAM Upgrade Connect ES
80
