260-668066-001 Rev 024 February 2009 Vol. II-2-15
Eclipse User Manual

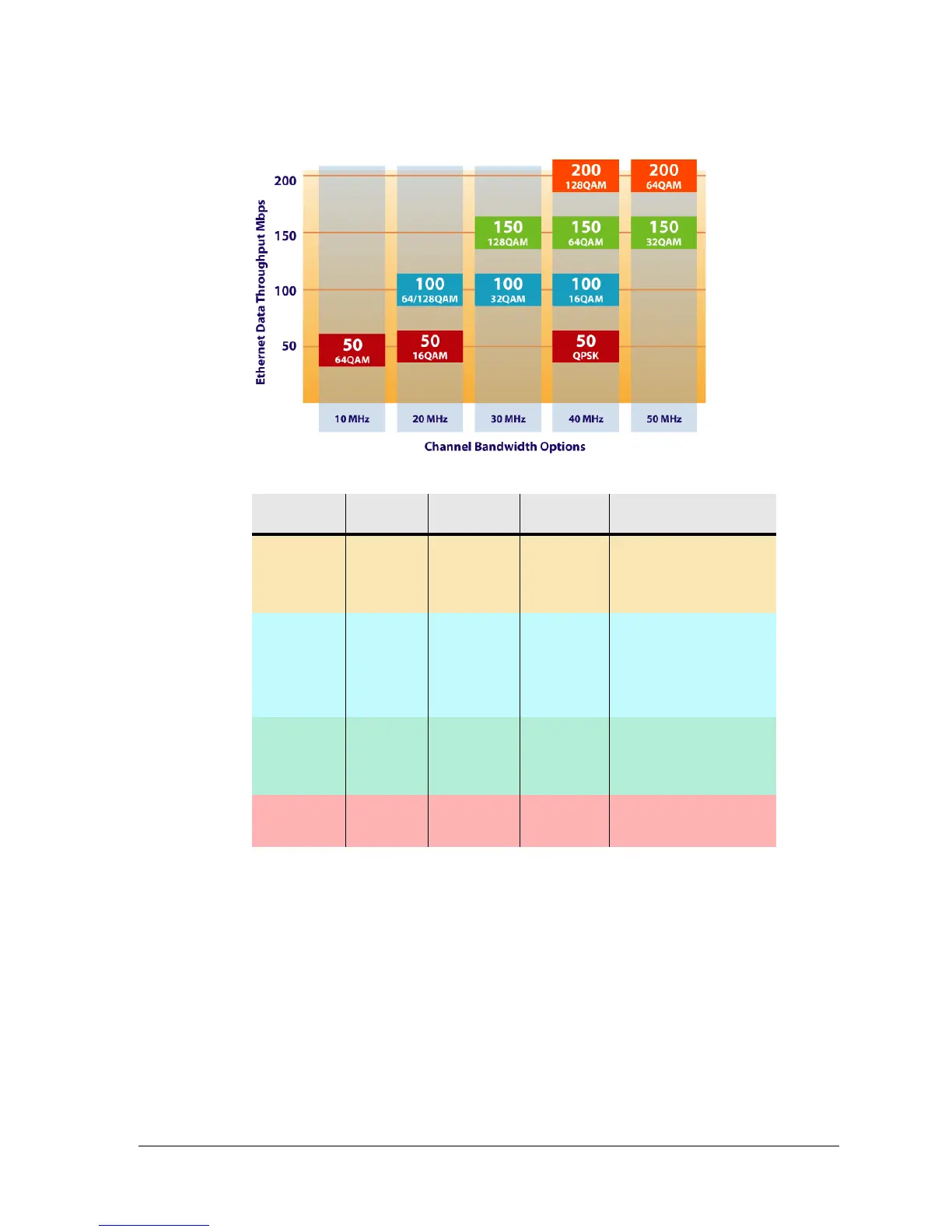

Figure 2-6.
Connect ES Options with ODU 300hp or ODU 300ep: ANSI
Table 2-8. Connect ES Options with ODU 300hp or ODU 300ep: ANSI
IDU ES Compatibility
IDU ES can be over-air interfaced to an INU/INUe fitted with a RAC 30v3, RAC 30A
(non-adaptive modulation) or RAC 3X. For ETSI bands it also applies to RAC 30v2+.
IDU ES can also be over-air interfaced to an IDU GE 20x. Refer to IDU GE 20x
Compatibility on page 2-31.
Table 2-9 indicates current INU compatibility for ETSI rates; Table 2-10 indicates
ANSI rates.
At the INU/INUe:
• Ethernet traffic is terminated on a DAC ES or DAC GE.
Ethernet
BW, Mbps
Channel
BW, MHz
Modulation License Connect ES Option
43 10 64 QAM Base Connect ES 50
49 20 16 QAM Base Connect ES 50
1
49 40 QPSK Base Connect ES 50
1
94 20 64 QAM Upgrade 1 Connect ES 100
108 20 128 QAM Upgrade 1 Connect ES 100
108 30 32 QAM Upgrade 1 Connect ES 100
1
1. FCC frequency efficiency restrictions mean these options are not available for use in the 6
and 11 GHz Common Carrier bands.
108 40 16 QAM Upgrade 1 Connect ES 100
1
154 30 128 QAM Upgrade 2 Connect ES 150
154 40 32 QAM Upgrade 2 Connect ES 150
154 50 16 QAM Upgrade 2 Connect ES 150
196 40 128 QAM Upgrade 3 Connect ES 200
196 50 64 QAM Upgrade 3 Connect ES 200
