Harris Stratex Eclipse 4.6 - IDU GE 20 x Overview

Vol. II-2-26 Harris Stratex Networks
Chapter 2. Eclipse Terminals

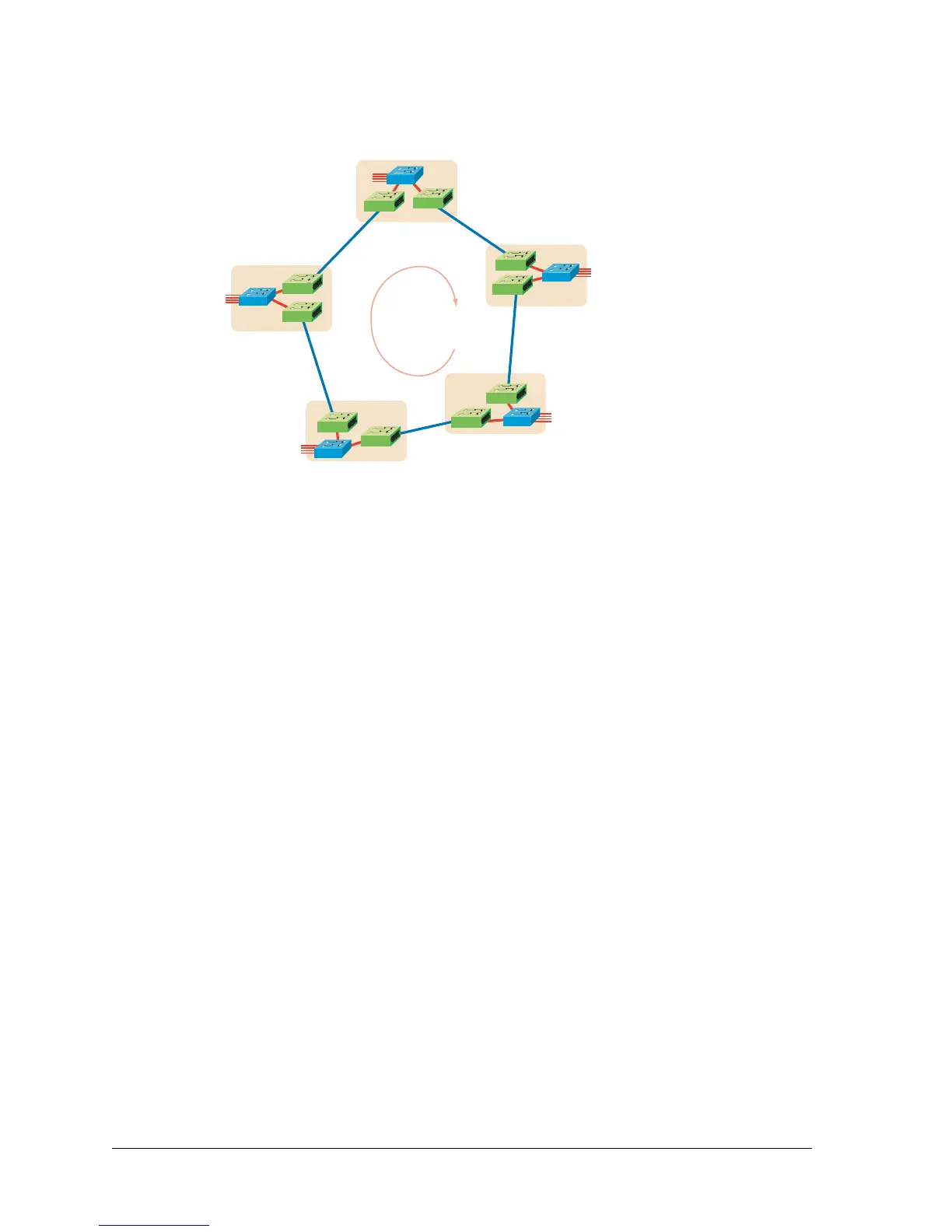

Figure 2-15.
IDU ES Links in a Ring
• For product description and application data refer to the Harris Stratex Networks’
publication ‘Connect ES Product Description’. There are separate descriptions for
ETSI and ANSI. Contact Harris Stratex Networks or your supplier for copy.
IDU GE 20x
IDU GE 20x supports Gigabit Ethernet plus up to 20xE1 waysides.
Depending on the required Ethernet throughput, channel bandwidths ranges from 7 to
56 MHz, with modulation options from QPSK to 256 QAM. Maximum Ethernet
throughput is 360 Mbps using one or both transport channels.
Configured link capacity may be fully assigned to:
• Ethernet only.
• Between Ethernet and up to 20xE1 or 20xDS1 circuits in 1xE1 or 1xDS1 steps.
• E1 or DS1 circuits only, for link options of 5x, 10x, 16x, 20xE1, or 16xDS1.
Ethernet capacity is licensed; NxE1/DS1 capacity is not.
It includes a Layer 2 switch to support two customer 10/100/1000base-T electrical
ports, and an optional SFP port for either 1000Base-X optical or 1000Base-T electrical
connections. These interface to one or two transport channels using transparent, VLAN
or mixed operational modes.
The switch incorporates:
• Programmable switching fabric: transparent mode, VLAN (secure) mode, or mixed
mode.
• Comprehensive QoS policing and prioritization options (802.1p).
• VLAN tagging (802.1Q and 802.1Q-in-Q).
•RWPR
TM
enhanced RSTP (802.1d).
• Layer 2 link aggregation (802.3ad).
• Flow control through 802.3x pause-frame option.
• Jumbo frames to 9600 bytes.
B
A
C
D
E
Ethernet ring
RSTP
IDU ES
IDU ES
RSTP
IDU ES
IDU ES
IDU ES
RSTP
IDU ES
IDU ES
RSTP
IDU ES
IDU ES
IDU ES
RSTP
C1 C1
C1
C1
C1
C1
C1
C1
C1
C1
