Chapter 2: Installation
Setting Jumpers
Setting J1/J2 Jumpers
The J1 and J2
1
jumpers are used to select local control reclock setting.
Follow this procedure to set the jumpers:
1. Locate the J1 and J2 jumper sets on the module. Figure 2-1 shows
the standard location of the jumper sets.
2. Place a shunt on the pin that corresponds to the mode that you want.
(See page 21 for a description of the J1/J2 settings.)

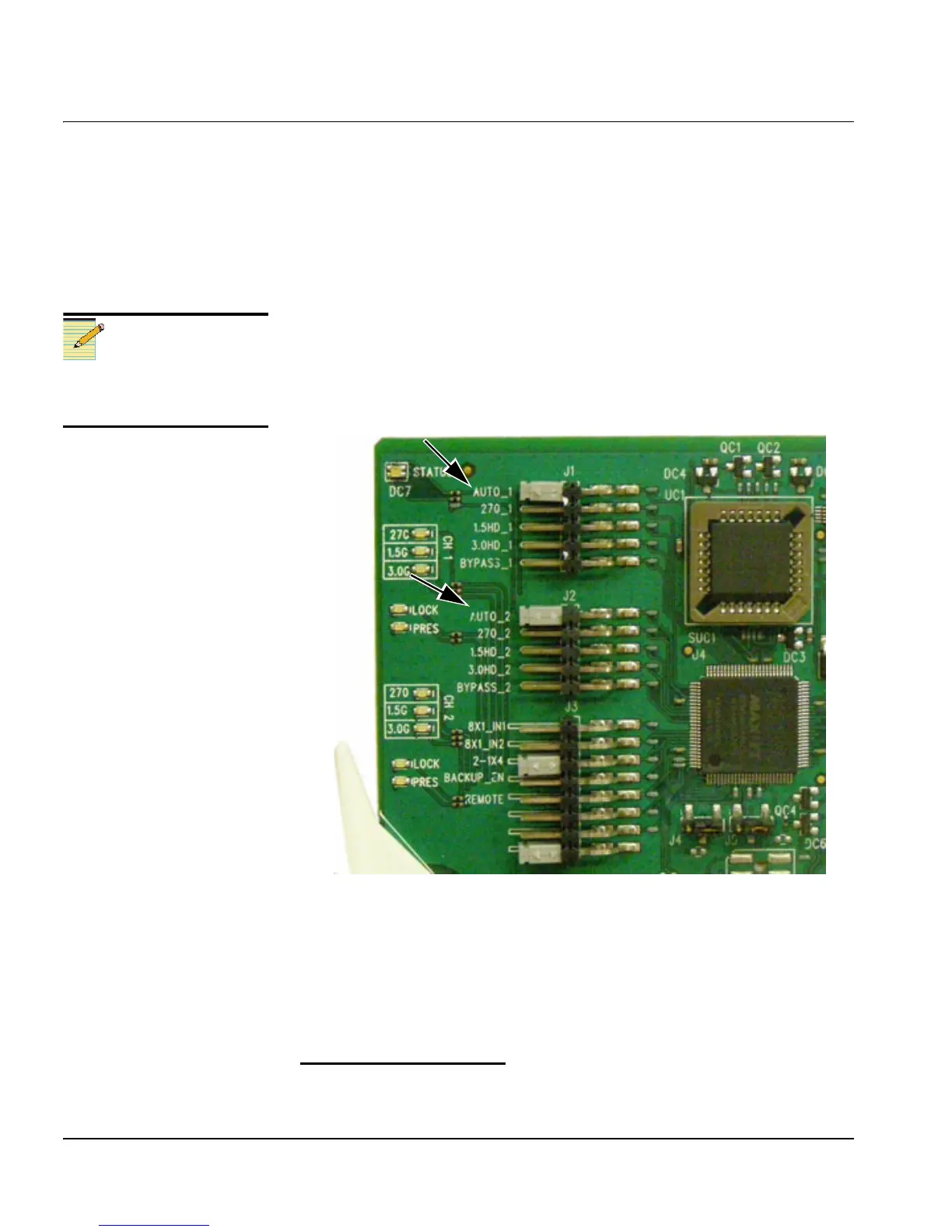

Figure 2-1. J1/J2 Jumper Set Locations
1
Jumper J2 is not operational in DA-HR/H6802+ modules.
Note
Set the J1 jumper for input 1rate
control. Set the J2 jumper for
input 2 rate control.
