Chapter 3: Operation
Module-Specific LEDs

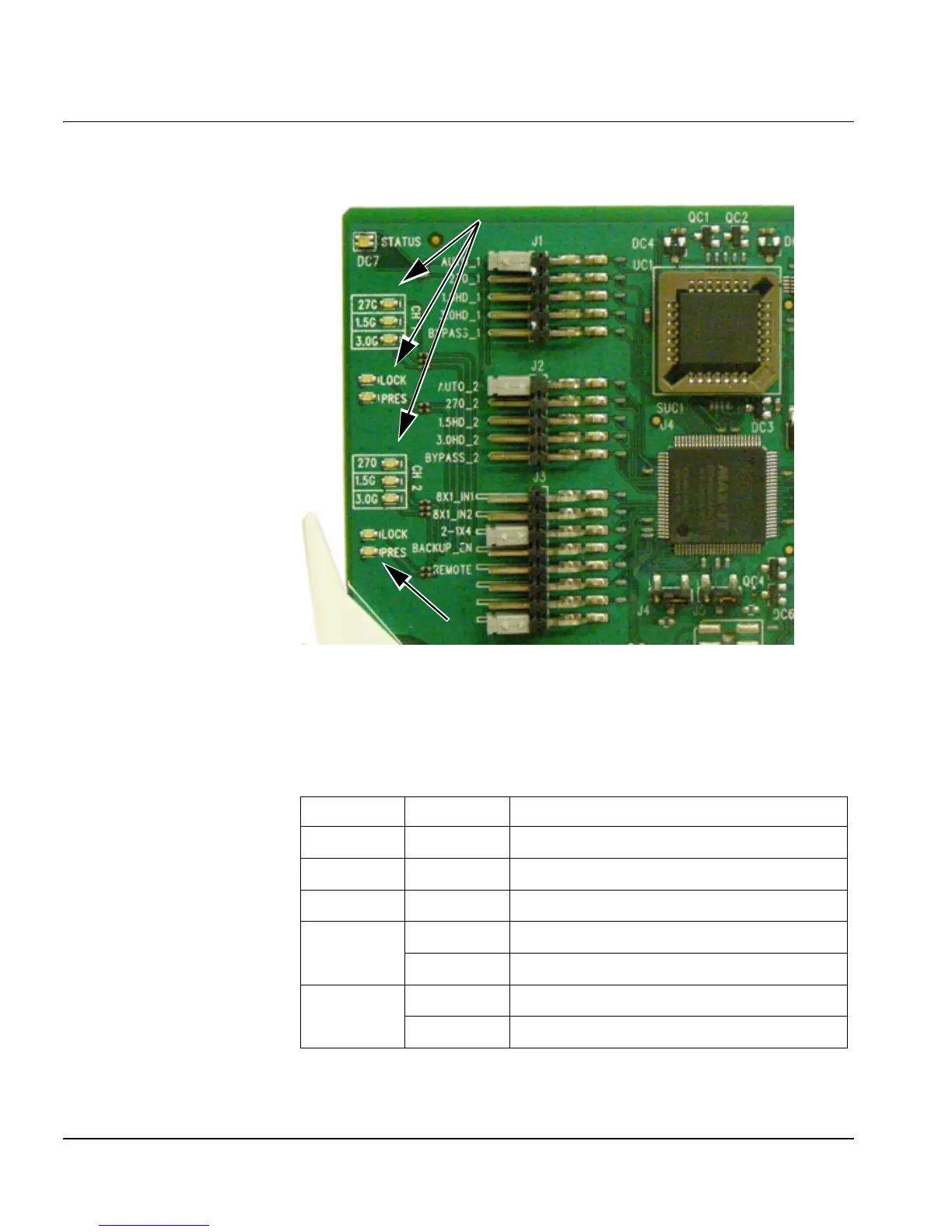

Figure 3-3. Module-Specific LEDs
Each 6800+ module has a number of LEDs assigned to indicate varying
states / functions. These functions are listed in Table 3-5.
Table 3-5. Module-Specific Status LEDs
Name Color Function
270* Green Input signal is reclocked at 270 Mb/s
1.5G* Green Input signal is reclocked at 1.485 Gb/s
3.0G* Green Input signal is reclocked at 3.0 Gb/s
LOCK* Off Signal cannot be locked
Green Signal locked
PRES Off Input signal absent
Green Input signal present
* DA-DHR/HR/DSR6802+ modules only
