This section provides an overview of the 32Classic MS hardware. The tutorial section covers each control in more detail.

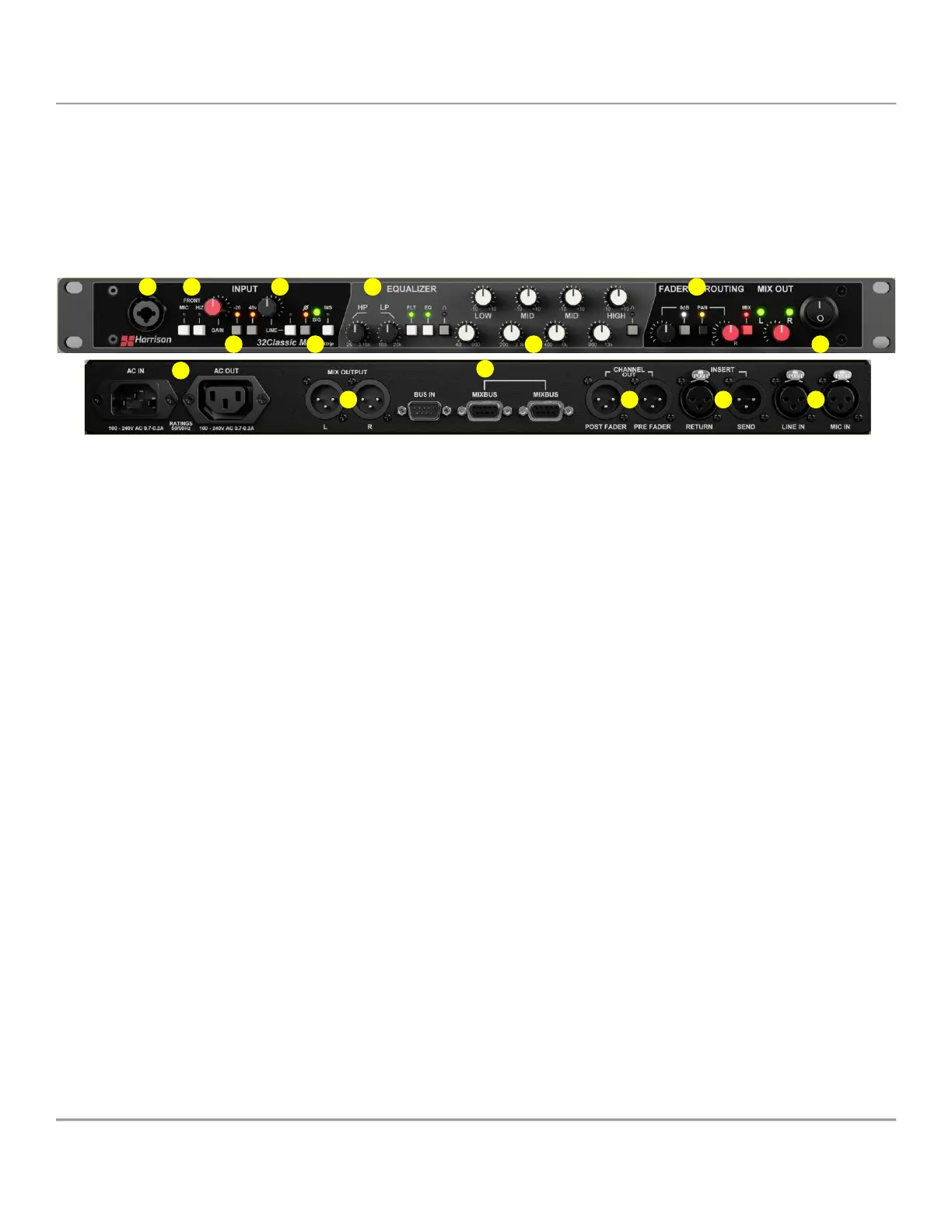

Front and Rear Panel
1 2
3
4
5
6
7
8
9
10
11
12
13 14 15
1 - Front panel combo XLR / TRS jack.
2 - Mic or HiZ (instrument) input selections via combo connector.
3 - Mic input gain control with -20dB pad and 48v phantom power.
4 - Line input select switch with trim control.
5 - Polarity reverse switch, insert point switch, and bi-color input meter (SIG).
6 - High pass (HP) and low pass (LP) filters with in/out (FLT) switch.
7 - Four band parametric EQ with proportional Q on all bands, HIGH and LOW bell mode switches, and EQ in/out switch.
8 - Output FADER knob, 0dB selection, MIX bus routing, PAN knob w / pan in switch, MIX OUT knob for use with additional units.
9 - Power switch located conveniently on the front panel.
10 - AC main IEC input connector with AC pass through connector for additional 32Classic MS units.
11 - Mix output XLR connectors for the left and right mix bus outputs.
12 - Mix bus connectors, jumper multiple 32Classic MS units together via the included bus link and sum link cables.
13 - Channel outputs pre and post fader XLR connectors.
14 - Insert point send and return XLR connectors.
15 - Microphone and line input XLR connectors.
