3.4.4 Offline Graphing
Graphing data which has been previously graphed is automatically stored to the Palm for later re-
view. These “offline” graphs can be accessed from the polling screen. Follow these steps to open
and view an offline graph:
1. From the main polling screen of HPCGraph, select the “Offline Graphics” button.
2. A list of all currently available offline graphs will be displayed (Figure 19). Select a file and it will
be loaded (Figure 20). The offline graph files follow the following naming convention:
dMMDDXXXXXXgf where:
MM is the devices manufacturer code in hexadecimal format (for example, 3e for Smar)
DD is the devices type code in hexadecimal format (for example, 01 for the LD301)
XXXXXX is the devices serial number in hexadecimal format.

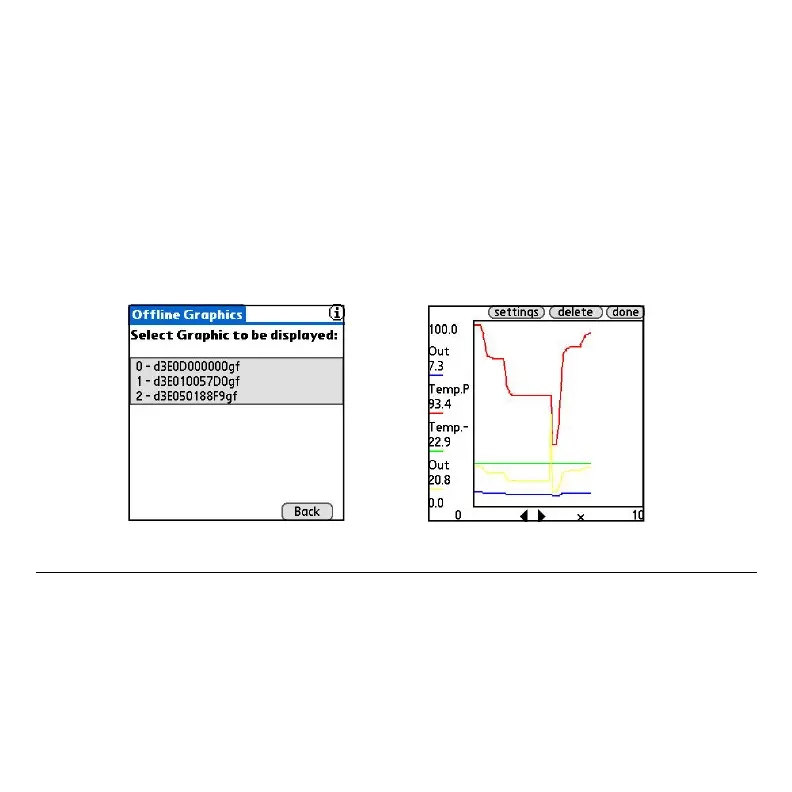

Figure 20 - Offline Graphics
Figure 19 - Offline Graphics File Selection
3.5 HPC301
The HPC301 software is a legacy piece of software which has been included in the HPC Suite for
users whom have grown accustomed to the layout and structure of the HPC301 software. In addi-
tion, the HPC301 software can be used to access devices in generic mode which do not currently
have a loaded Device Driver in HPC401. The usage of HPC301 is similar to HPC401. Simply poll
for devices from the polling screen and navigate the device parameters. HPC301 can access any
HART device in generic mode as well as fully support a collection of specific HART devices includ-
ing the full line of Smar HART devices. For more information on the operation of the HPC301, refer
to the HPC301 manual. To download a copy, visit www.smarresearch.com.
