9. Technical Data
The Modena, certifi ed in compliance with DIN-EN 13240 : 2001 + A2 2004 and Art. 15
a B-VG (Austria), can only be operated when the fi re box is closed; more than one device
can be connected to the chimney.
VKF-No.: 12729; Inspection Report No. (A): RB BF1-Hn 1049
The following data applies to the chimney characteristics in accordance with EN 13384-1 / 2:
Combustion Values Wood
Nominal Thermal Output 8 kW
Waste Gas Mass Flow Rate 8,5 g/s
Waste Gas Outlet Temp. 350 ˚C
Min. Supply Pressure at Nominal Thermal Output 11 Pa
CO content at 13% O2 1125 mg/m³
Effi ciency 79 %
Particulate 62 mg/m³
Depending on the insulation of the building, the nominal thermal output of 8 kW indicated
on 30 - 115 m² (subject to change)
Dimensions: Height Width Depth
Stove 124,5 cm 46 cm 48,5 cm
Fire box 51,5 cm 31,5 cm 31,5 cm
Weight: 162 kg
Fire Box Opening: 910 cm²
Flue pipe diameter: 15 cm
Pipe diameter of Hase ventilation system* 10 cm
* For separate air supply in low-energy houses and insuffi cient combustion air supply in the room where
the stove is installed

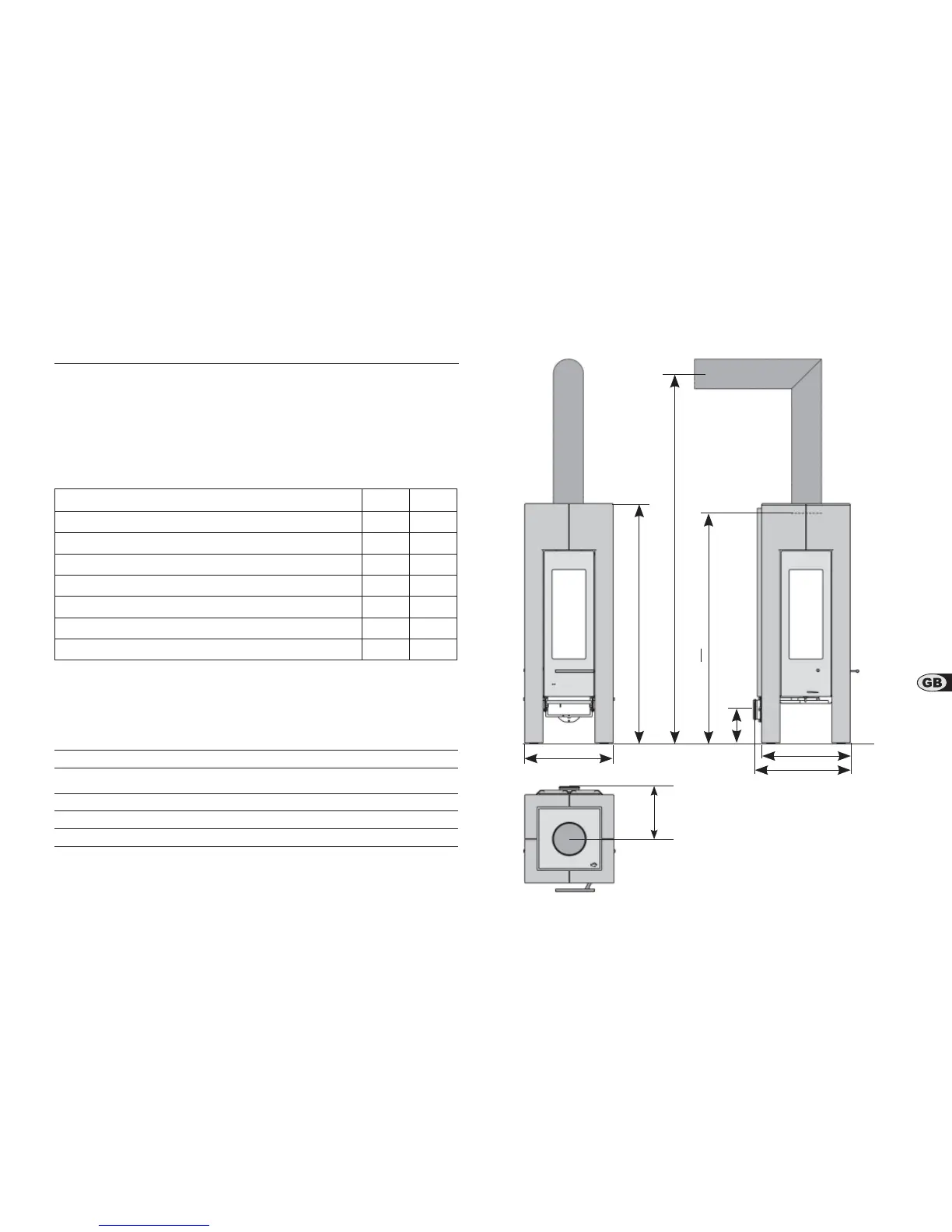

Dimensions in cm
Top view
46
48,5
17,5 Connection height Hase-Air system
min. connection height 181 (181,5 with angular pipe)
Front view
Stove height 124,5
46
25,5
Connection height: 119,5
Side view
