11. Technical Data
The Sendai,certiedincompliancewith DIN-EN 13240 and Art. 15 a B-VG (Aus-
tria),can onlybe operatedwhen there boxis closed.Conformswith theDIBt
(Deutschen Institut für Bautechnik/German Institute for Building Technology) ap-
provalcriteriafordirectventreplacesforsolidfuels.Multiple connections to the
chimney are possible, see point 4. “Connection of Multiple Devices in Direct Vent
Operation”. DIBt approval number: Z-43.12-396 / Typ FC41x und FC51x
The following data applies to the chimney characteristics in accordance with EN
13384-1 / 2
Combustion Values* Wood
Nominal Thermal Output 6 kW
Efciency 83,5 %
Particulate 9 mg/m³
CO content at 13% O2 817 mg/m³
WasteGasMassFlowRate 5,3 g/s
WasteGasOutletTemp. 299 ˚C
Min. Supply Pressure at Nominal Thermal Output
12
Pa
Min. required combustion air volume 25 m³/h
Depending on the insulation of the building, the nominal thermal output of 6 kW
indicated on 20 bis 80 m² (subject to change).
Dimensions: Height Width Depth
Stove 133/175 - 220 cm 37 cm 40,5 cm
Fire box 61 cm 21 cm 27 cm
WeightSendai135 140 kg
WeightSendai175(without heat retaining block ) / Additional module 163 / 15 kg
Weight1xheatretainingblockuepipeconectiontop/rear 63/52,5 kg
**For separate air supply in low-energy
housesandinsufcientcombustion
air supply in the room where the stove
is installed.
Inst. of Hase air system
below

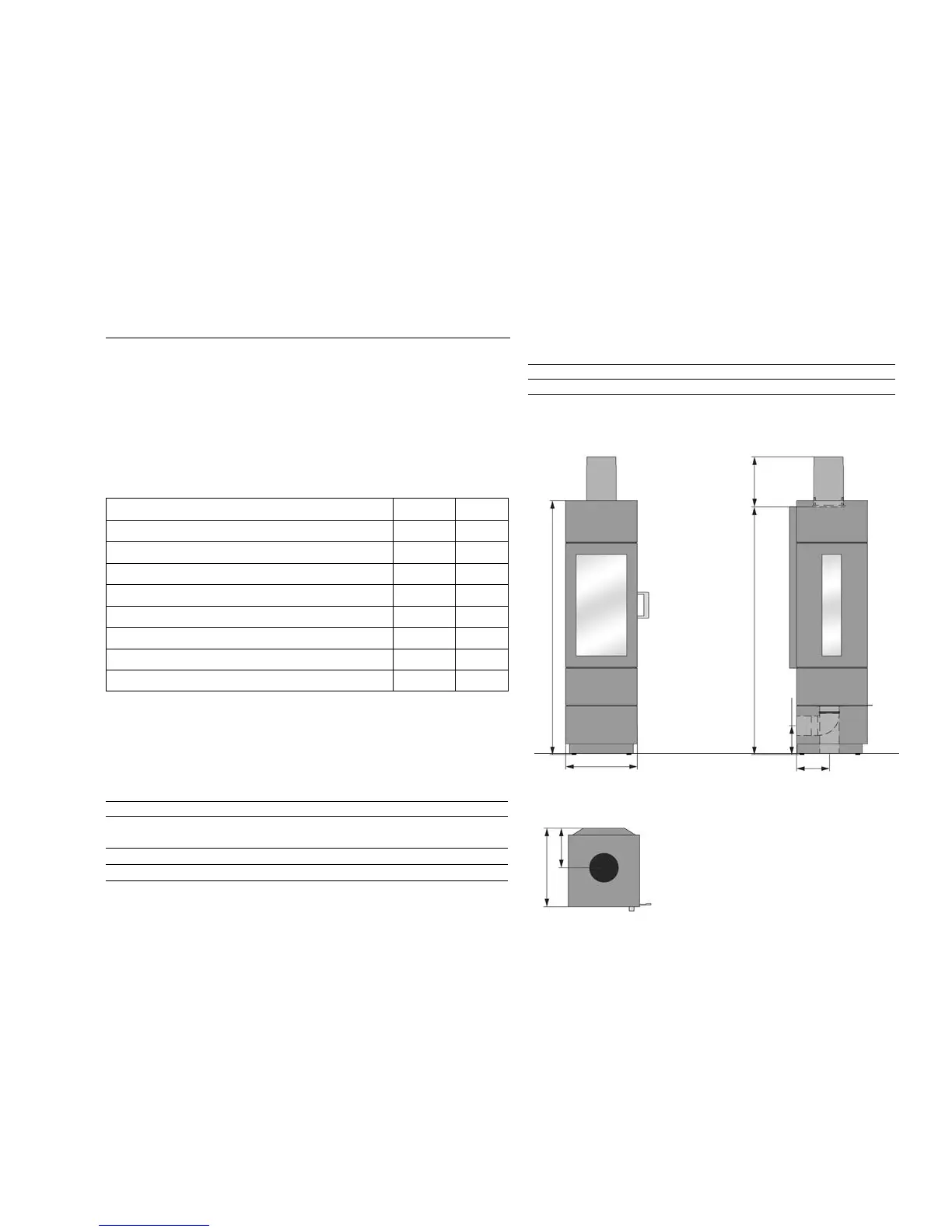

Front view Sendai 135: Side view Sendai 135:
Top view Sendai 135:
130,5 Height for top installation
40,5
1
min. 25
37
Height for the inst. of Hase air system
15
17,5
20,5
133 Stove height
¹VerticaluepipelengthSendai135/175 min.25 cm
Diametro tubo di uscita fumi 15 cm
Diametro tubo sistema di ventilazione Hase* 10 cm
