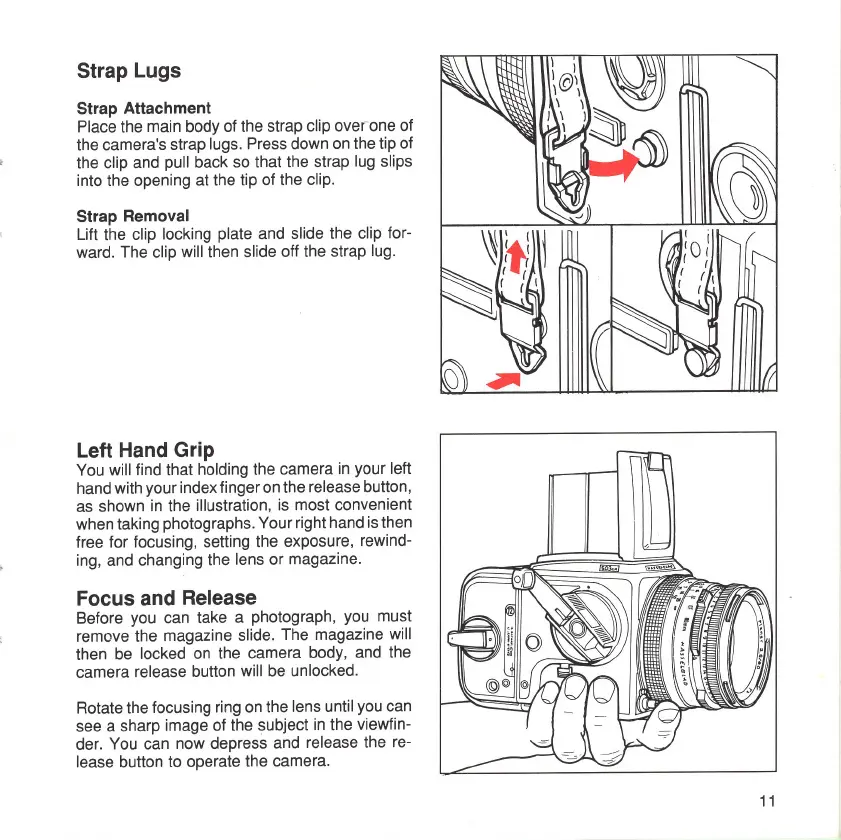

Strap Lugs
Strap Attachment
Place the main body of the strap clip ove
r-
one of
the camera's strap lugs. Press down on the tip of
the clip and pull back
so
that the strap lug slips
into the opening at the tip of the clip.
Strap Removal
Lift the clip locking plate and slide the clip for-
ward. The clip will then slide off the strap lug.
Left Hand Grip
You will find that holding the camera
in
your left
hand with your index finger on the release button,
as
shown
in
the illustration, is most convenient
when taking photographs. Your right hand
is
then
free for focusing, setting the exposure, rewind-
ing, and changing the lens or magazine.
Focus and Release
Before you can take a photograph, you must
remove the magazine slide. The magazine will
then
be
locked
on
the camera body, and the
camera release button will be unlocked.
Rotate the focusing ring on the lens until you can
see a sharp image of the subject
in
the viewfin-
der. You can now depress and release the re-
lease button to operate the camera.
11
