8

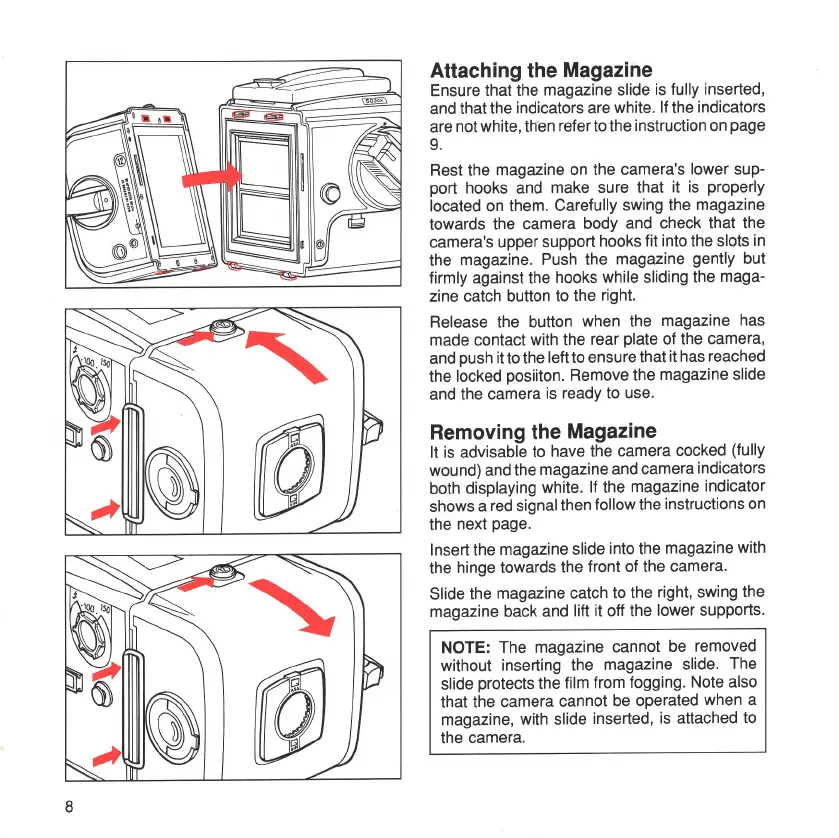

Attaching the Magazine
Ensure that the magazine slide is fully inserted,
and that the indicators are white. If the indicators
are not white,
th
-en refer to the instruction on page
9.
Rest the magazine on the camera's lower sup-
port hooks and make sure that it
is
properly
located on them. Carefully swing the magazine
towards the camera body and check that the
camera's upper support hooks fit into the slots
in
the magazine. Push the magazine gently but
firmly against the hooks while sliding the maga-
zine catch button to the right.
Release the button when the magazine has
made contact with the rear plate of the camera,
and push
illo
the left to ensure that it has reached
the locked posiiton. Remove the magazine slide
and the camera
is
ready to use.
Removing the Magazine
It is advisable
to
have the camera cocked (fully
wound) and the magazine and camera indicators
both displaying white. If the magazine indicator
shows a red signal then follow the instructions on
the next page.
Insert the magazine slide into the magazine with
the hinge towards the front of the camera.
Slide the magazine catch to the right, swing the
magazine back and lift it off the lower supports.
NOTE: The magazine cannot
be
removed
without inserting the magazine slide. The
slide protects the film from fogging. Note also
that the camera cannot be operated when a
magazine, with slide inserted, is attached to
the camera.
