Hasselblad 503CX Instruction Manual

31
503cx

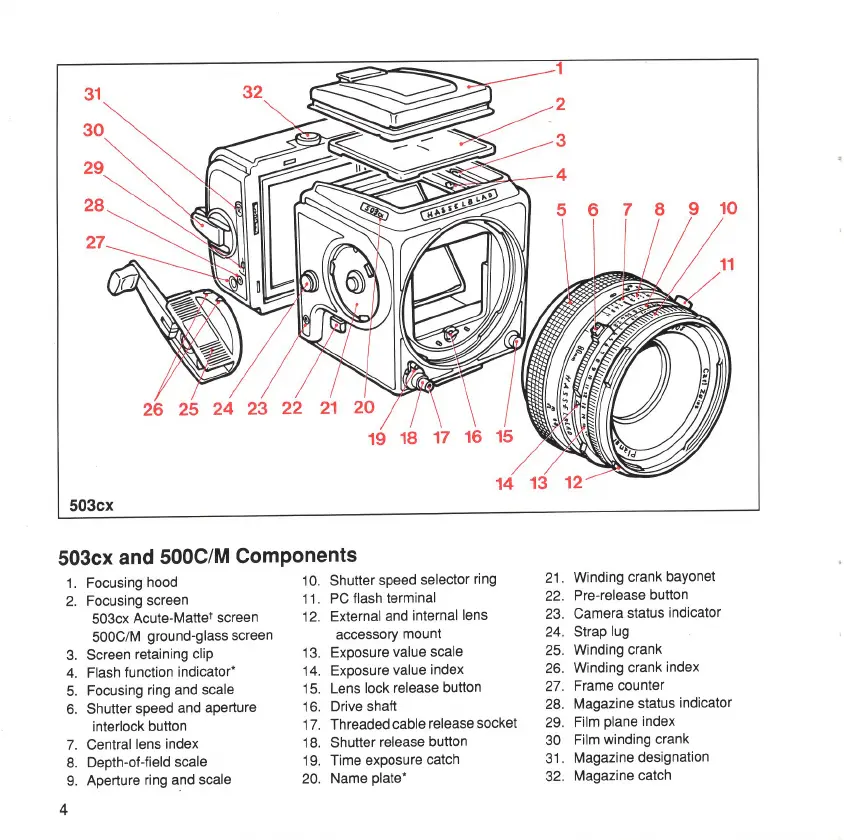

503cx and 500C/M Components
1.
Focusing hood
10.
Shut1er speed selector ring
21 .
Winding crank bayonet
2.
Focusing screen
11. PC flash terminal
22.
Pre-release
but10n
503cx Acute-Mat1e
t
screen 12. External and internal lens
23. Camera status indicator
500C/M ground-glass screen accessory mount
24. Strap lug
3. Screen retaining clip 13. Exposure value scale 25.
Winding crank
4. Flash function indicator'
14.
Exposure value index 26. Winding crank index
5. Focusing ring and scale 15. Lens lock release
but10n
27. Frame counter
6. Shut1er speed and aperture 16. Drive shaft 28. Magazine status indicator
interlock
but10n
17. Threaded cable release socket 29.
Film plane index
7. Central lens index 18. Shut1er release but10n 30 Film winding crank
8. Depth-of-field scale
19.
Time exposure catch 31 . Magazine designation
9. Aperture ring and scale 20. Name plate' 32. Magazine catch
4

Hasselblad 503CX Specifications

General

Camera Type	Medium format SLR
Image Size	6x6 cm
Focus	Manual
Film Format	120/220
Lens Mount	Hasselblad V-system
Shutter Speed	1/500 sec to 1 sec, Bulb
Viewfinder	Interchangeable waist-level or prism
Shutter Type	Focal-plane shutter
