Hasselblad Flextight X5 User Manual

8
Closed
Horizontal
Normal
A
BKL
C
FLEXTIGHT ORIGINAL HOLDER PATENT PEND
ING
I
J
D
E
G
H
F

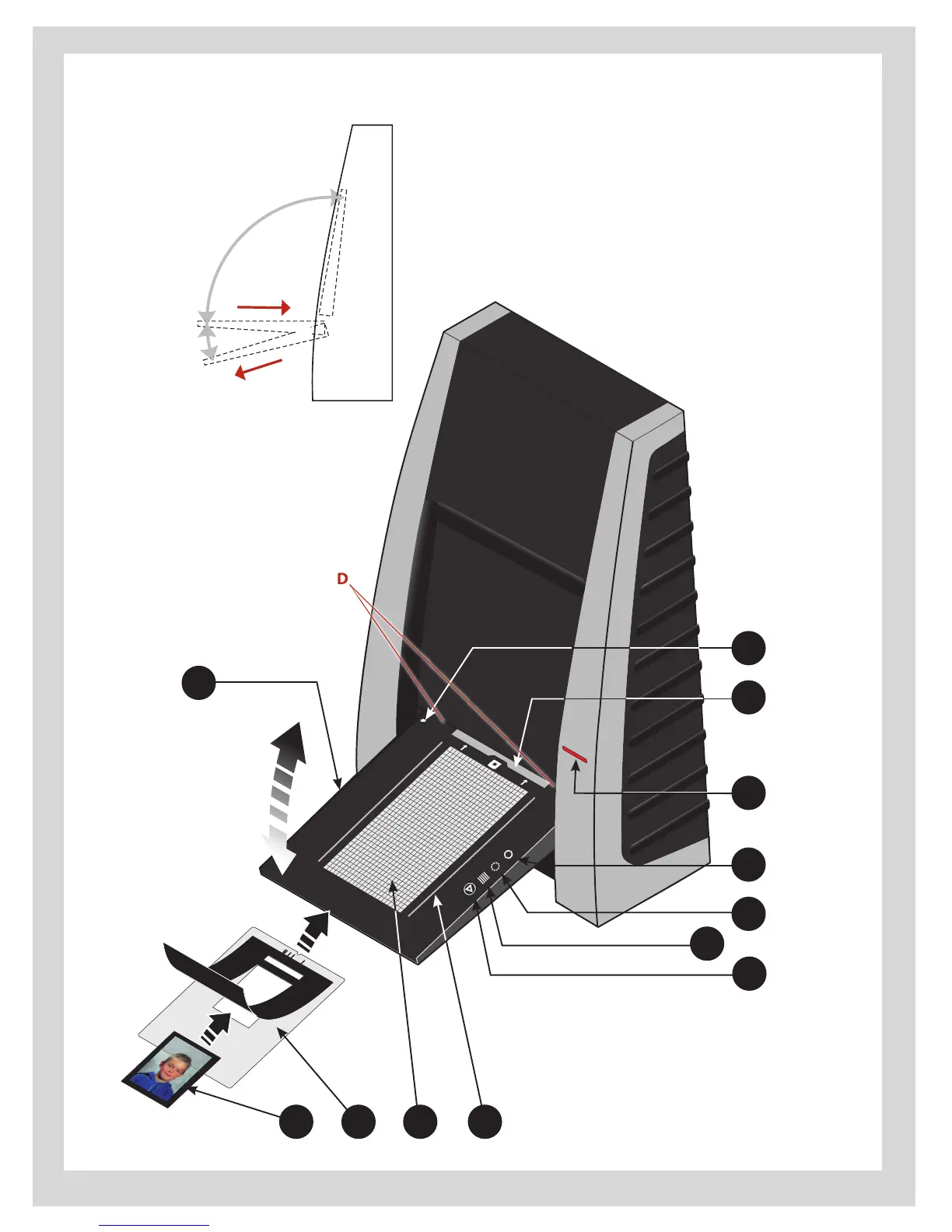

For horizontal positioning, proceed as follows:
1. From the normal position (as in the illustration on the left), grasp the table
with both hands near position A and pull the table away a little from the
scanner in the direction of the arrow B.
2. While maintaining this pulling action, raise the table until it is in the hori-
zontal position (as in the illustration) or a little higher. Note that it requires
a simultaneous pulling and raising action to reach this correct position.
3. Finally, push the table gently back towards the scanner in the direction
of arrow C, ensuring that both of the protruding lugs D (see illustration
below) on the table slide over the guides on the scanner body to secure it.
B
C
A
D
