Form No. DHLM-1010
5
D L H - 700 - S T U
Mounting Style
R Mount
Lamp mounts with
adjustable cord. Cord
adjusts up-down from
31″ (787 mm) to
69-1/2″ (1765 mm).
ST Mount
Lamp mounts with
rigid stem to track adapter.
Overall length from
17″ (432 mm) to
71″ (1803 mm).
P Mount
Lamp mounts with
rigid stem to canopy
with adjustable pivot
adjacent to canopy.
Overall length from
14″ (356 mm) to
71″ (1803 mm).
A Mount
Lamp mounts with
rigid stem to canopy
with adjustable pivot
adjacent to lamp.
Overall horizontal length
from 7″ (178 mm) to
20″ (508 mm). Vertical
drop length to bottom of
shade 10-1/4″ (260 mm).
TS Mount
Lamp mounts with
threaded stem
to fixture above
(fixture supplied by others).
Threaded stem mount is
available only as a
UL recognized (UR)
component.
RT Mount
Lamp mounts with
adjustable cord to track
adapter. Cord adjusts
up-down from
33-3/8″ (848 mm) to
71-7/8″ (1826 mm).
C Mount
Lamp mounts with
cord to the canopy.
Overall length from
17″ (432 mm) to
any length.
CT Mount
Lamp mounts with
cord to track adapter.
Overall length from
17″ (432 mm) to
any length.
S Mount
Lamp mounts with
rigid stem to canopy.
Overall length from
14″ (432 mm) to
71″ (1803 mm).
Switch Location:
U = Upper ON/OFF Switch
(not available with High Watt,
Trac Mount, or R Mount)
L = Lower ON/OFF Switch
(not available with High Watt
or A Mount)
N = None (supplied by installer)
Decorative Lamp
(Heat Lamp or Luminaire)
High Wattage
Shade Style
400 500 600 700 725
750 760 775 800
R = Remote ON/OFF Switch
(switch plate not included
with 120 V switch)
(120 V) (240 V)

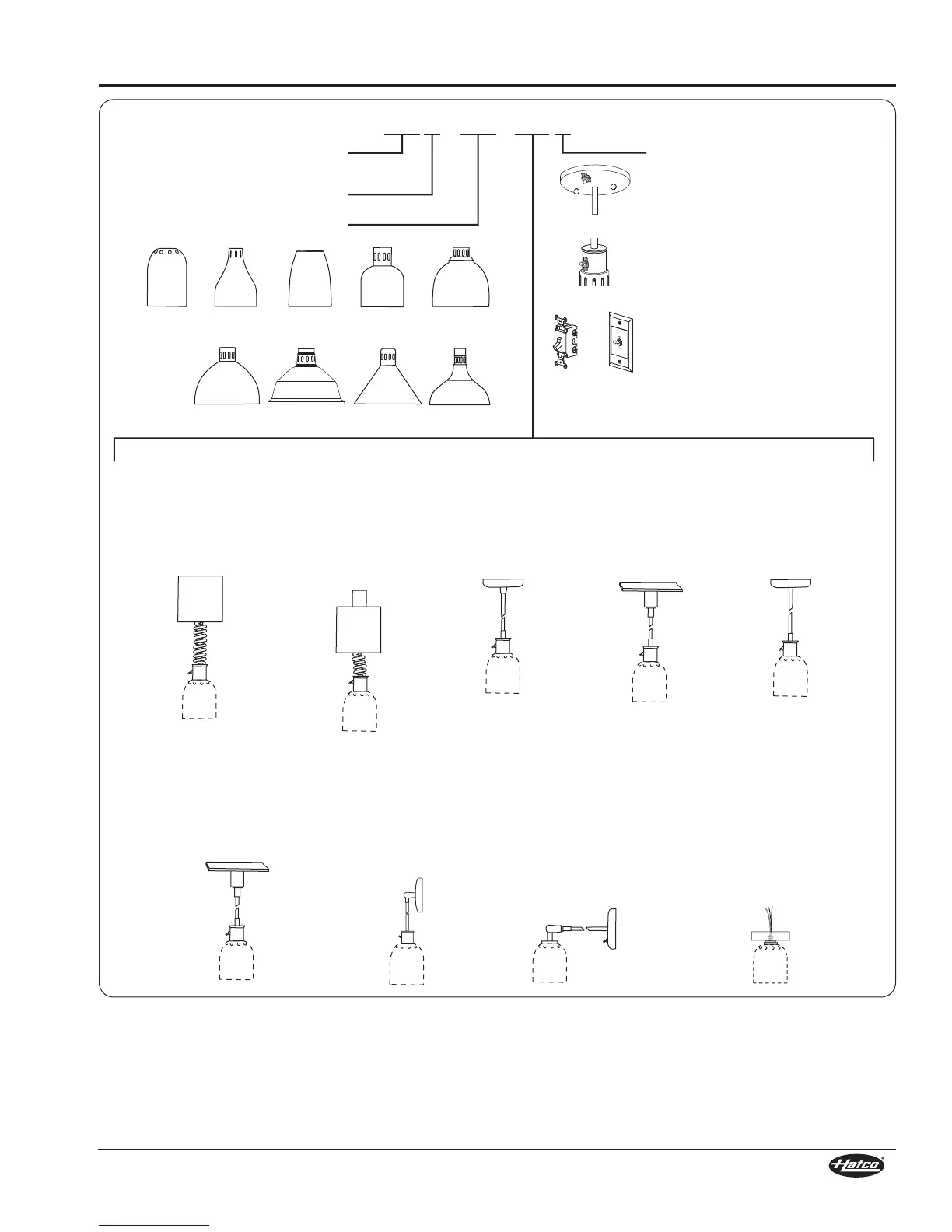

Figure 2. Model Designation
NOTE: Track mount units are not available in 240 V.
NOTE: The height dimension of the shade increases by
2″ (51 mm) when utilizing the “L” lower switch location.
NOTE: For 120 V units, the remote ON/OFF switch is capable
of handling up to nine 200 W luminaires, seven 250 W
heat lamps, or five 375 W heat lamps.
For 240 V units, the remote ON/OFF switch is capable
of handling up to four 250 W heat lamps or three
375 W heat lamps.
