Hatco HDW Series Original Instructions

HDWCEM1-0822
5
Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1
and
HDW-1N
100
450
4.5 JIS C 8303
44 kg (97 lbs.)
220 2.0 CEE 7/7 Schuko, BS-1363
240 1.9 BS-1363
220–230 450–492 2.0–2.1 CEE 7/7 Schuko
230–240 413–450 1.8–1.9 BS-1363
HDW-2
and
HDW-2N
100
900
9.0 JIS C 8303
76 kg (168 lbs.)
220 4.1 CEE 7/7 Schuko, BS-1363
240 3.8 BS-1363
220–230 900–984 4.1–4.3 CEE 7/7 Schuko
230–24 826–900 3.6–3.8 BS-1363
HDW-3
and
HDW-3N
100
1350
13.5 NEMA 5-15P
105 kg (232 lbs.)
220 6.1 CEE 7/7 Schuko, BS-1363
240 5.6 BS-1363
220–230 1350–1476 6.1–6.4 CEE 7/7 Schuko
230–240 1239–1350 5.4–5.6 BS-1363
HDW-4 220
1800
8.2 CEE 7/7 Schuko, BS-1363
134 kg (296 lbs.)
240 7.5 BS-1363
220–230 1800–1968 8.2–8.6 CEE 7/7 Schuko
230–240 1653–1800 7.2–7.5 BS-1363

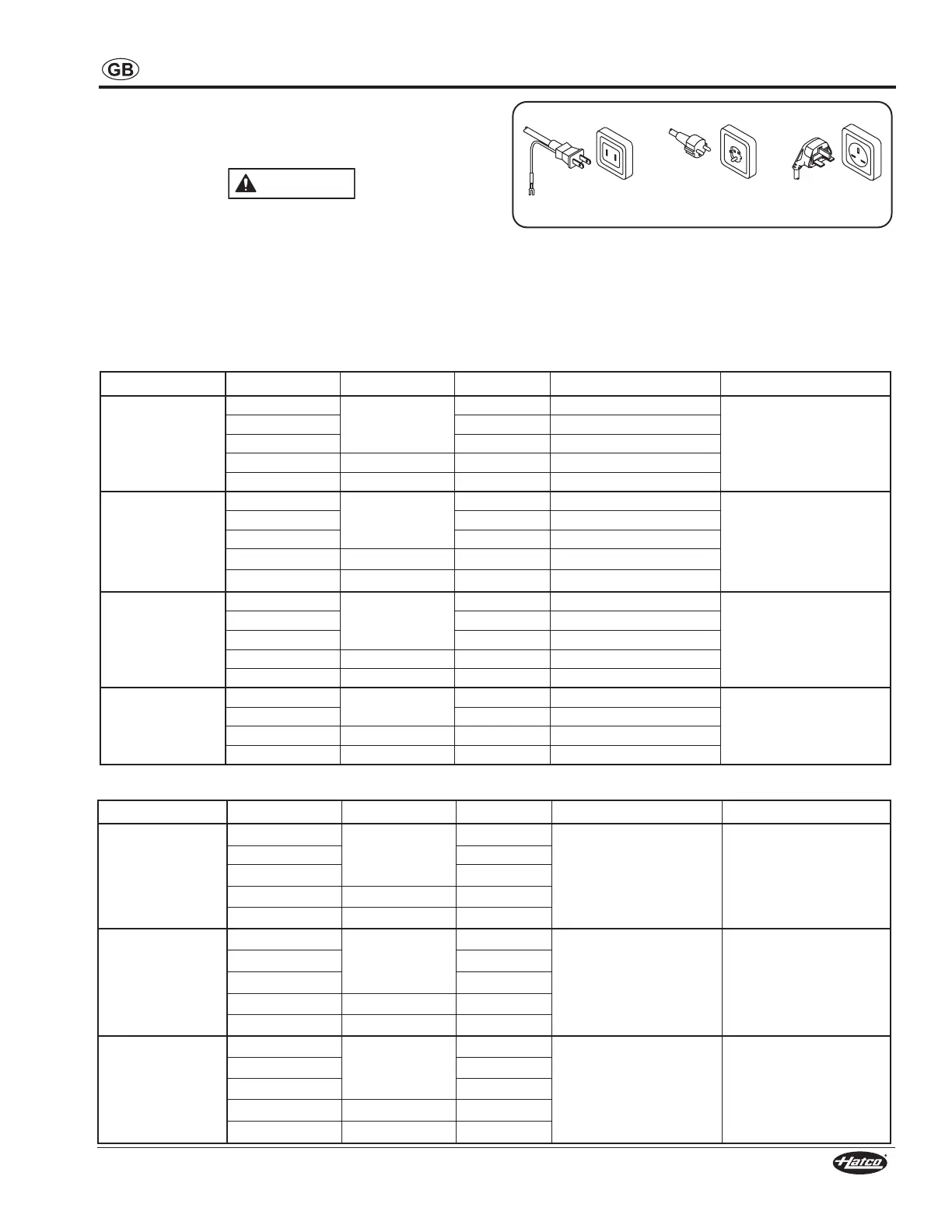

SPECIFICATIONS
Electrical Rating Chart — HDW-x and HDW-xN Models
Plug Configurations
Freestanding units are supplied from the factory with an
electrical cord and plug installed. Plugs are supplied according
to the application.
WARNING
ELECTRIC SHOCK HAZARD: Plug unit into a properly
grounded electrical receptacle of the correct voltage,
size, and plug configuration. If plug and receptacle do not
match, contact a qualified electrician to determine and
install the proper voltage and size electrical receptacle.
NOTE: Receptacle not supplied by Hatco.
NOTE: Shipping weight includes packaging.
CEE 7/7 Schuko
BS-1363
JIS C 8303
Plug Configurations
NOTE: The specification label is located on the back of
freestanding models and the inside left panel of built-in
models (remove drawer to view built-in label). See
label for serial number and verification of unit electrical
information.
Electrical Rating Chart — HDW-xB, HDW-xBN, and HDW-xBR Models
Model Voltage Watts Amps Plug Configuration Shipping Weight
HDW-1B,
HDW-1BN,
and
HDW-1BR
100
450
4.5
Hardwired w/Conduit 40 kg (88 lbs.)
220 2.0
240 1.9
220–230 450–492 2.0–2.1
230–240 413–450 1.8–1.9
HDW-2B,
HDW-2BN,
and
HDW-2BR
100
900
9.0
Hardwired w/Conduit 72 kg (159 lbs.)
220 4.1
240 3.8
220–230 900–984 4.1–4.3
230–240 826–900 3.6–3.8
HDW-3B,
HDW-3BN,
and
HDW-3BR
100
1350
13.5
Hardwired w/Conduit 101 kg (223 lbs.)
220 6.1
240 5.6
220–230 1350–1476 6.1–6.4
230–240 1239–1350 5.4–5.6
