Form No. HDWM_CN-0817
10
English
INSTALLATION
General
Hatco Drawer Warmers are shipped with most components
pre-assembled. Care should be taken when unpacking the
shipping carton to avoid damage to the unit and components
enclosed.
ELECTRIC SHOCK HAZARD: Unit is not weatherproof.
Locate unit indoors where ambient air temperature is a
minimum of 21°C (70°F).
FIRE HAZARD:Locateunitaminimumof25mm(1″)from
combustible walls and materials. If safe distances are not
maintained, combustion or discoloration could occur.
Do not lay unit on the front or back side. Damage to the
unit could occur.
1. Remove the unit from the carton. Two people are required
for this step.
NOTE: To prevent delay in obtaining warranty coverage,
complete online warranty registration. See the
IMPORTANT OWNER INFORMATION section for
details.
2. Remove tape and protective packaging from all surfaces
of the unit
3. Place the unit in the desired location.
• Locate the unit in an area where the ambient air
temperature is constant and a minimum of 21° C
(70° F). Avoid areas that may be subject to active air
movements or currents (i.e., near exhaust fans/hoods,
air conditioning ducts, exterior doors).
• Make sure the unit is at the proper counter height in an
area convenient for use.
• Make sure the countertop is level and strong enough to
support the weight of the unit and food product.
• Make sure all the feet on the bottom of the unit are
positioned securely on the countertop.
4. Install the unit. Refer to the appropriate installation
procedure in this section.
Installing HDW-x and HDW-xN Models
HDW-x and HDW-xN models are freestanding units that require
the installation of legs or casters before operation.
1. Remove the plastic bag containing the four legs or casters
from the drawer of the unit.
2. Carefully lay the unit on its side (requires two people).
3. Install each leg or caster. Refer to the appropriate
procedure in this section.
4. Return the unit to its upright position (requires two people).
For units on legs — If the unit is not level or rocks, turn the
adjustable tip of the appropriate leg to level the unit.
Installing Legs
1. Thread a leg into the hole located at one corner of the unit.
2. Hand-tighten the leg until snug. Do not over-tighten.
3. Repeat steps 1 and 2 for the remaining three legs.
Lengthen
Shorten
Adjustable
Tip

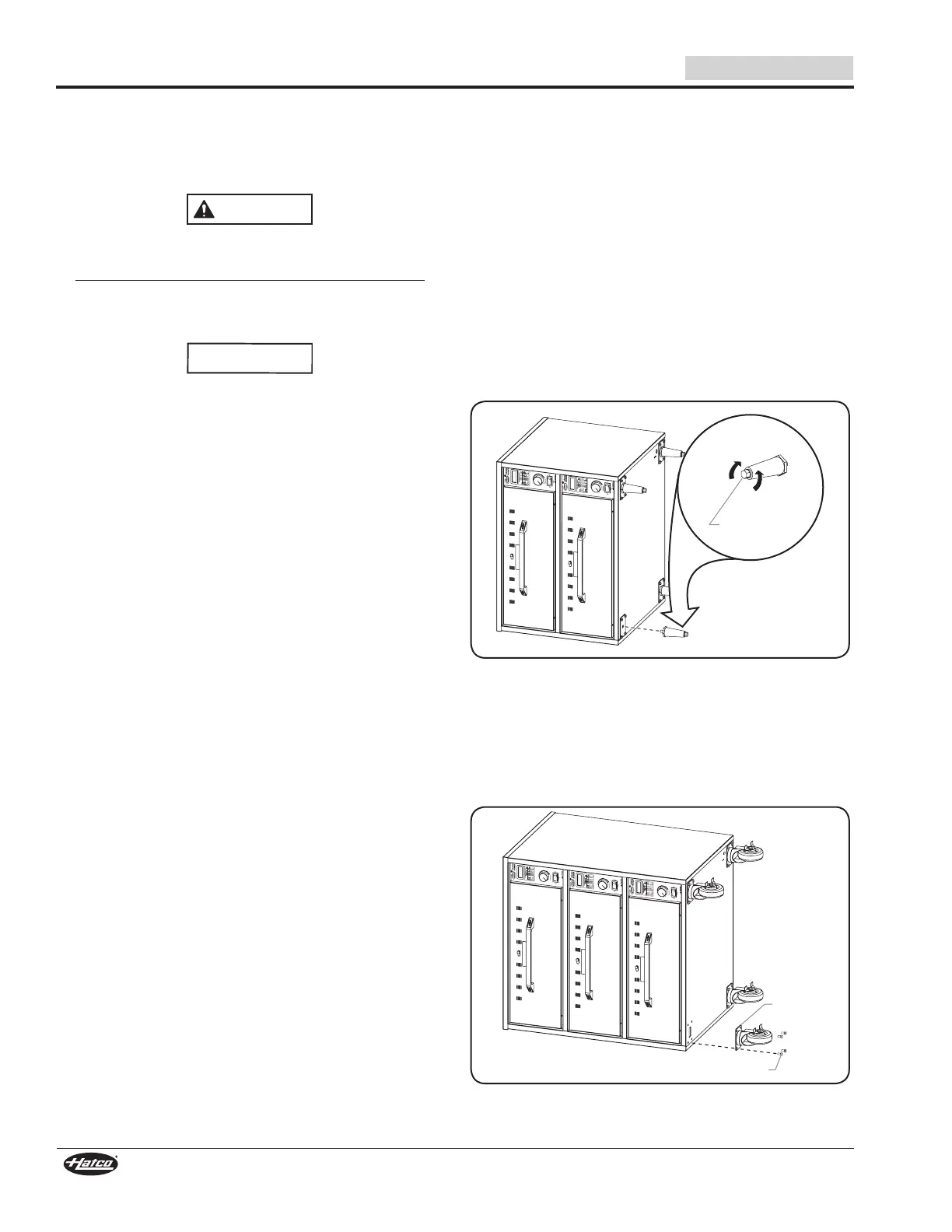

Leg Installation on HDW-2 Model
Installing Casters
1. Align the four holes on the caster plate with the four holes
in the bottom of the unit at one corner of the unit.
2. Install a bolt through each of the holes in the caster plate
and into the bottom of the unit. Tighten securely.
3. Repeat steps 1 and 2 for the remaining three casters.
Caster Installation on HDW-3 Model
