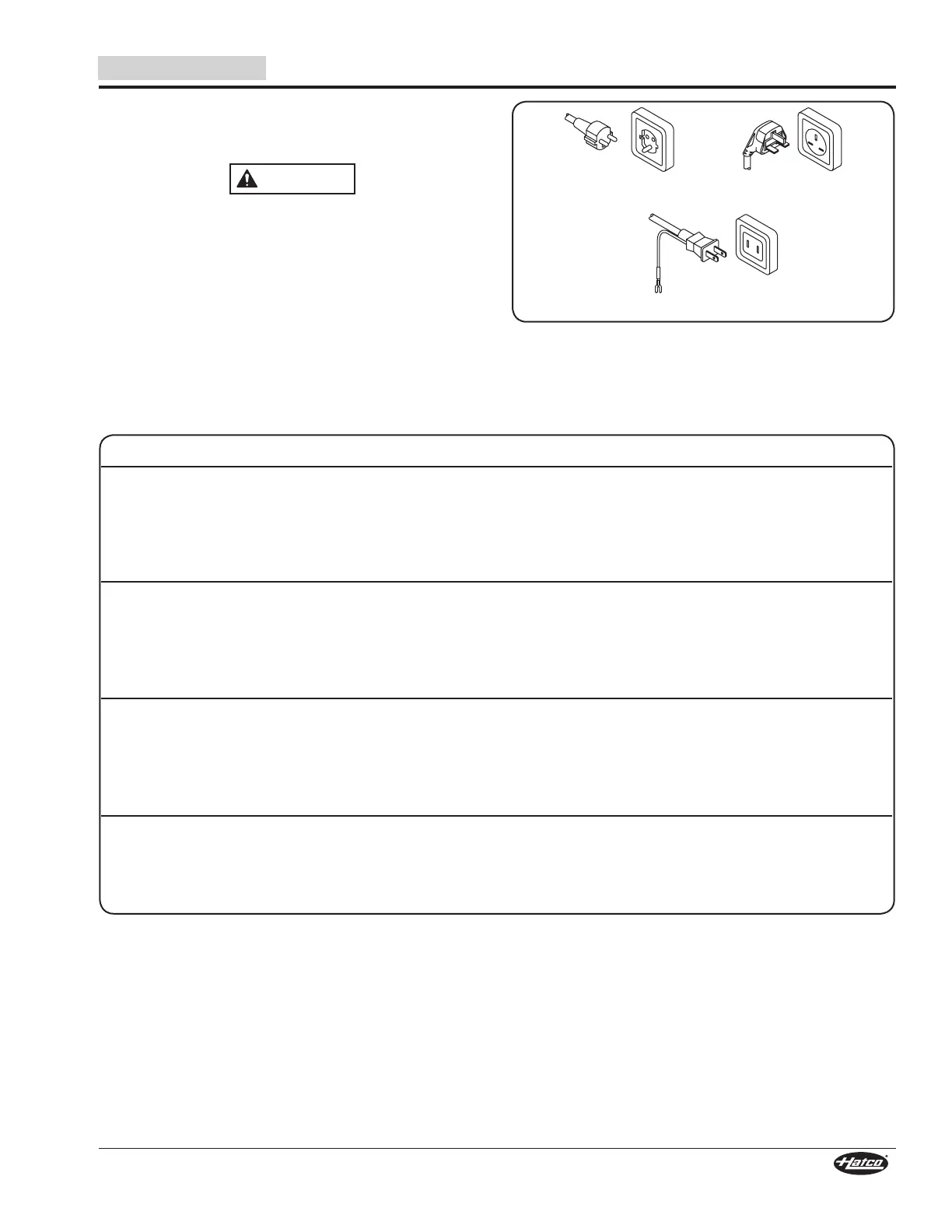

SPECIFICATIONS
Plug Configurations
Units are supplied from the factory with an electrical cord and
plug. Plugs are supplied according to the application.
WARNING
ELECTRIC SHOCK HAZARD: Plug unit into a properly
grounded electrical receptacle of the correct voltage,
size, and plug configuration. If plug and receptacle do not
match, contact a qualified electrician to determine and
install the proper voltage and size electrical receptacle.
NOTE: The specification label is located on the bottom of the
unit. See label for serial number and verification of unit
electrical information.
CEE 7/7 Schuko
BS-1363
JIS C 8303
15 A, 125 V
Plug Configurations
NOTE: Receptacle not supplied by Hatco.
Electrical Rating Chart — HDW-x Models
NOTE: Shipping weight includes packaging.
Model Voltage Watts Amps PlugConguration Shipping Weight
HDW-1 100 450 4.5 JIS C 8303 15 A, 125 V 44 kg (97 lbs.)
220 450 2.0 CEE 7/7 Schuko 44 kg (97 lbs.)
240 450 1.9 BS-1363 44 kg (97 lbs.)
220–230 450–492 2.0–2.1 CEE 7/7 Schuko 44 kg (97 lbs.)
230–240 413–450 1.8–1.9 BS-1363 44 kg (97 lbs.)
HDW-2 100 900 9.0 JIS C 8303 15 A, 125 V 76 kg (168 lbs.)
220 900 4.1 CEE 7/7 Schuko 76 kg (168 lbs.)
240 900 3.8 BS-1363 76 kg (168 lbs.)
220–230 900–984 4.1–4.3 CEE 7/7 Schuko 76 kg (168 lbs.)
230–240 826–900 3.6–3.8 BS-1363 76 kg (168 lbs.)
HDW-3 100 1350 13.5 JIS C 8303 15 A, 125 V 105 kg (232 lbs.)
220 1350 6.1 CEE 7/7 Schuko 105 kg (232 lbs.)
240 1350 5.6 BS-1363 105 kg (232 lbs.)
220–230 1350–1476 6.1–6.4 CEE 7/7 Schuko 105 kg (232 lbs.)
230–240 1239–1350 5.4–5.6 BS-1363 105 kg (232 lbs.)
HDW-4 220 1800 8.2 CEE 7/7 Schuko 135 kg (296 lbs.)
240 1800 7.5 BS-1363 135 kg (296 lbs.)
220–230 1800–1968 8.2–8.6 CEE 7/7 Schuko 135 kg (296 lbs.)
230–240 1653–1800 7.2–7.5 BS-1363 135 kg (296 lbs.)
