Hatco TPT Series User Manual

Form No. TPTM-1107
3

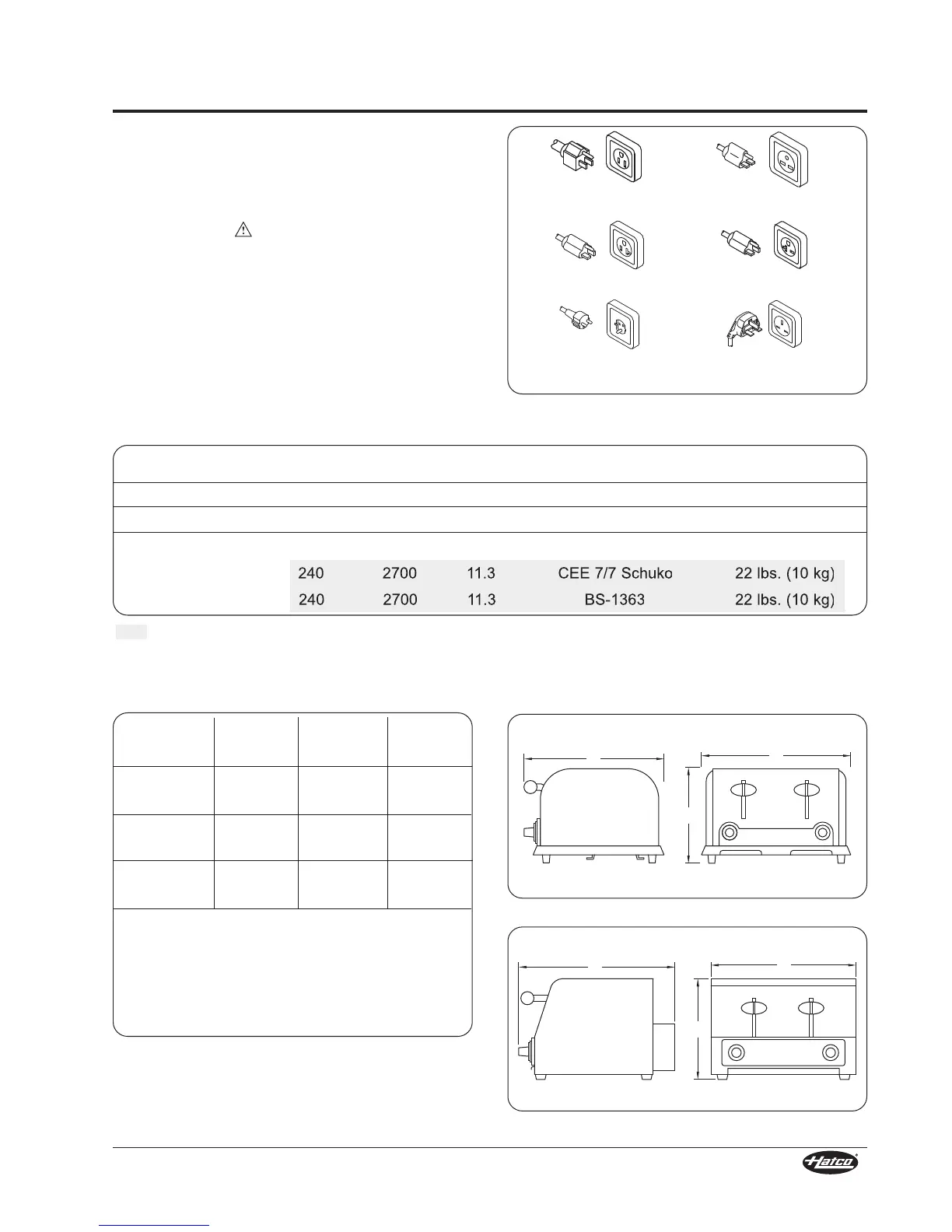

SPECIFICATIONS
Model Voltage Watts Amps Plug Configuration Shipping Weight
TPT-120 120 1800 15.0 NEMA 5-15P• 10 lbs. (5 kg)
TPT-208 208 2700 13.0 NEMA 6-15P† 22 lbs. (10 kg)
TPT-240 240 2700 11.3 NEMA 6-15P 22 lbs. (10 kg)
240 2700 11.3 CEE 7/7 Schuko 22 lbs. (10 kg)
240 2700 11.3 BS-1363 22 lbs. (10 kg)
ELECTRICAL RATING CHART
PLUG CONFIGURATIONS
Units are supplied from the factory with an electrical
cord and plug installed. Plugs are supplied
according to the applications. (See Figure 3.)
To ensure safe and proper operation, plug unit
into a properly grounded electrical outlet of the
correct voltage, size, and plug configuration. If
the plug and receptacle do not match, contact a
qualified electrician to determine and install the
proper voltage and size electrical outlet.
WARNING
DIMENSIONS
Figure 3. Plug Configurations
NEMA 5-15P
NEMA 5-20P
NEMA 6-15P
NEMA 6-20P
B
A
C
Width Depth Height
Model (A) (B) (C)
TPT-120 13-1/2" 12-3/4" 8-1/4"
(343 mm) (324 mm) (210 mm)
TPT-208 13-1/2" 14-1/8" 9-1/4"
(343 mm) (359 mm) (232 mm)
TPT-240 13-1/2" 14-1/8" 9-1/4"
(343 mm) (359 mm) (232 mm)
TPT-120 Slot Openings = 1-1/2" W x 5-1/4" D
(38 mm x 133 mm)
TPT-208 and
TPT-240 Slot Openings = 1-3/8" W x 5-1/4" D
(35 mm x 133 mm)
Figure 4. TPT-120 Dimensions
CEE 7/7 Schuko
BS-1363
B
A
C
Figure 5. TPT-208 and TPT-240 Dimensions
The shaded area contains electrical information for Export models only.
• NEMA 5-20P for Canada, † NEMA 6-20P for Canada
NOTE: Receptacle not supplied by Hatco.
