Setting method for three and four cylinder engines
Type Valve no.... fully
opened
Check the valves of
the ... cylinder
3-cylinder
1
5
3
3rd cylinder
2nd cylinder
1st cylinder
4-cylinder
1
5
7
3
3rd cylinder
4th cylinder
2nd cylinder
1st cylinder

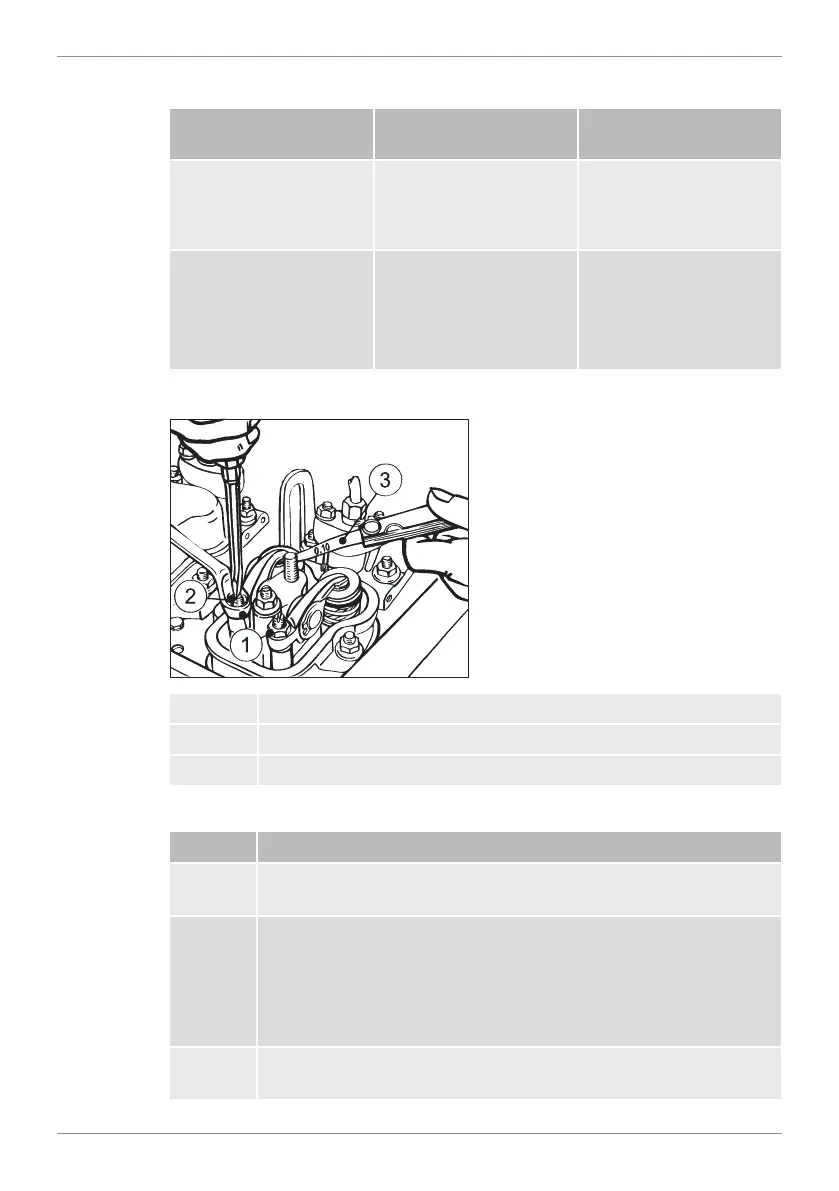

Overview — Adjusting the tappet clearance
1 Hexagon nut
2 Adjusting screw
3 Feeler gage
Procedure — Adjusting the tappet clearance
Step Activity
1 Check the tappet clearance with the feeler gauge (3). For the
setting, see the chapter 4 Technical data, page 21
2 If the tappet clearance needs to be corrected:
▪ Release the hex nut (1).
▪ Turn the adjustment screw (2) so the feeler gauge (3) can be
pulled through with a barely perceptible resistance after the
hex nut (1) is tightened again.
3 Repeat the above procedure for the entire valve area, taking
special care to use the described adjustment method.
