Maintenance 2-4L41C, 2-4M41(Z), 4L42C, 4M42
94
HATZ
Manual

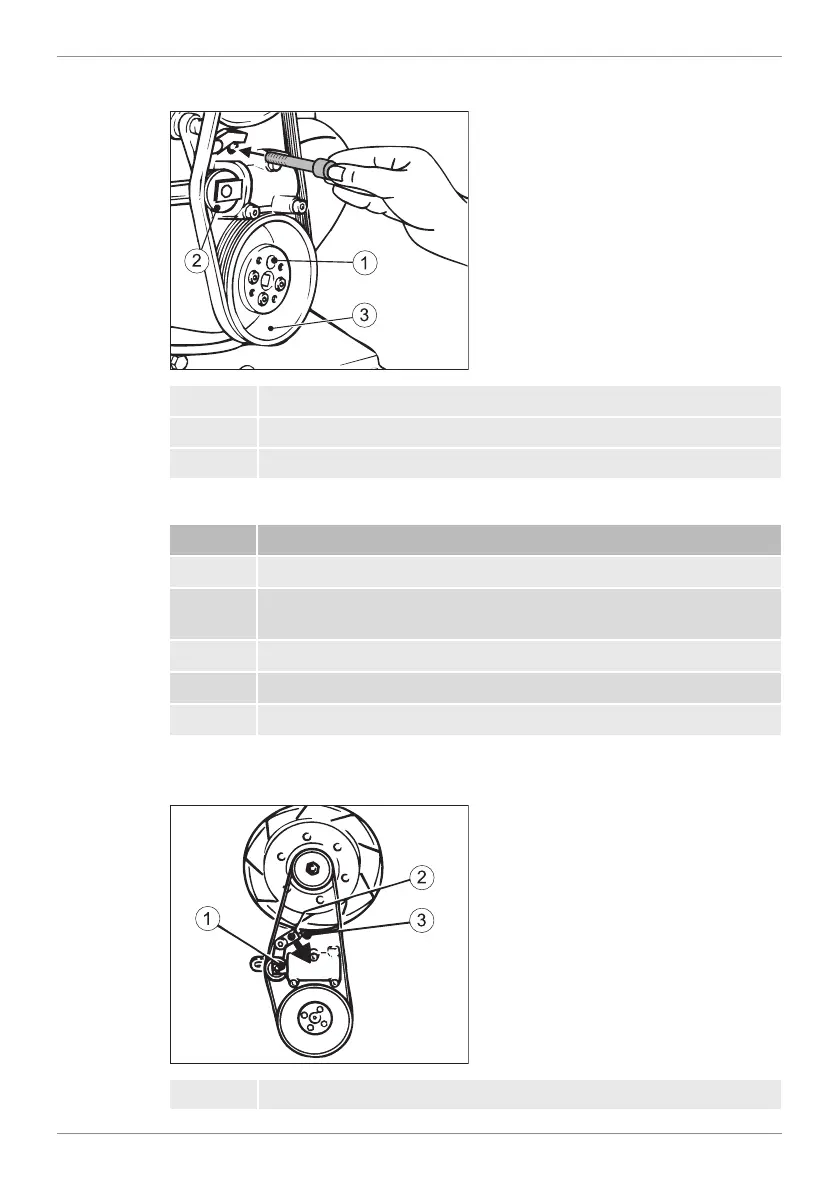

Overview — Removing the poly v-belt
1 Cylinder screw
2 Tension pulley
3 Pulley
Procedure — Removing the poly v belt
Step Activity
1 Unscrew one cylinder screw (1) from the pulley (3).
2 Push back the tension pulley (2) and lock it using the cylinder
screw (1).
3 Unscrew the pulley (3).
4 Check the pulley (3) for broken or bent grooves.
5 Remove the poly v belt.
Overview — Checking the function of the switch-off unit of the belt monitor-
ing system
1 Tension pulley
