INSTRUCTIONS ON THE INSTALLATION OF THE EXHAUST SYSTEM
Following are the instructions to properly install the exhaust system and re-
lated components consistent with the EPA emission regulation requirements.
2G40, 2G40 H
Exhaust-silencers and protection guard
The exhaust silencer is fitted in connection with spring washers. Fixation is
done by Allen screws.
Dismantling:

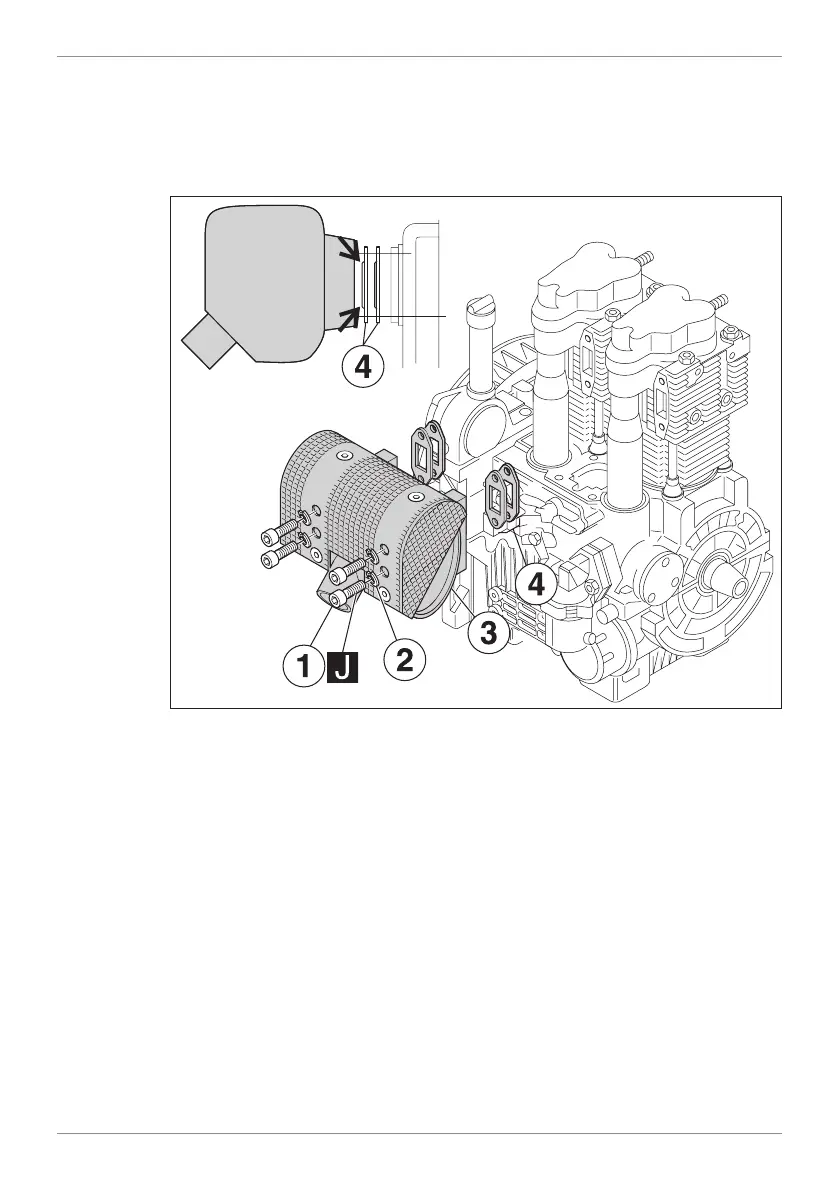

▪ Remove in numerical sequence 1...4.
Assembly:
▪ Assemble in reverse sequence.
▪ Apply lubricant as specified by HATZ.
▪ Ensure gasket-kit is fitted in correct sequence i.e. the creased gaskets 4
face towards exhaust silencer.
▪ Use anti-seize compound J as specified by HATZ.
