SAMPLING OF EXHAUST EMISSIONS
After the engine is installed in the equipment and placed in service, the sam-
pling of exhaust emissions can be performed in a way that prevents diluting
the exhaust sample with ambient air as follows:

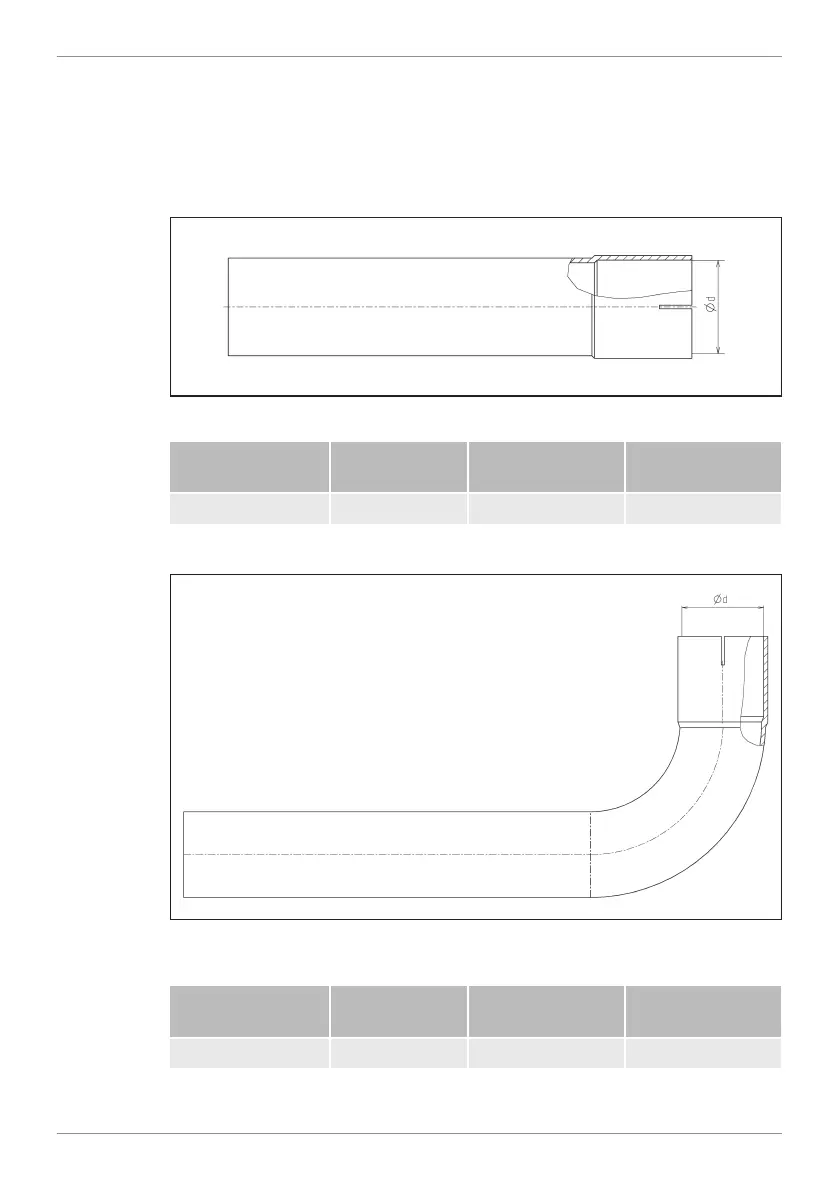

Version 1
Specification 1: Adding a 20-centimeter linear extension to the exhaust pipe.
Engine type Ø d (mm)
Version 1
HATZ-Ident. Nr.
Clamp
HATZ-Ident. Nr.
2G40 / 2G40H 40 0000 830 582 00 0000 503 398 00
Version 2
Specification 2: Adding a 20-centimeter bended extension to the exhaust
pipe.
Engine type Ø d (mm)
Version 2
HATZ-Ident. Nr.
Clamp
HATZ-Ident. Nr.
2G40 / 2G40H 40 0000 830 853 00 0000 503 398 00
