– 35 –
10 IN. TABLE SAW MODEL NO. BT2503RN

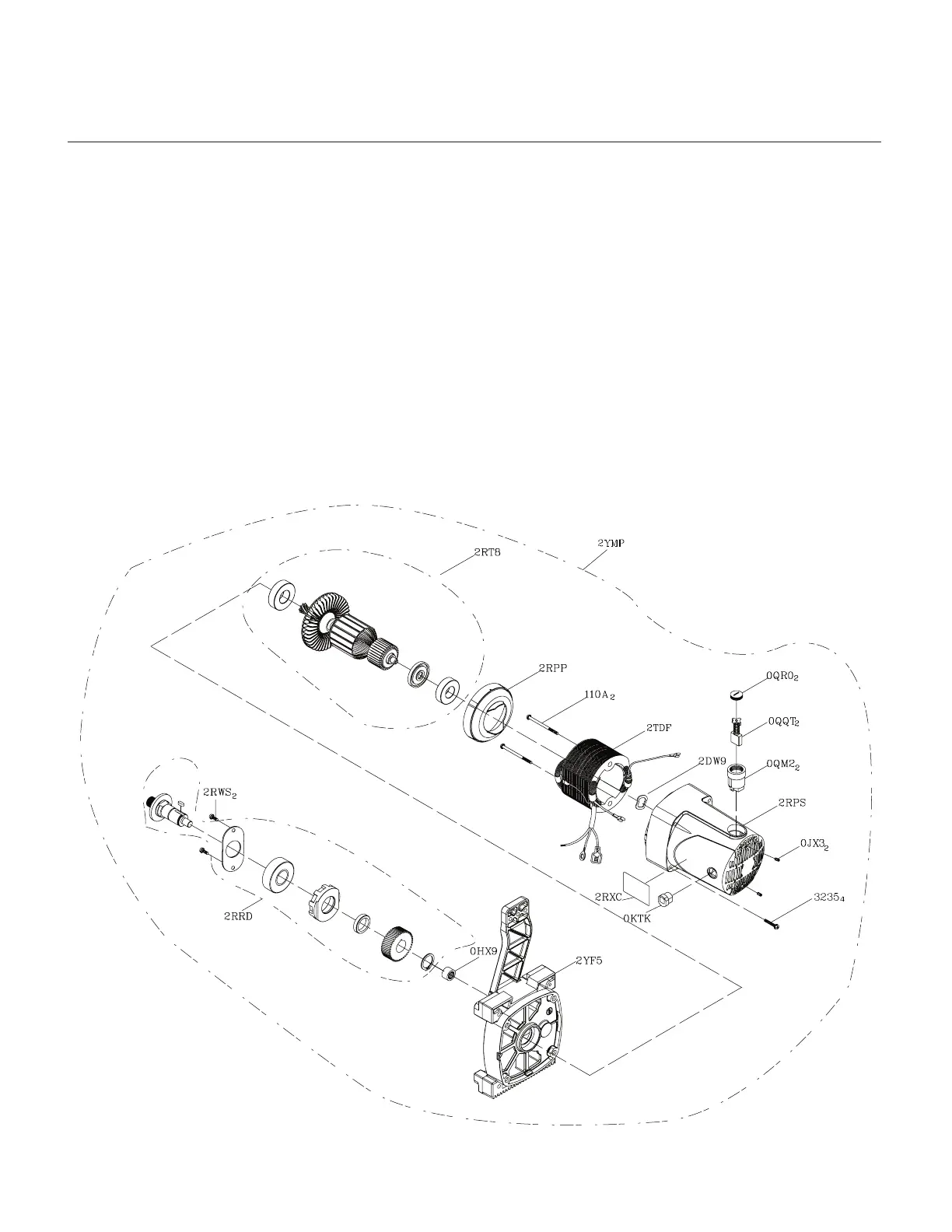

MOTOR
I.D. NO. Description Size QTY
0HX9 NEEDLE BEARING 1
0JX3 HEX. SOC. SET SCREW M5*0.8-8 2
0KTK STRAIN RELIEF 1
0QM2 BRUSH HOLDER ASS’Y 2
0QQT BRUSH ASS’Y 2
0QR0 BRUSH COVER 2
110A CR.-RE.PAN HD.TAPPING SCREW & WASHER M5*12-55 2
2DW9 WAVE WASHER BWW-608 1
2RPP FLOW GUIDE 1
2RPS MOTOR COVER 1
2RRD CUTTER SHAFT ASS’Y 1
2RT8 ARMATURE ASS’Y 1
2RWS CROSS-RECESSED COUNTER-SUNK HEAD SCREW M5*0.8-10 2
2RXC LABEL 1
2TDF FIELD ASS’Y 1
2YMP MOTOR ASS’Y 1
2YF5 BRACKET 1
3235 CR.RE. PAN HD. SCREW & WASHER M5*0.8-55 4
