⑥Close the pump door & setting the parameters; Press BOLUS key to exhaust air bubble; Press START
key to start infusion; Press STOP Key to stop infusion.

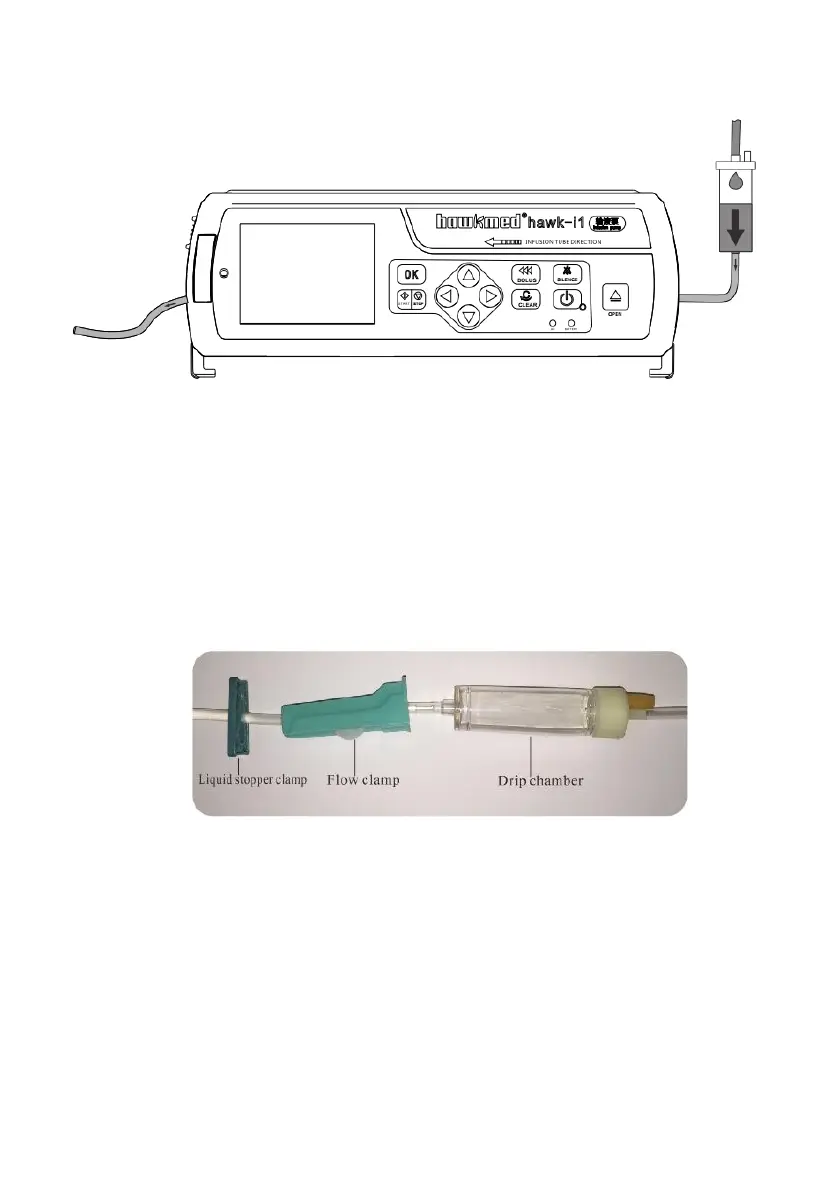

When using Hawkmed dedicated infusion set (Fig. 4) , please make sure the correct installation of
infusion set (as shown in Fig. 5).
If the green indicator light is not on, follow “Step 8.1.5 Purge” to purge all the air inside the tube. Then the
green indicator light shall be on.
(Fig. 4: Hawkmed dedicated infusion set)
