LIFE
PLUS
MOD
3
Owner’s Manual
AM
-HLPM3-
OM
Rev AB September 2019
34

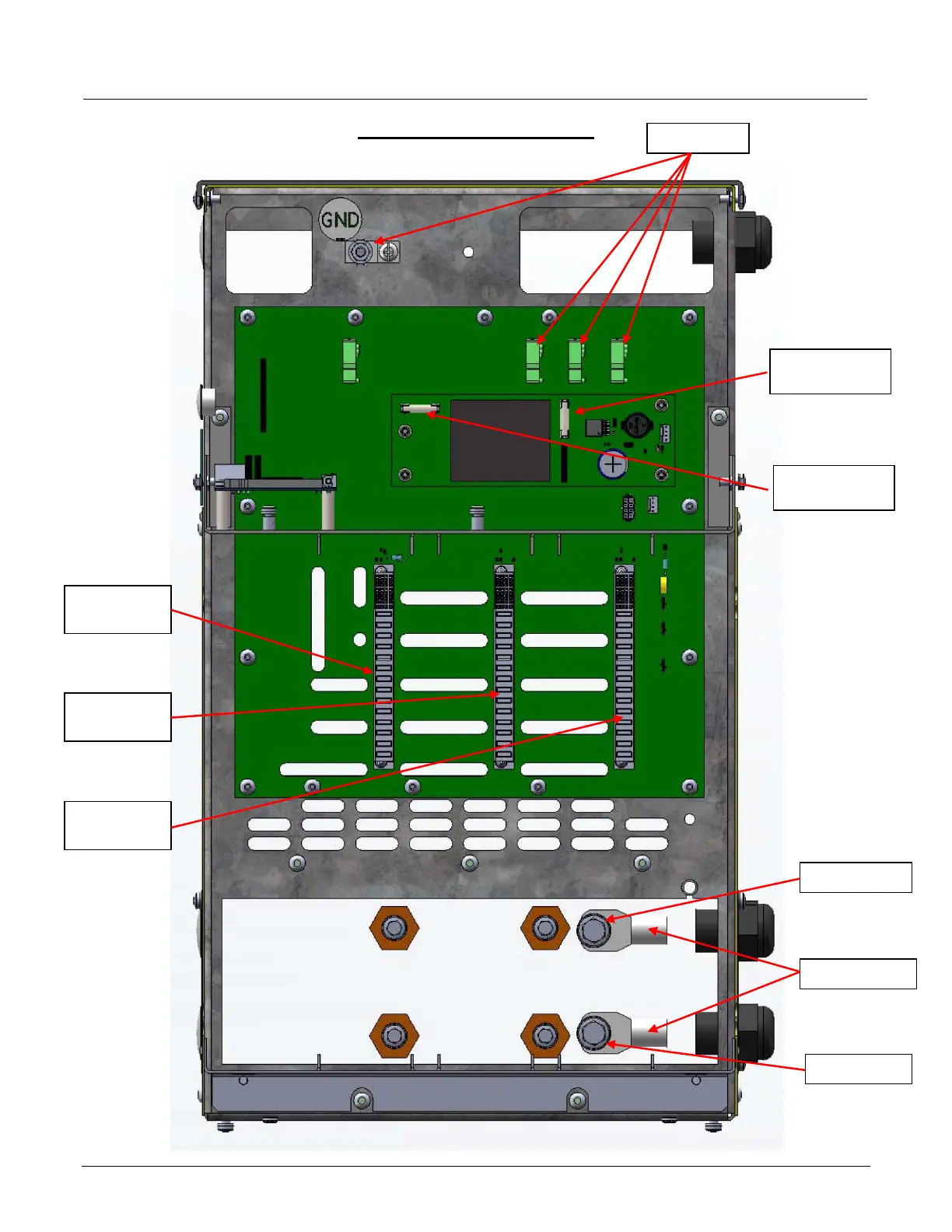

COMPONENT LOCATIONS
AC INPUT
MODULE 3
SLOT
MODULE 2
SLOT
MODULE 1
SLOT
DC OUTPUT
Power Board
AC FUSE
62 in.lbs
62 in.lbs
Power Board
DC FUSE
34
36
Table of Contents
Default Chapter
2
Table of Contents
2
Important Safety Instructions
4
Technical Information
5
Part Number
5
Cabinet Size/Gauge Letter Codes
5
AC Line Voltage Letter Codes
6
Specialty Charger Options List
6
Serial no
6
Battery Type
6
Max AH
6
No. Cells
6
Max Modules
6
Config Modules
6
Hertz
7
Phase
7
AC Volts
7
Config AC Amps
7
Max AC Amps
7
Max DC Amps
7
DC Volts
7
Config DC Amps
7
Cec
7
Culus
7
Installation
8
Location
8
Wall/Floor Mount Cabinet Chargers
8
Electrical Connections
8
Connecting Input Power
8
AC Circuit Protection
8
Breaker/Fuse Chart
8
DC Plug Polarity
9
Grounding the Charger
9
Description of Operation
10
General
10
Auto Start Charge
10
Charging Current
10
AC Power Fail
10
Series Charging
10
Glossary
11
Battery Boss WC (BBWC™)
11
Block out Time
11
Charging Profile
11
Thin Plate Pure Lead (TPPL)
11
Flex Bloc Profile
11
Flex Standard Profile
11
Flex Fast Profile
11
Cold Storage
11
Equalization Charging
11
Ionic Profile
12
OPPOR Profile
12
Refresh Charging
12
Abbreviations and Acronyms
12
Operating Instructions
13
Control Panel
14
Menu Access
14
Idle Screen
15
Main Menu Display
15
Main Menu
15
System Setup
16
Date
16
Time
16
Language
16
Displayed Units
16
Energy Saver
16
Display Brightness
16
Network
16
Reset History
16
Enter Password
16
Change Password
17
Usb
17
History Data
17
Save Setup Parameters
17
Load Setup Parameters
18
Load Control Firmware
18
Load Module Firmware
18
Charge Profile Configuration
18
Battery Capacity
18
Auto Capacity
18
Battery Temperature
18
High Battery Temperature
18
Restart Temperature
18
Charge Profile
19
Ionic Charge Coefficient
19
AGV Offset
19
Constant Current Configuration
19
Equalize Configuration
19
Equalize Days
19
Equalize Time
19
Equalize Duration
20
Start Charge Configuration
20
Charge Delay
20
Charge Blockout
20
Condition Charge
20
Opportunity Daily Charge
20
Post Charge Configuration
20
Cool down On/Off
20
Cool down Time
20
Float On/Off
21
Float Current
21
Refresh On/Off
21
Charger Configuration
21
Cabinet Bay Size
21
Number of Modules
21
Module Type
21
72/80V Module Battery Voltage
21
DC Cable Setup
21
Charger Options
21
BBWC Communications
22
Electrovalve
22
Enter Charger Serial Number
22
Customer Asset Number
22
Notice Regarding Cold Profile
22
Charging the Battery
23
Charger Idle Display
23
Starting a Charge Cycle
23
Delayed Start
23
Count down
24
Charging Display
25
End of Charge Display
26
Equalization
26
Manual Equalize
26
Automatic Equalize
26
Charger Information
27
Charger Serial
27
Asset
27
Connects
27
Complete Equalizes
27
Complete Charges
27
AH Returned
27
Faults
28
Modules
29
Module Status Display
29
Info
29
Module Information
29
Module LED Status
29
Mounting Dimensions
30
3 Bay Wall Mounting Dimensions
30
6 Bay Wall Mounting Dimensions
32
Maintenance and Service
34
Component Locations
35
Technical Specifications for 208/220/240V
37
Technical Specifications for 440V
40
Technical Specifications for 480V
44
Technical Specifications for 600V
47
Maintenance Log
49
