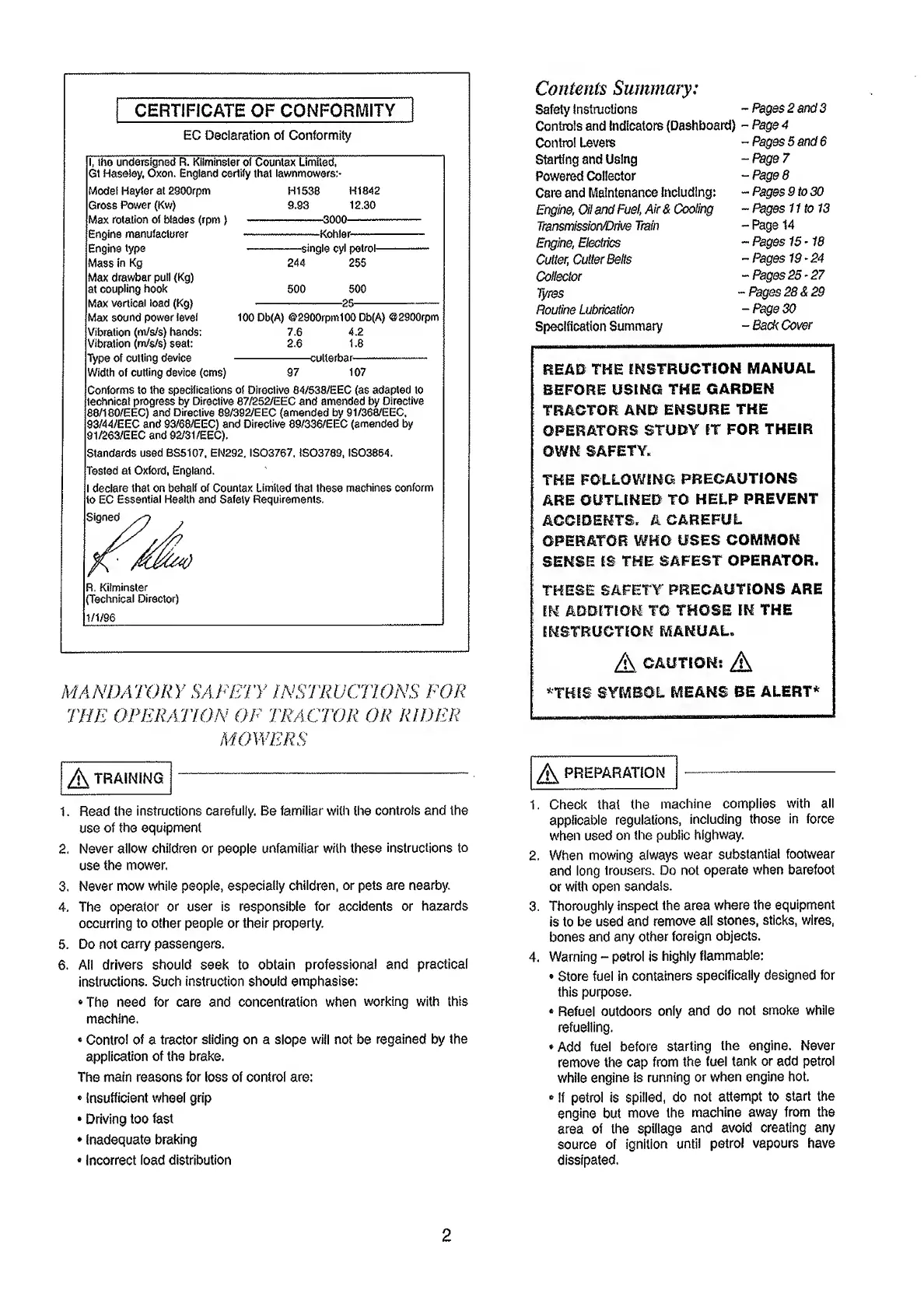

CERTIFICATE OF CONFORMITY
EC Declaration of Conformity
I, the undersigned R. Kilminsler of Countax Limited,
Gl Haseley, Oxon. England certify that lawnmowers;-
HI538 HI842 Model Hayfer at 2800rpin
Gross Power (Kv/)
Max rotation of blades (rpm)
Engine manufacturer
Engine type
Mass in Kg
Max drawbar pull (Kg)
at coupling hook
Max vertical load (Kg)
Max sound power level
Vibration (m/s/s) hands;
Vibration (m/s/s) seat:
Type of cutting device
Width of cutting device (cms)
9.83
12.30
-3000-
“Kohler-
—single cyl petrol-
244 255
500 500
-25—
100 Db(A) @2900rpm100 Db(A} «2900rpm
7.6 4.2
2.6 1.8
-culterbar-
97 107
Conforms to the specifications of Directive 84/638/EEC (as adapted to
technical progress by Directive 87/252/EEC and amended by Directive
88/180/EEC) and Directive 88/392/EEC (amended by 91/368/EEC.
93/44/EEC and 93/68/EEC) and Directive 89/336/EEC (amended by
91/263/EEC and 92/31/EEC).
Standards used BS5107. EN292. IS03767. IS03789. IS03864.
Tested at Oxford, England.
I declare that on behalf of Countax Limited that these machines conform
to EC Essential Health and Safely Requirements.
Signed
R. Kilminster
(Technical Director)
1/1/96
h'tANDATORY SAFETY iNSTRlJCTIONS FOR
THE OPERATION OF TRACTOR OR RIDER
MOWERS
^TRAINING -
1. Read the instructions carefully. Be familiar with the controls and the
use of the equipment
2. Never allow children or people unfamiliar with these instructions to
use the mower.
3. Never mow while people, especially children, or pets are nearby.
4. The operator or user is responsible for accidents or hazards
occurring to other people or their property.
5. Do not carry passengers.
6. All drivers should seek to obtain professional and practical
instructions. Such instruction should emphasise:
• The need for care and concentration when working with this
machine.
• Control of a tractor sliding on a slope will not be regained by the
application of the brake.
The main reasons for toss of control are:
• Insufficient wheel grip
• Driving too fast
• Inadequate braking
• Incorrect load distribution
Contents Summary:
Safely tnstrucUons ~ Pages 2 and 3
Controls and Indicators (Dashboard) - Page 4
Control Levers - Pages 5 and 6
Starting and Using - Page 7
Powered Collector - Page 8
Care and Maintenance Including: - Pages 5 to 30
Engine, Oil and Fuel, Air & Cooling ~ Pages 11 to 13
Transmission/Diive Train - Page 14
Engine, Electrics ~ Pages 15 -16
Cutter, Cutter Belts - Pages 19-24
Collector - Pages 25 * 27
Tyres ~ Pages 28 & 29
Routine Lubrication - Page 30
Specification Summary - Back Cover
READ THE INSTRUCTION MANUAL
BEFORE USING THE GARDEN
TRACTOR AND ENSURE THE
OPERATORS STUDY IT FOR THEIR
OWN SAFETY.
THE FOLLOWING PRECAUTIONS
ARE OUTLINED TO HELP PREVENT
ACCIDENTS. A CAREFUL
OPERATOR WHO USES COMMON
SENSE IS THE SAFEST OPERATOR.
THESE SAFETY PRECAUTIONS ARE
IN ADDITION TO THOSE IN THE
INSTRUCTION MANUAL.
^ CAUTION: ^
*THIS SYMBOL MEANS BE ALERT*
PREPARATION-
1. Check that the machine complies with ail
applicable regulations, including those in force
when used on the public highway.
2. When mowing always wear substantial footwear
and long trousers. Do not operate when barefoot
or with open sandals.
3. Thoroughly inspect the area where the equipment
is to be used and remove all stones, sticks, wires,
bones and any other foreign objects.
4. Warning - petrol is highly flammable:
• Store fuel in containers specifically designed for
this purpose.
• Refuel outdoors only and do not smoke while
refuelling.
• Add fuel before starting the engine. Never
remove the cap from the fuel tank or add petrol
while engine is running or when engine hot,
• If petrol is spilled, do not attempt to start the
engine but move the machine away from the
area of the spillage and avoid creating any
source of ignition until petrol vapours have
dissipated.
