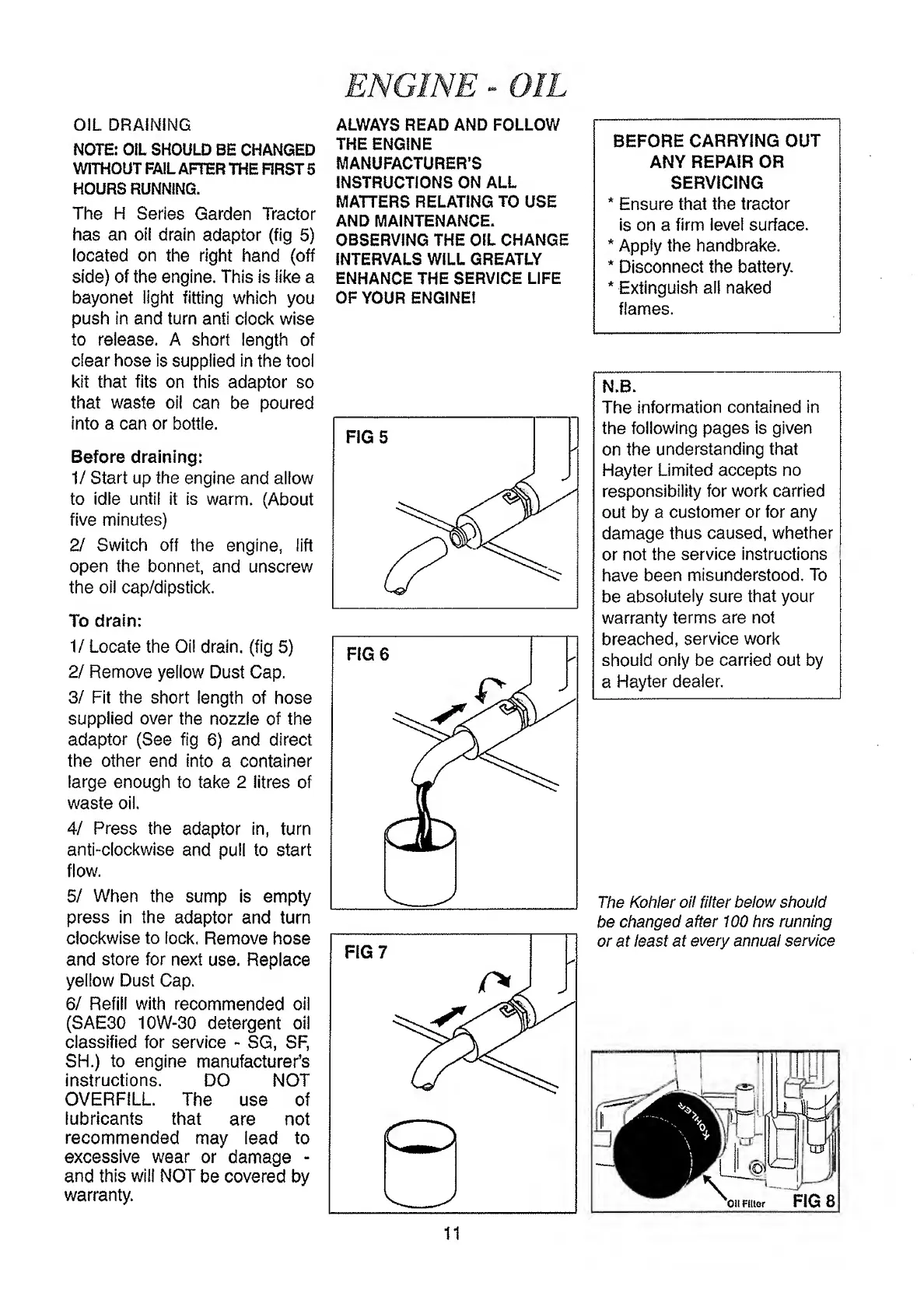

OIL DRAINING
NOTE: OIL SHOULD BE CHANGED
WITHOUT FAIL AFTER THE FIRST 5
HOURS RUNNING.
The H Series Garden Tractor
has an oil drain adaptor (fig 5)
located on the right hand (off
side) of the engine. This is like a
bayonet light fitting which you
push in and turn anti clock wise
to release. A short length of
clear hose is supplied in the tool
kit that fits on this adaptor so
that waste oil can be poured
into a can or bottle.
Before draining:
1/ Start up the engine and allow
to idle until it is warm. (About
five minutes)
2/ Switch off the engine, lift
open the bonnet, and unscrew
the oil cap/dipstick.
To drain:
1/ Locate the Oil drain, (fig 5)
2/ Remove yellow Dust Cap.
3/ Fit the short length of hose
supplied over the nozzle of the
adaptor (See fig 6) and direct
the other end into a container
large enough to take 2 litres of
waste oil.
4/ Press the adaptor in, turn
anti-clockwise and pull to start
flow.
5/ When the sump is empty
press in the adaptor and turn
clockwise to lock. Remove hose
and store for next use. Replace
yellow Dust Cap.
6/ Refill with recommended oil
(SAE30 10W-30 detergent oil
classified for service - SG, SF,
SH.) to engine manufacturer’s
instructions. DO NOT
OVERFILL. The use of
lubricants that are not
recommended may lead to
excessive wear or damage -
and this will NOT be covered by
warranty.
ALWAYS READ AND FOLLOW
THE ENGINE
MANUFACTURER’S
INSTRUCTIONS ON ALL
MATTERS RELATING TO USE
AND MAINTENANCE.
OBSERVING THE OIL CHANGE
INTERVALS WILL GREATLY
ENHANCE THE SERVICE LIFE
OF YOUR ENGINE!
BEFORE CARRYING OUT
ANY REPAIR OR
SERVICING
* Ensure that the tractor
is on a firm level surface.
* Apply the handbrake.
* Disconnect the battery.
* Extinguish all naked
flames.
N.B.
The information contained in
the following pages is given
on the understanding that
Hayter Limited accepts no
responsibility for work carried
out by a customer or for any
damage thus caused, whether
or not the service instructions
have been misunderstood. To
be absolutely sure that your
warranty terms are not
breached, service work
should only be carried out by
a Hayter dealer.
The Kohler oil filter below should
be changed after 100 hrs running
or at least at every annual service
11
