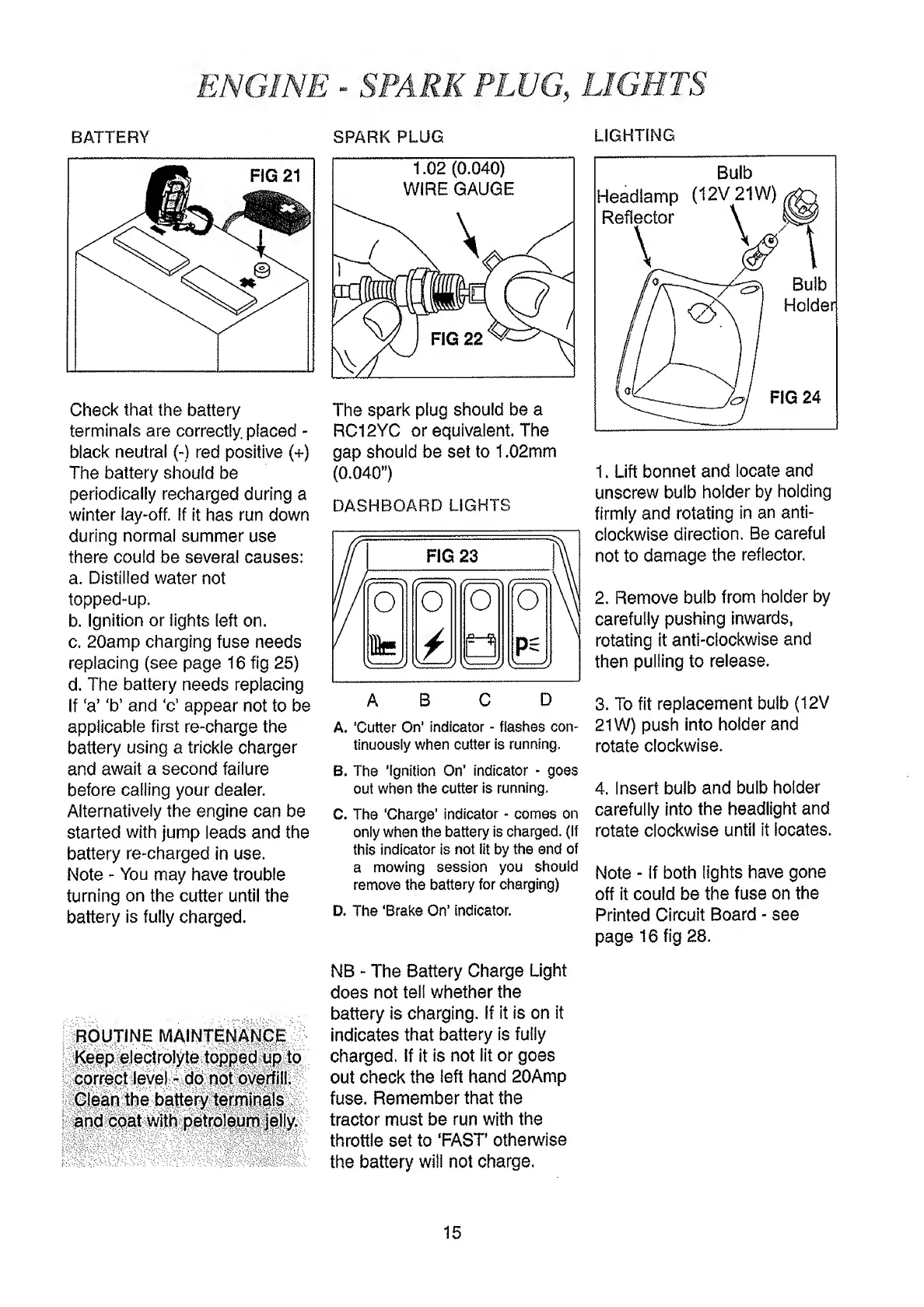

BATTERY
Check that the battery
terminals are correctly, placed -
black neutral (-) red positive (+)
The battery should be
periodically recharged during a
winter lay-off. If it has run down
during normal summer use
there could be several causes:
a. Distilled water not
topped-up.
b. Ignition or lights left on.
c. 20amp charging fuse needs
replacing (see page 16 fig 25)
d. The battery needs replacing
If ‘a’ ‘b’ and ‘c’ appear not to be
applicable first re-charge the
battery using a trickle charger
and await a second failure
before calling your dealer.
Alternatively the engine can be
started with jump leads and the
battery re-charged in use.
Note - You may have trouble
turning on the cutter until the
battery is fully charged.
ROUTINE MAINTENANCE
Keep electrolyte topped up to
correct level - do not overfill.
Clean the battery terminals
: and coat with petroleum jelly.
SPARK PLUG
The spark plug should be a
RC12YC or equivalent. The
gap should be set to 1.02mm
(0.040”)
DASHBOARD LIGHTS
A. ‘Cutter On’ indicator - flashes con¬
tinuously when cutter is running.
B. The 'Ignition On’ indicator - goes
out when the cutter is running.
C. The ‘Charge’ indicator - comes on
only when the battery is charged. (If
this indicator is not lit by the end of
a mowing session you should
remove the battery for charging)
D. The ‘Brake On’ Indicator.
NB - The Battery Charge Light
does not tell whether the
battery is charging. If it is on it
indicates that battery is fully
charged. If it is not lit or goes
out check the left hand 20Amp
fuse. Remember that the
tractor must be run with the
throttle set to ‘FAST’ otherwise
the battery will not charge.
LIGHTING
1. Lift bonnet and locate and
unscrew bulb holder by holding
firmly and rotating in an anti¬
clockwise direction. Be careful
not to damage the reflector.
2. Remove bulb from holder by
carefully pushing inwards,
rotating it anti-clockwise and
then pulling to release.
3. To fit replacement bulb (12V
21W) push into holder and
rotate clockwise.
4. Insert bulb and bulb holder
carefully into the headlight and
rotate clockwise until it locates.
Note - If both lights have gone
off it could be the fuse on the
Printed Circuit Board - see
page 16 fig 28.
15
