Hayter H Series User Manual

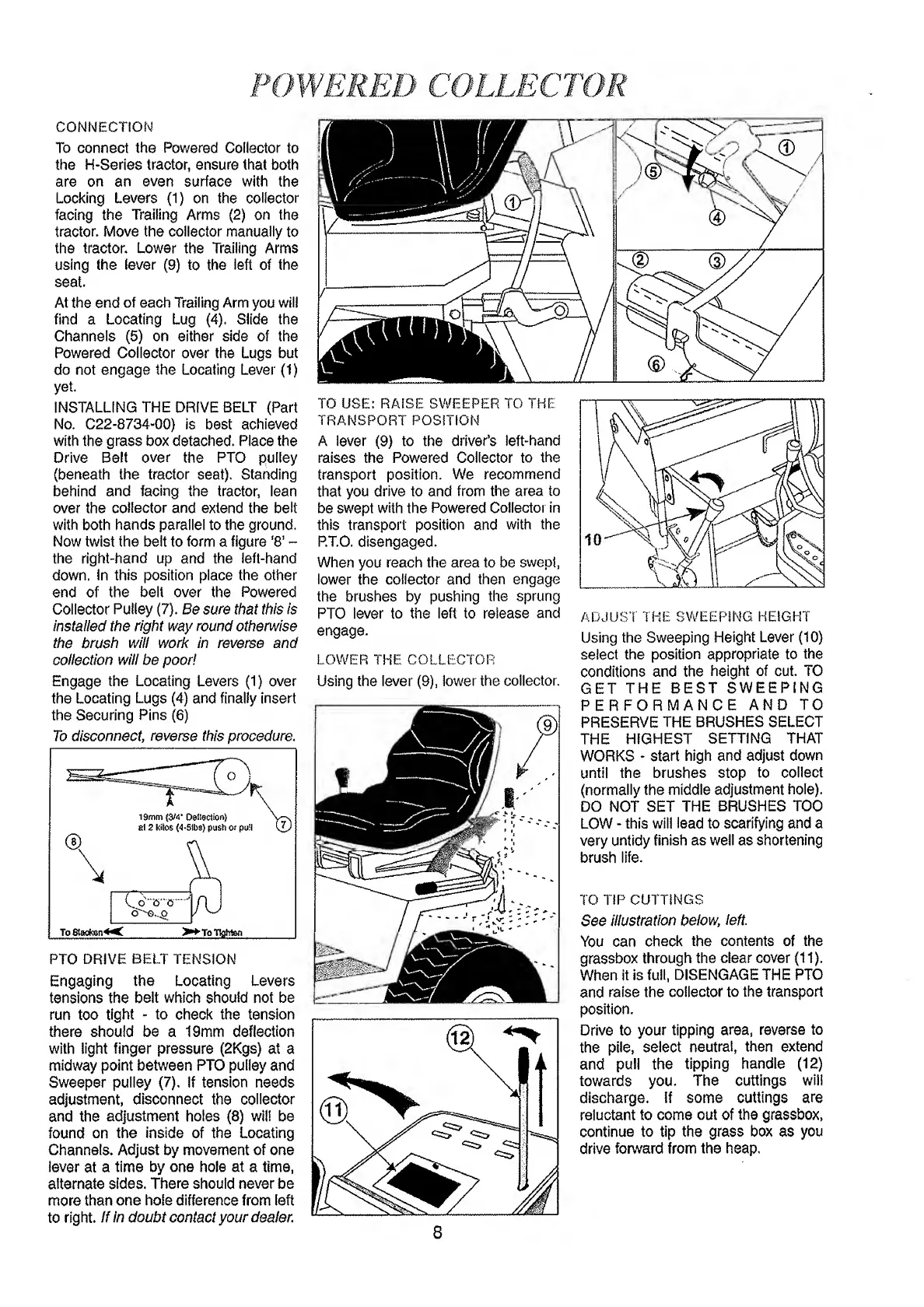

CONNECTION
To connect the Powered Collector to
the H-Series tractor, ensure that both
are on an even surface with the
Locking Levers (1) on the collector
facing the Trailing Arms (2) on the
tractor. Move the collector manually to
the tractor. Lower the Trailing Arms
using the lever (9) to the left of the
seat.
At the end of each Trailing Arm you will
find a Locating Lug (4). Slide the
Channels (5) on either side of the
Powered Collector over the Lugs but
do not engage the Locating Lever (1)
yet.
INSTALLING THE DRIVE BELT (Part
No. C22-8734>00) is best achieved
with the grass box detached. Place the
Drive Belt over the PTO pulley
(beneath the tractor seat). Standing
behind and facing the tractor, lean
over the collector and extend the belt
with both hands parallel to the ground.
Now twist the belt to form a figure ‘8’ -
the right-hand up and the left-hand
down. In this position place the other
end of the belt over the Powered
Collector Pulley (7). Be sure that this is
installed the right way round otherwise
the brush will work in reverse and
collection will be poor!
Engage the Locating Levers (1) over
the Locating Lugs (4) and finally insert
the Securing Pins (6)
To disconnect, reverse this procedure.
PTO DRIVE BELT TENSION
Engaging the Locating Levers
tensions the belt which should not be
run too tight - to check the tension
there should be a 19mm deflection
with light finger pressure (2Kgs) at a
midway point between PTO pulley and
Sweeper pulley (7). If tension needs
adjustment, disconnect the collector
and the adjustment holes (8) will be
found on the inside of the Locating
Channels. Adjust by movement of one
lever at a time by one hole at a time,
alternate sides. There should never be
more than one hole difference from left
to right. If in doubt contact your dealer.
TO USE: RAISE SWEEPER TO THE
TRANSPORT POSITION
A lever (9) to the driver’s left-hand
raises the Powered Collector to the
transport position. We recommend
that you drive to and from the area to
be swept with the Powered Collector in
this transport position and with the
P.T.O. disengaged.
When you reach the area to be swept,
lower the collector and then engage
the brushes by pushing the sprung
PTO lever to the left to release and
engage.
LOWER THE COLLECTOR
Using the lever (9), lower the collector.
8
ADJUST THE SVv'EEPlNG HEIGHT
Using the Sweeping Height Lever (10)
select the position appropriate to the
conditions and the height of cut. TO
GET THE BEST SWEEPING
PERFORMANCE AND TO
PRESERVE THE BRUSHES SELECT
THE HIGHEST SETTING THAT
WORKS - start high and adjust down
until the brushes stop to collect
(normally the middle adjustment hole).
DO NOT SET THE BRUSHES TOO
LOW - this will lead to scarifying and a
very untidy finish as well as shortening
brush life.
TO TIP CUTTINGS
See illustration below, left.
You can check the contents of the
grassbox through the clear cover (11).
When it is full, DISENGAGE THE PTO
and raise the collector to the transport
position.
Drive to your tipping area, reverse to
the pile, select neutral, then extend
and pull the tipping handle (12)
towards you. The cuttings will
discharge. If some cuttings are
reluctant to come out of the grassbox,
continue to tip the grass box as you
drive forward from the heap.
