Hayter H Series User Manual

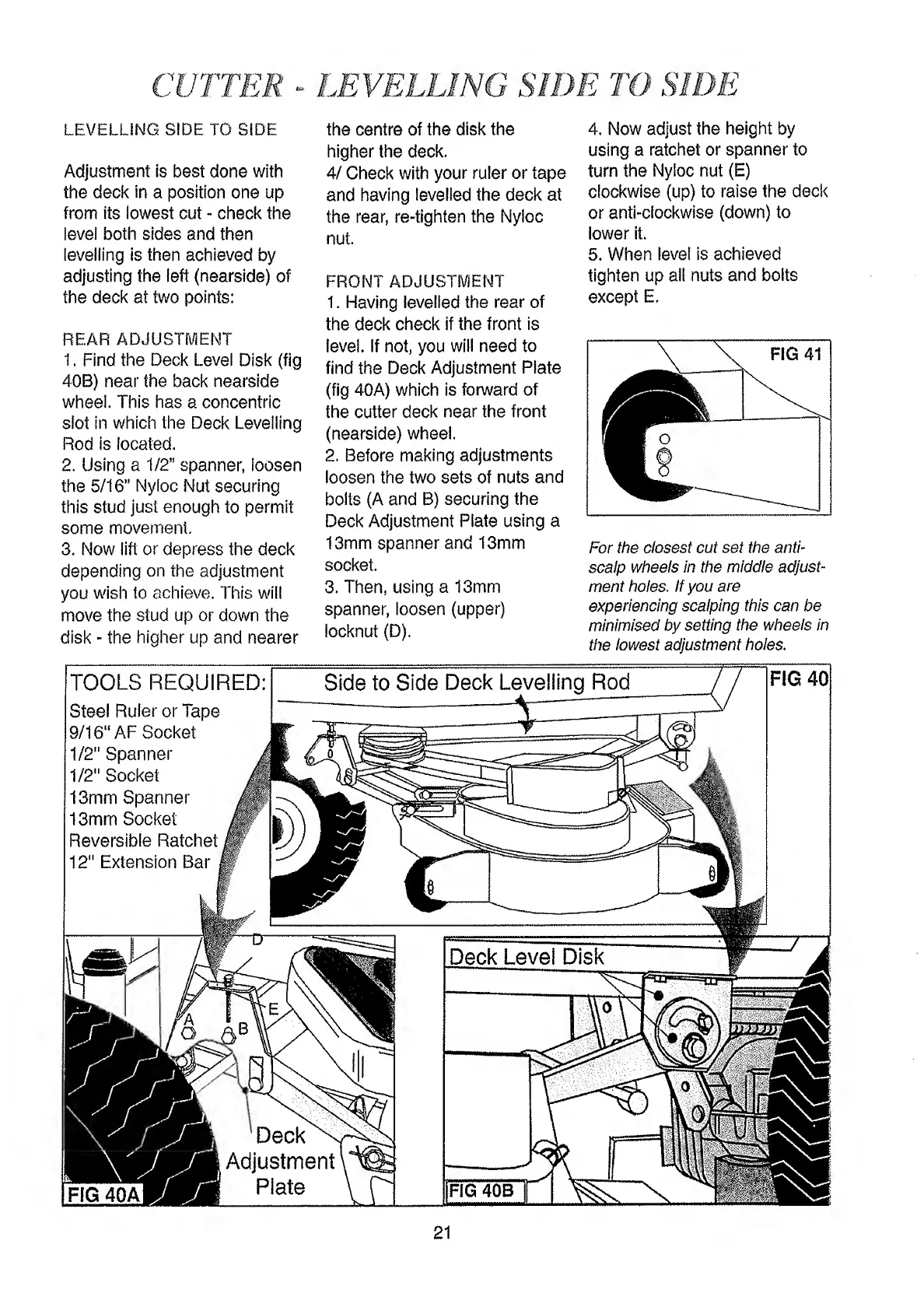

LEVELLING SIDE TO SIDE
Adjustment is best done with
the deck in a position one up
from its lowest cut - check the
level both sides and then
levelling is then achieved by
adjusting the left (nearside) of
the deck at two points:
REAR ADJUSTMENT
1. Find the Deck Level Disk (fig
40B) near the back nearside
wheel. This has a concentric
slot in which the Deck Levelling
Rod is located.
2. Using a 1/2” spanner, loosen
the 5/16” Nyloc Nut securing
this stud just enough to permit
some movement.
3. Now lift or depress the deck
depending on the adjustment
you wish to achieve. This will
move the stud up or down the
disk - the higher up and nearer
the centre of the disk the
higher the deck.
4/ Check with your ruler or tape
and having levelled the deck at
the rear, re-tighten the Nyloc
nut.
F-RONT ADJUSTMENT
1. Having levelled the rear of
the deck check if the front is
level. If not, you will need to
find the Deck Adjustment Plate
(fig 40A) which is forward of
the cutter deck near the front
(nearside) wheel.
2. Before making adjustments
loosen the two sets of nuts and
bolts (A and B) securing the
Deck Adjustment Plate using a
13mm spanner and 13mm
socket.
3. Then, using a 13mm
spanner, loosen (upper)
locknut (D).
4. Now adjust the height by
using a ratchet or spanner to
turn the Nyloc nut (E)
clockwise (up) to raise the deck
or anti-clockwise (down) to
lower it.
5. When level is achieved
tighten up all nuts and bolts
except E.
For the closest cut set the anti¬
scalp wheels in the middle adjust¬
ment holes. If you are
experiencing scalping this can be
minimised by setting the wheels in
the lowest adjustment holes.
21
