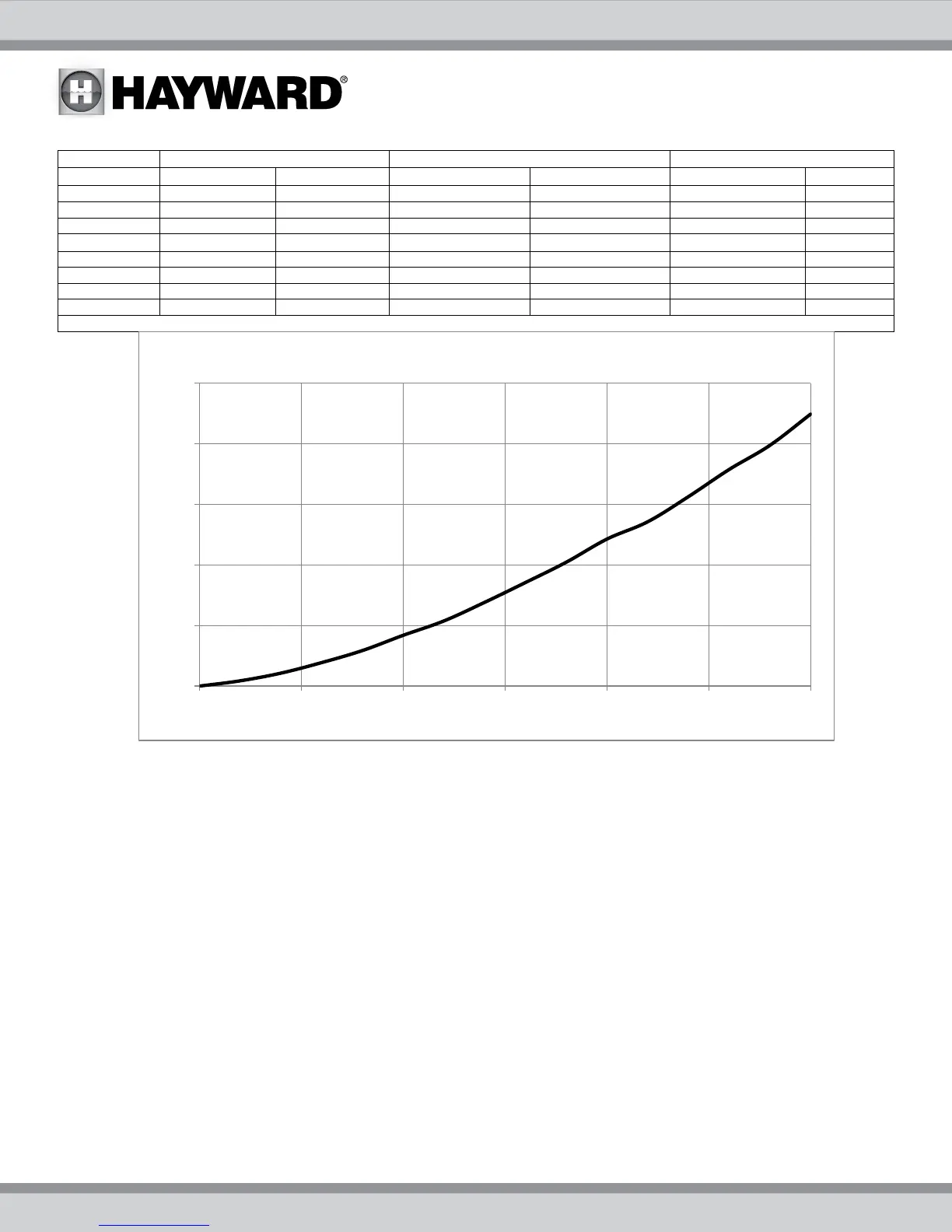

Hayward DE2420 - Page 5

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5
MODEL
EFFECTIVE FILTRATION RATE
DESIGN FLOW RATE
RECOMMENDED AMOUNT OF D.E.
FT
2
M
2
GPM
LPM
LBS
KGS
DE2420
24
2.2
48
182
3.0
1.4
DE3620
36
3.4
72
273
4.5
2.0
DE4820
48
4.5
96
363
6.0
2.7
DE6020
60
5.6
120
454
7.5
3.4
DE7220
72
6.7
144
545
9.0
4.0
DEP60
60
5.6
120
454
6.0
2.7
DEP80
80
7.4
150
568
8.0
3.6
DEP100
100
9.3
150
568
10.0
4.5
MAXIMUM WORKING PRESSURE FOR ALL MODELS 50 PSI (3.45 BAR)
0
5
10
15
20
25
0 25 50 75 100 125 150
Head loss in Feet of Water
Flow Rate in GPM
Head Loss
