8
Spa Low Speed
50%
Adjust the desired low speed for variable speed operation
Move to previous/next menu item
This setting will appear if “pool only” is not selected and variable speed filter pump is
enabled. This setting determines the speed of the pump during low speed spa operation.
This value can be set from “Lowest Speed” to 50% in 5% increments. 50% is default.
Pool High Speed
100%
Adjust the desired high speed for variable speed operation
Move to previous/next menu item
This setting will appear if “spa only” is not selected and variable speed filter pump is
enabled. This setting determines the speed of the pump during high speed pool or spillover
operation. This value can be set from 20% to “Highest Speed” in 5% increments. “Highest
Speed” is default.
Pool Low Speed
50%
Adjust the desired low speed for variable speed operation
Move to previous/next menu item
This setting will appear if “spa only” is not selected and variable speed filter pump is
enabled. This setting determines the speed of the pump during low speed pool or spillover
operation. This value can be set from “Lowest Speed” to 50% in 5% increments. 50% is
default.

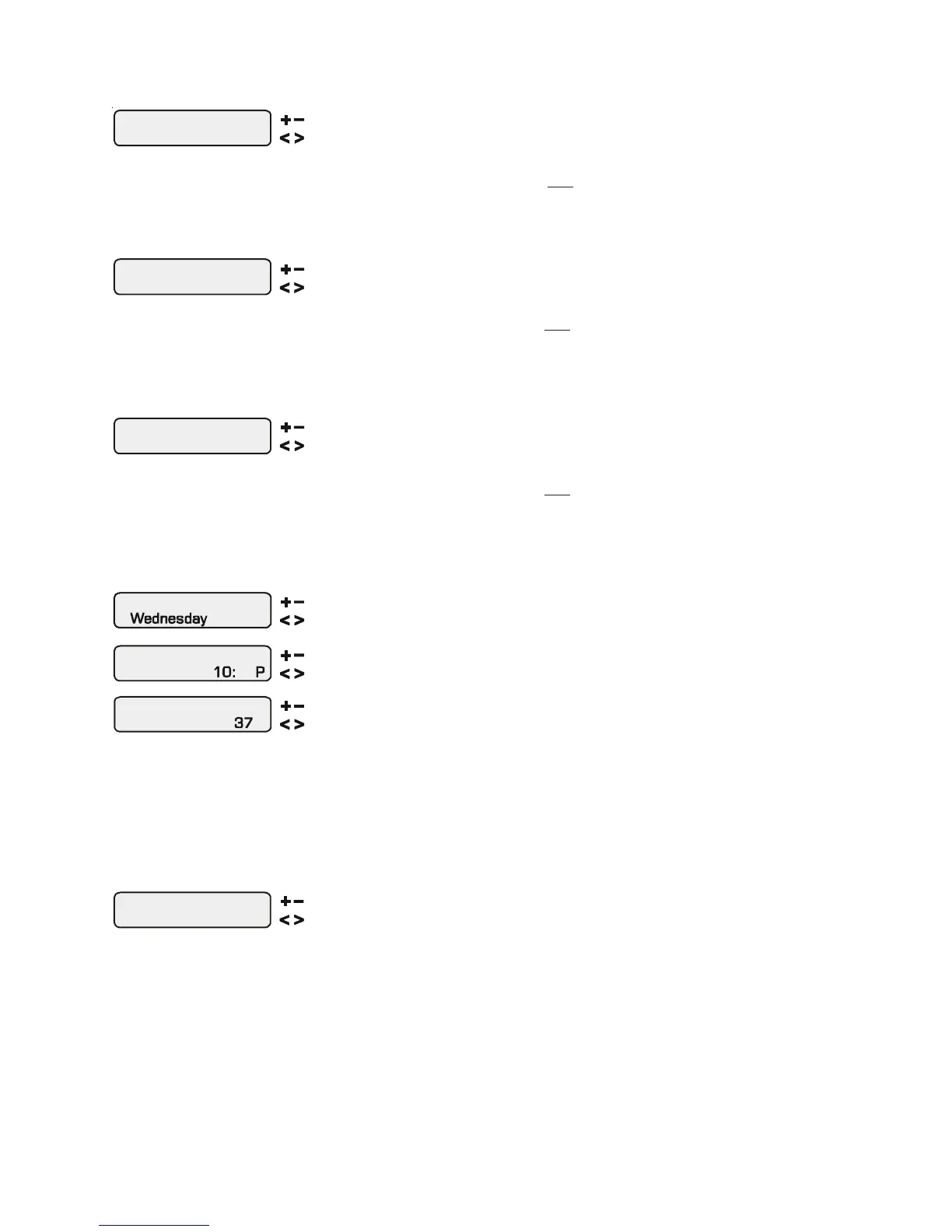

Set Day and Time
Wednesday 10:37P
Adjust the current day of the week
Move to hours setting
Set Day and Time
10:37P
Set Day and Time
Wednesday 37
Set Day and Time
Wednesday 10: P
Adjust the current hour (including AM/PM if applicable)
Adjust the current minute
Move to minutes setting
Move to previous/next menu item
Use this function to set the current day of the week and time. These values are used for all
the automatic timeclock functions of the ECOMMAND 4 and are also displayed as part of
the default menu.
The ECOMMAND 4 is designed to keep the clock running during power outages lasting less
than 7 days. If power has been off for longer than 7 days, then the time may have to be reset.
Display Light
On for 60 sec
Toggle between Always On and On for 60 sec.
Move to previous/next menu item
This function controls the backlight on the display. If the “60 seconds” option is selected,
then the backlight will automatically turn off 60 seconds after the last key is pressed and will
stay off until next time a key is pressed.
Note that the Display Light selection only applies to the display keypad that you are currently
using. Other display/keypads will not be affected. In other words, you need to individually
set this option for each display/keypad in the system.
19
Countdown Timer – the aux relay will turn on when the AUX button is pressed and then will
turn off automatically after a programmed time (see Timers Menu, Operation Manual). The
AUX button can also be used to turn the output off.
Low Speed of a 2-speed Filter Pump – the ECOMMAND 4 will operate the aux relay whenever
the low speed operation of the filter pump is required. It is very important that the “2-speed”
filter pump option be selected under the “Filter Config.” Menu for proper operation.
Timeclock – the aux relay will turn-on and turn-off at the times set for the aux1 timeclock in
the Timers Menu. The AUX button can also be used to turn the output on and off.
Solar – the aux relay operates a solar booster pump which will turn on when the filter pump
is running and solar heat is available and the water is less than the desired temperature
setting. It is important to note that “Solar Control” must be enabled in the “Solar Config.”
menu for proper operation to occur.
Super Chlorinate – if “Chlorinator” is enabled, this option allows the user to start a Super
Chlorinate cycle when the Aux button is pressed, rather than using the Settings Menu. Note
that only one button can be assigned to this function.
Aux1 Relay
This feature allows the user to select either “Standard” (default) or “Dimmer” type relay for
the Aux1 output. The optional AQL-DIM dimmer kit must be installed if “Dimmer” is desired.
When “Dimmer” is selected, and the Aux1 output is manually turned on, the “+” and “-”
buttons adjust the level from 20% to 100% (default). The level is saved for the next time the
aux1 output is turned from off to on.
Aux1 Interlock
If “Enabled”, this feature will override the function (Manual On/Off, Countdown Timer,
Timeclock), selected above and turn the aux1 off when: filter pump is off, first 3 minutes of
filter pump operation (allows the pump to prime and get water flowing), when the pool/spa
suction return valves are in any position other than “pool only”, or for the first 3 minutes
after solar turns on (allows air in the solar panels to be purged). Interlock is not available for
solar, low speed filter pump, super chlorinate or dimmer.
Aux1 Freeze Protection
This function protects the pool, plumbing, and equipment against freeze damage. If Freeze
Protection is enabled and the AIR temperature sensor falls below the selected freeze
temperature threshold, the ECOMMAND 4 will turn on the aux relay to circulate the water.
IMPORTANT: this only enables operation of the AUX output during freeze--see the “Filter
Pump Config.” menu to enable freeze protection for the main circulation system.
Aux1 Pump Speed
This is the speed of the pump when the Aux1 output is on. The choices are the Settings
Menu speed and a speed that is unique to the Aux1 output only. The default selection is
“Settings Menu”. This is the speed of the pump that has been selected in the Settings Menu
for normal filter operation. If an alternate speed is desired when the Aux1 output is on, push
“+” or “-” and select from “Lowest” to “Highest” in 5% increments.
To Next Page
